VSA - Hydraulic Boost Failure Compensation: Control

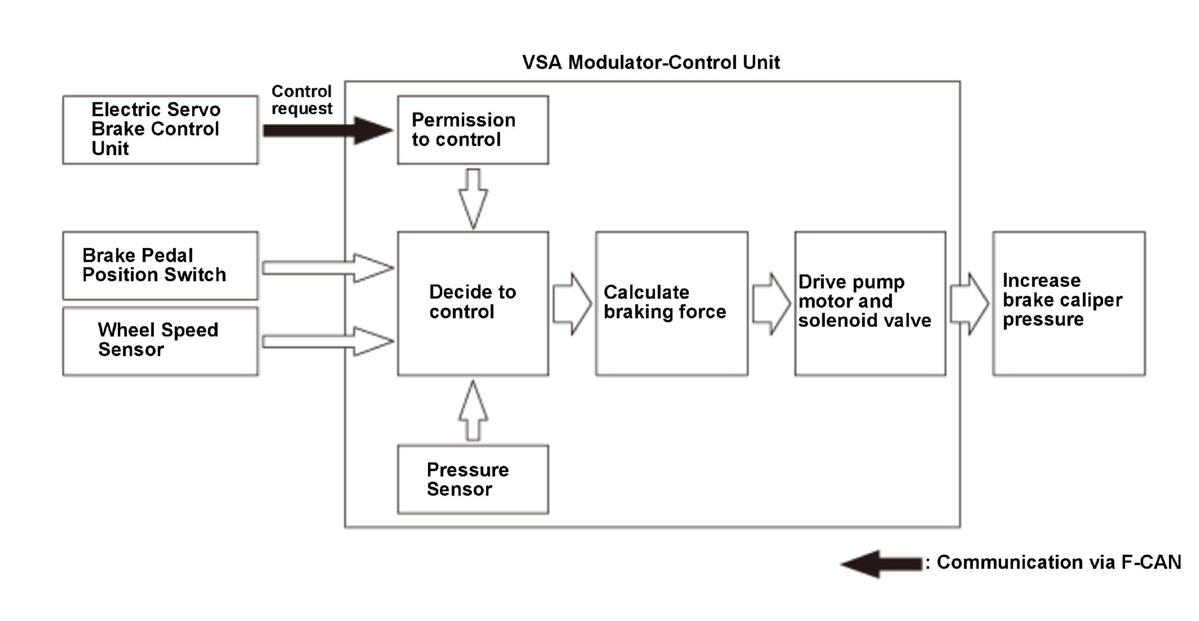

The VSA modulator-control unit calculates control quantity based on the signals of the brake pedal position switch, the wheel speed sensors, and the pressure sensor, then increases the caliper pressure by driving the pump motor and solenoid valves.
