Gauge Control Module Connector for Inputs and Outputs

Connector Index
Gauge Control Module Connector A (32P)
Gauge Control Module Connector B (12P)
Gauge Control Module Connector C (3P)

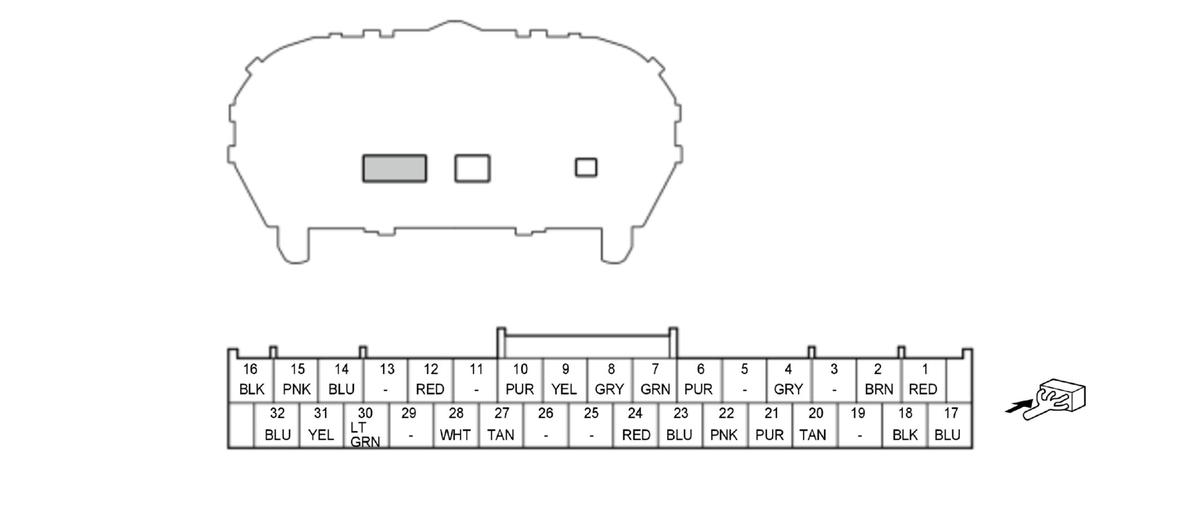

Gauge Control Module Connector A (32P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	+B BACK UP	+B power source	About battery voltage at all times
2	IG1 METER	IG1 power source	---
3	Not used	---	---
4	LIN (START SW)	Communication line	---
5	Not used	---	---
6 *	WASHER LEVEL SNSR	Detects WASHER LEVEL SNSR signal	With vehicle in ON mode and washer fluid level switch OFF: about battery voltage With vehicle in ON mode and washer fluid level switch ON: less than 0.2 V
7	BRAKE LEVEL SW	Detects BRAKE LEVEL SW signal	With vehicle in ON mode and brake fluid level switch OFF: about battery voltage With vehicle in ON mode and brake fluid level switch ON: less than 0.2 V
8	FUEL GAUGE+	Detects FUEL GAUGE+ signal	---
9	FUEL GAUGE-	Ground for fuel gauge sending unit	---
10	VSA OFF SW	Detects VSA OFF SW signal	With vehicle in ON mode and VSA off switch OFF: about battery voltage With vehicle in ON mode and VSA off switch ON: less than 0.2 V
11	Not used	---	---
12	SEL/RESET SW	Detects SEL/RESET SW signal	With vehicle in ON mode and TRIP switch OFF: about battery voltage With vehicle in ON mode and TRIP switch ON: less than 0.2 V
13	Not used	---	---

*: With washer fluid level switch

Terminal number	Terminal name	Description	Signal
14	SPORT MODE SW	Detects SPORT MODE SW signal	With vehicle in ON mode and sport mode switch OFF: about battery voltage With vehicle in ON mode and sport mode switch ON: less than 0.2 V
15	PARK LAMP	Detects PARK LAMP signal	With vehicle in ON mode and electric parking brake switch OFF: about battery voltage With vehicle in ON mode and electric parking brake switch ON: less than 0.2 V
16	GND	Ground for gauge control module	Less than 0.2 V at all times
17	ILL- (LED)	Ground for switches illumination	---
18	GND	Ground for gauge control module	Less than 0.2 V at all times
19	Not used	---	---
20	F-CAN C_H	Communication line	---
21	F-CAN C_L	Communication line	---
22	B-CAN_H	Communication line	---
23	B-CAN_L	Communication line	---
24	ECON SW	Detects ECON SW signal	With vehicle in ON mode and ECON switch OFF: about battery voltage With vehicle in ON mode and ECON switch ON: less than 0.2 V
25	Not used	---	---
26	Not used	---	---
27	ILL VOL SW -	Detects ILL VOL SW - signal	---
28	ILL VOL SW +	Detects ILL VOL SW + signal	---
29	Not used	---	---
30	CRUISE GND	Ground for ACC combination switch	Less than 0.2 V at all times
31	CRUISE SW	Detects CRUISE SW signal	With vehicle in ON mode: about 0.8-4.4 V (depending on ACC combination switch)
32	BRAKE HOLD	Detects BRAKE HOLD signal	---

*: With washer fluid level switch

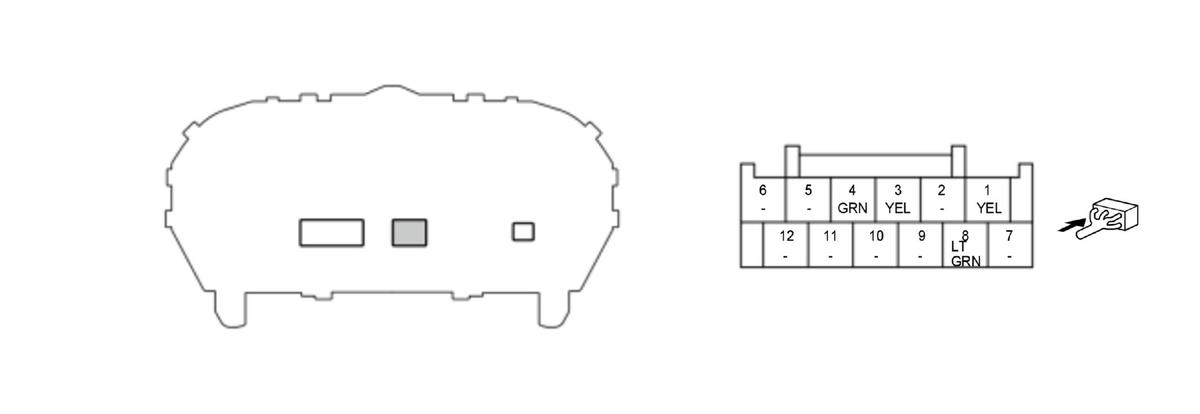

Gauge Control Module Connector B (12P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	DISTANCE SW	Detects DISTANCE SW signal	With vehicle in ON mode: about 0.8-3.0 V (depending on ACC combination switch)
2	Not used	---	---

Terminal number	Terminal name	Description	Signal
3	EV SW	Detects EV SW signal	With vehicle in ON mode and EV switch OFF: about battery voltage With vehicle in ON mode and EV switch ON: less than 0.2 V
4	CMBS OFF SW	Detects CMBS OFF SW signal	With vehicle in ON mode and safety support switch OFF: about battery voltage With vehicle in ON mode and safety support switch ON: less than 0.2 V
5	Not used	---	---
6	Not used	---	---
7	Not used	---	---
8	DMDMTRWK	Detects DMDMTRWK signal	---
9	Not used	---	---
10	Not used	---	---
11	Not used	---	---
12	Not used	---	---

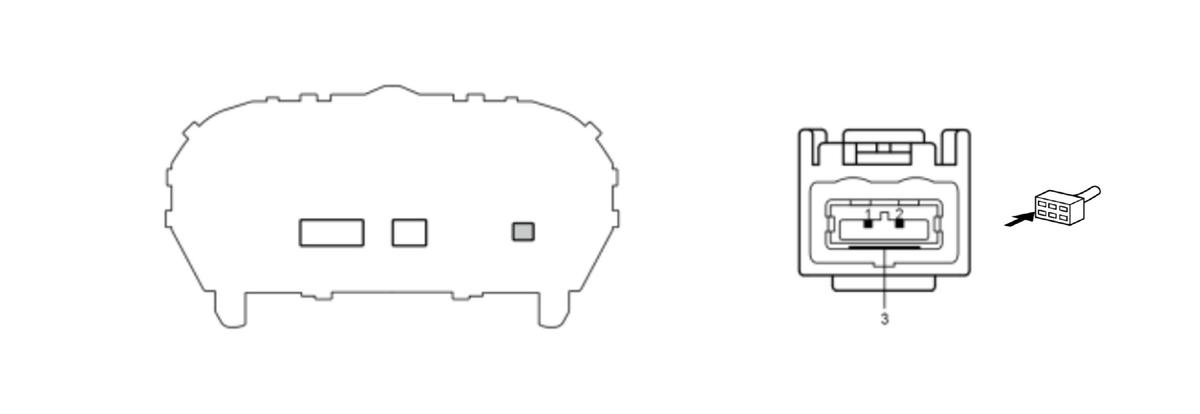

Gauge Control Module Connector C (3P) (female terminals) (with display audio type (8-inch screen))

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	LVDS2+	Communication line	---
2	LVDS2-	Communication line	---
3	LVDS2 SH	Shield for terminals No. 1 and No. 2	Less than 0.2 V at all times
