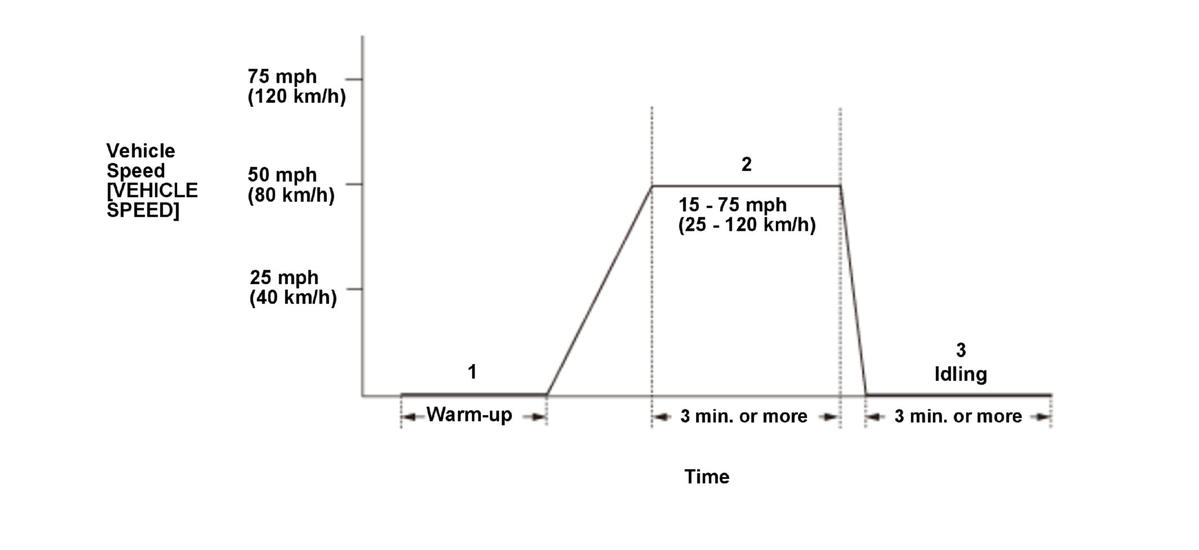

Operating Condition
- Enter the maintenance mode, then start the engine. Hold the engine speed [Engine Speed] at 3000 RPM without load (in P or N) until the radiator fan comes on, then let it idle.
- Drive the vehicle at a speed between 15 - 75 mph (25 - 120 km/h) for at least 3 minutes.
- Stop the vehicle, and let the engine idle for at least 3 minutes.
- When freeze data is stored, drive the vehicle under those conditions instead of Driving Pattern step 2 or 3.
- When you have difficulty duplicating the DTC because of road conditions and traffic situations, repeat the driving pattern several times.
- Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.
