Malfunction Threshold

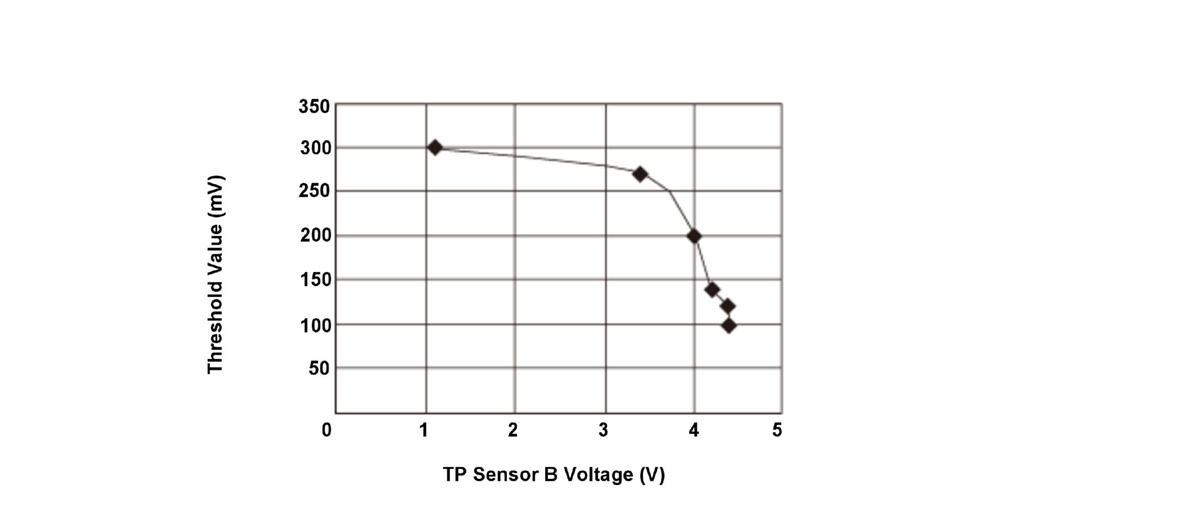

The deviation between 5 V and addition value of TP sensor A and TP sensor B exceeds the threshold value which depends on TP sensor B voltage for at least 200 milliseconds as shown in the following graph.

Courtesy of HONDA, U.S.A., INC.
