Malfunction Threshold

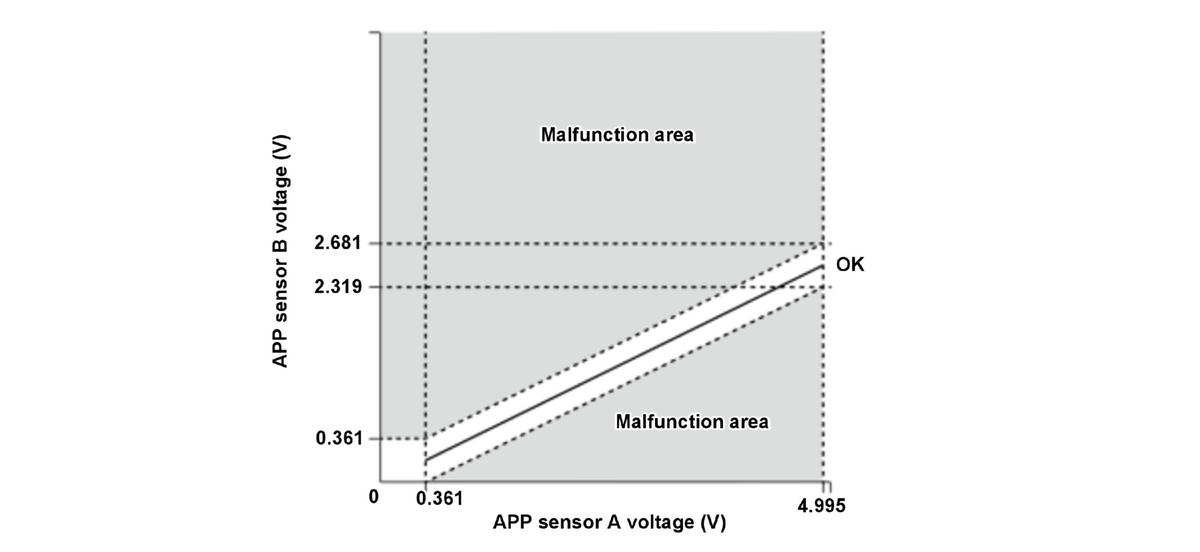

The APP sensor B voltage [APP Sensor B Voltage] is in the malfunction area based on the APP sensor A voltage [APP Sensor A Voltage] as shown in the figure below for at least 300 milliseconds.

[ ]: HDS Parameter

Courtesy of HONDA, U.S.A., INC.
