Motor Rotor Position Sensor Circuit Inspection (Generator Motor Control Module)
NOTE: Before testing, check for DTCs. If any DTCs are indicated, troubleshoot the indicated DTCs first.
Determine possible failure area (short in generator motor rotor position sensor circuit, others)
Turn the vehicle to the OFF (LOCK) mode.
-2. Do the 12 volt battery terminal disconnection procedure .
-3. Disconnect the following connector.
| PCU 33P connector |
At the PCU side, check for continuity between the following test points and body ground individually.
| Test condition | Vehicle OFF (LOCK) mode |
| PCU 33P connector: disconnected |
| Connector | Test circuit | Terminal |
| PCU 33P connector | S1G | No. 3 |
| S2G | No. 26 | |
| S3G | No. 14 | |
| S4G | No. 25 | |
| R1G | No. 4 | |
| R2G | No. 15 |
- If there is no continuity, the generator motor rotor position sensor circuit is ok. If there is no continuity, do the step 2.
-5. Disconnect the following connector.
| Motor rotor position sensor 12P connector |
Check for continuity between the following test points and body ground individually.
| Test condition | Vehicle OFF (LOCK) mode |
| Motor rotor position sensor 12P connector: disconnected | |
| PCU 33P connector: disconnected |
| Connector | Test circuit | Terminal |
| PCU 33P connector | S1G | No. 3 |
| S2G | No. 26 | |
| S3G | No. 14 | |
| S4G | No. 25 | |
| R1G | No. 4 | |
| R2G | No. 15 |
- If there is no continuity, faulty the transmission (e-CVT) assembly. If there is continuity, repair a short in the generator motor rotor position sensor circuit between the PCU and the generator motor rotor position sensor.
Open wire check (generator motor rotor position sensor circuit)
Disconnect the following connector.

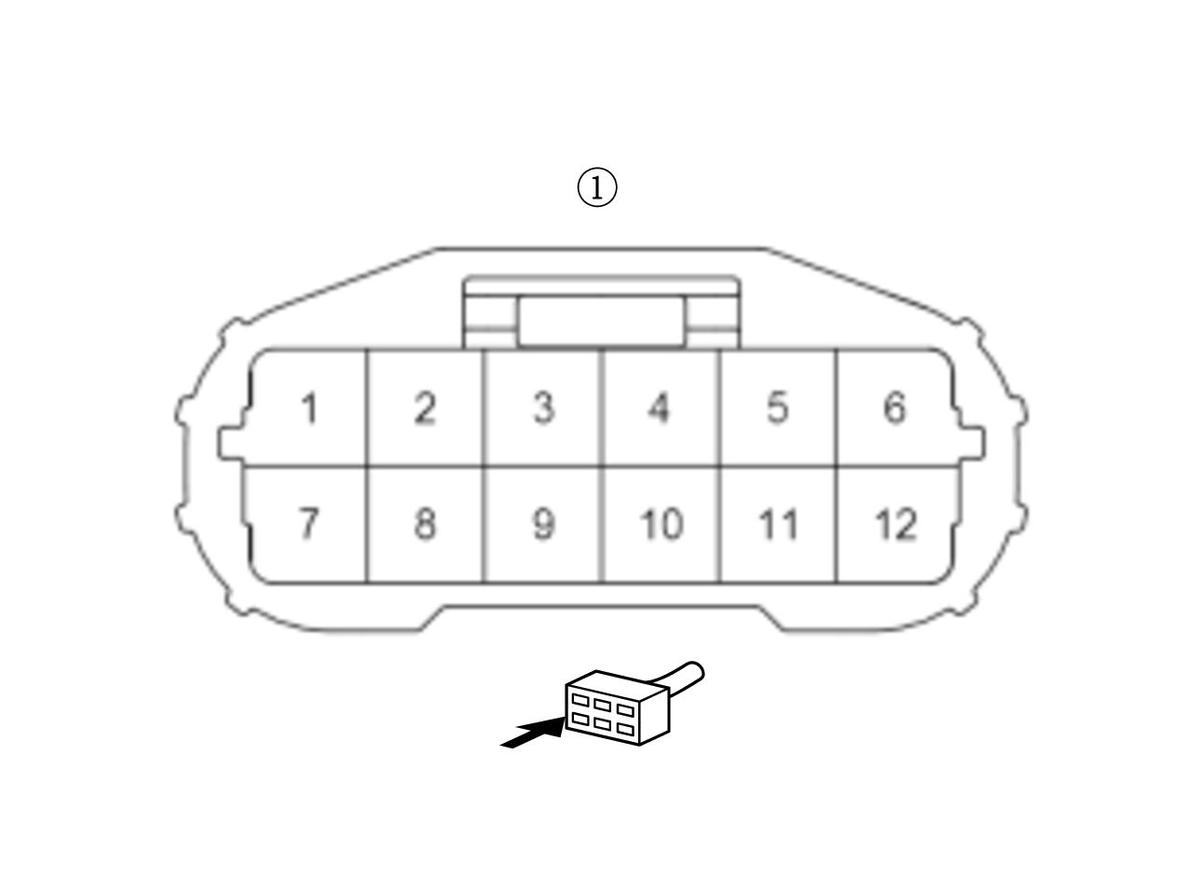

| Motor rotor position sensor 12P connector |
Check for continuity between the following terminals respectively.
| Test condition | Vehicle OFF (LOCK) mode |
| PCU 33P connector: disconnected | |
| Motor rotor position sensor 12P connector: disconnected |
S1G line
| Test point 1 | PCU 33P connector No. 3 |
| Test point 2 | Motor rotor position sensor 12P connector (female terminals) No. 3: |
S2G line
| Test point 1 | PCU 33P connector No. 26 |
| Test point 2 | Motor rotor position sensor 12P connector (female terminals) No. 2: |
S3G line
| Test point 1 | PCU 33P connector No. 14 |
| Test point 2 | Motor rotor position sensor 12P connector (female terminals) No. 9: |
S4G line
| Test point 1 | PCU 33P connector No. 25 |
| Test point 2 | Motor rotor position sensor 12P connector (female terminals) No. 8: |
R1G line
| Test point 1 | PCU 33P connector No. 4 |
| Test point 2 | Motor rotor position sensor 12P connector (female terminals) No. 1: |
R2G line
| Test point 1 | PCU 33P connector No. 15 |
| Test point 2 | Motor rotor position sensor 12P connector (female terminals) No. 7: |
- If there is continuity, the generator motor rotor position sensor circuit is ok. If there is no continuity, repair an open in the generator motor rotor position sensor circuit between the PCU and the generator motor rotor position sensor.
