System Warning/Indicator Index

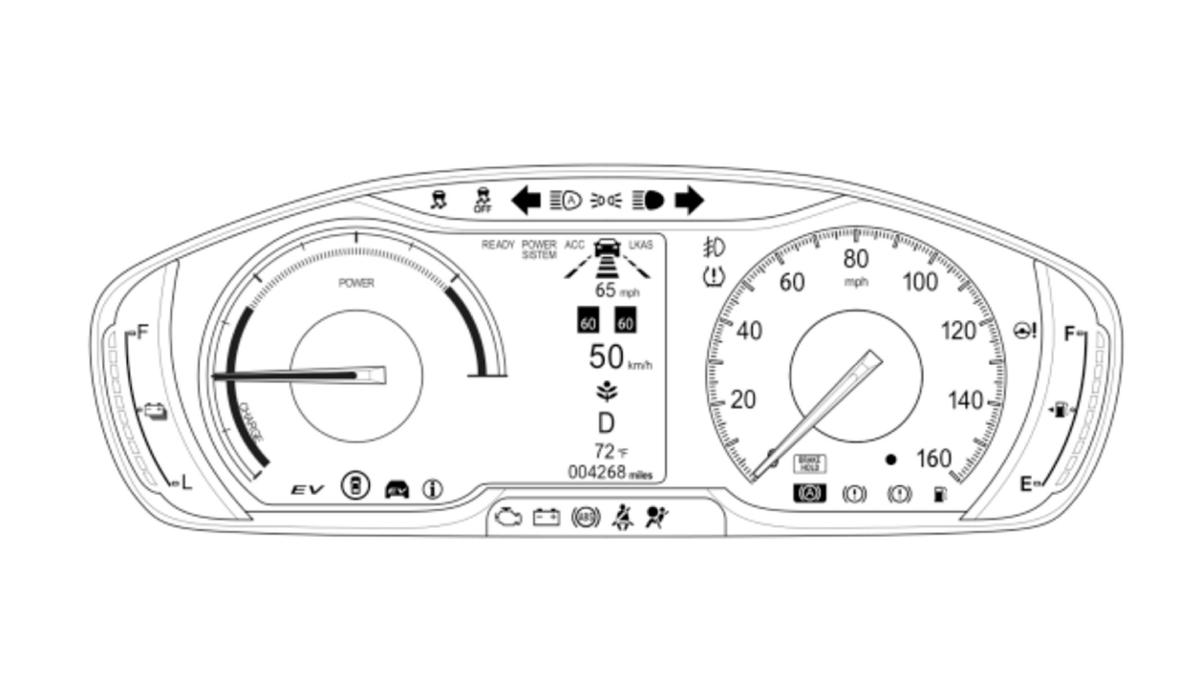

GHH384054Courtesy of HONDA, U.S.A., INC.

NOTE:

Indicator Indicator Name Fault Detection Unit HDS System Menu (DTC Check) Diagnostic Procedure
GHH384055Courtesy of HONDA, U.S.A., INC.
 SECURITY INDICATOR (Red) BODY CONTROL MODULE ONE-PUSH START Backup Control Unit System Information System Check

ONE-PUSH START Backup Control Unit System Information Status Log

ONE-PUSH START Keyless Access Control Unit System Information System Check 1

ONE-PUSH START Keyless Access Control Unit System Information System Check 2
Indicator Indicator Name Fault Detection Unit HDS System Menu (DTC Check) Diagnostic Procedure
GHH384068Courtesy of HONDA, U.S.A., INC.
 KEYLESSACCESSINDICATOR (Amber) BODY CONTROL MODULE ONE-PUSH START PCU DTCs

ONE-PUSH START Backup Control Unit DTCs

ONE-PUSH START Keyless Access Control Unit DTCs
GHH384075Courtesy of HONDA, U.S.A., INC.
 12 VOLTCHARGING SYSTEM INDICATOR (Red)
  • PCM
  • BATTERY CONDITION MONITOR MODULE
  • MOTOR CONTROL MODULE
 PGM-FI DTCs/Freeze Data

ELECTRICPOWERTRAIN DTCs/Freeze Data
GHH384078Courtesy of HONDA, U.S.A., INC.
 POWER SYSTEM INDICATOR (Red)
  • BATTERY CONDITION MONITOR MODULE
  • MOTOR CONTROL MODULE
 ELECTRICPOWERTRAIN DTCs/Freeze Data
GHH384080Courtesy of HONDA, U.S.A., INC.
 MALFUNCTION INDICATOR LAMP (MIL) (Amber) PCM PGM-FI DTCs/Freeze Data
GHH384082Courtesy of HONDA, U.S.A., INC.
 LOW OIL PRESSURE INDICATOR (Red) PCM PGM-FI DTCs/Freeze Data
GHH384084Courtesy of HONDA, U.S.A., INC.
 HIGH TEMPERATURE INDICATOR PCM PGM-FI DTCs/Freeze Data
Indicator Indicator Name Fault Detection Unit HDS System Menu (DTC Check) Diagnostic Procedure
GHH384086Courtesy of HONDA, U.S.A., INC.
 LOW FUEL INDICATOR (Amber)
  • PCM
  • GAUGE CONTROL MODULE
 PGM-FI DTCs/Freeze DataBODY ELECTRICAL DTCs
GHH384089Courtesy of HONDA, U.S.A., INC.
 EPS INDICATOR (Amber) EPS CONTROL UNIT EPS DTCs/Freeze Data
GHH384091Courtesy of HONDA, U.S.A., INC.
 SRS INDICATOR (Red) SRS UNIT SRS SRS/SWS/PUH DTCs
GHH384094Courtesy of HONDA, U.S.A., INC.
 VSA INDICATOR (Amber) VSA MODULATOR- CONTROL UNIT ABS/VSA DTCs
GHH384096Courtesy of HONDA, U.S.A., INC.
 VSA OFF INDICATOR (Amber) VSA MODULATOR- CONTROL UNIT ABS/VSA DTCs
GHH384098Courtesy of HONDA, U.S.A., INC.
 ABS INDICATOR (Amber) VSA MODULATOR- CONTROL UNIT ABS/VSA DTCs
GHH384100Courtesy of HONDA, U.S.A., INC.
 BRAKE SYSTEM INDICATOR (Red)
  • VSA MODULATOR- CONTROL UNIT
  • ELECTRIC SERVO BRAKE CONTROL UNIT
 ABS/VSA DTCs

Brake System Electric Servo Brake System DTCs/Freeze Date
GHH384104Courtesy of HONDA, U.S.A., INC.
Indicator Indicator Name Fault Detection Unit HDS System Menu (DTC Check) Diagnostic Procedure
GHH384105Courtesy of HONDA, U.S.A., INC.
 BRAKE SYSTEM INDICATOR (Amber)
  • VSA MODULATOR- CONTROL UNIT
  • ELECTRIC SERVO BRAKE CONTROL UNIT
  • MILLIMETER WAVE RADAR
  • MULTIPURPOSE CAMERA UNIT
  • PCM
 ABS/VSA DTCs

Brake System Electric Servo Brake System DTCs/Freeze Date

DRIVING SUPPORT Integrated Driver Support System DTCs

PGM-FI DTCs/Freeze Data
GHH384112Courtesy of HONDA, U.S.A., INC.
GHH384113Courtesy of HONDA, U.S.A., INC.
 LOW TIRE PRESSURE/TPMSINDICATOR (Amber) VSA MODULATOR- CONTROL UNIT ABS/VSA DTCs
GHH384115Courtesy of HONDA, U.S.A., INC.
 SHIFT POSITIONINDICATOR PCM AT DTCs/Freeze Data
GHH384117Courtesy of HONDA, U.S.A., INC.
 LKAS INDICATOR (Amber)
  • MILLIMETER WAVE RADAR
  • MULTIPURPOSE CAMERA UNIT
  • EPS CONTROL UNIT
 DRIVING SUPPORT Integrated Driver Support System DTCs

EPS DTCs/Freeze Data
Indicator Indicator Name Fault Detection Unit HDS System Menu (DTC Check) Diagnostic Procedure
GHH384121Courtesy of HONDA, U.S.A., INC.
 ACC INDICATOR (Amber)
  • MILLIMETER WAVE RADAR
  • MULTIPURPOSE CAMERA UNIT
 DRIVING SUPPORT Integrated Driver Support System DTCs
GHH384124Courtesy of HONDA, U.S.A., INC.
 SAFETY SUPPORTINDICATOR (Amber)
  • MILLIMETER WAVE RADAR
  • MULTIPURPOSE CAMERA UNIT
  • LEFT SIDE BSI RADAR UNIT
  • RIGHT SIDE BSI RADAR UNIT
 DRIVING SUPPORT Integrated Driver Support System DTCs

DRIVING SUPPORT Blind Spot Information/Cross Traffic Monitor DTCs
GHH384129Courtesy of HONDA, U.S.A., INC.
 AUTO HIGH-BEAM INDICATOR (Amber) MULTIPURPOSECAMERA UNIT DRIVING SUPPORT Integrated Driver Support System DTCs
GHH384132Courtesy of HONDA, U.S.A., INC.
 LIGHT CONTROLINDICATOR BODY CONTROL MODULE BODY ELECTRICAL Lighting DTCs
GHH384135Courtesy of HONDA, U.S.A., INC.
 ACOUSTIC VEHICLE ALERTING INDICATOR ACOUSTIC VEHICLE ALERTING CONTROL UNIT BODY ELECTRICAL Acoustic vehicle alerting DTCs
