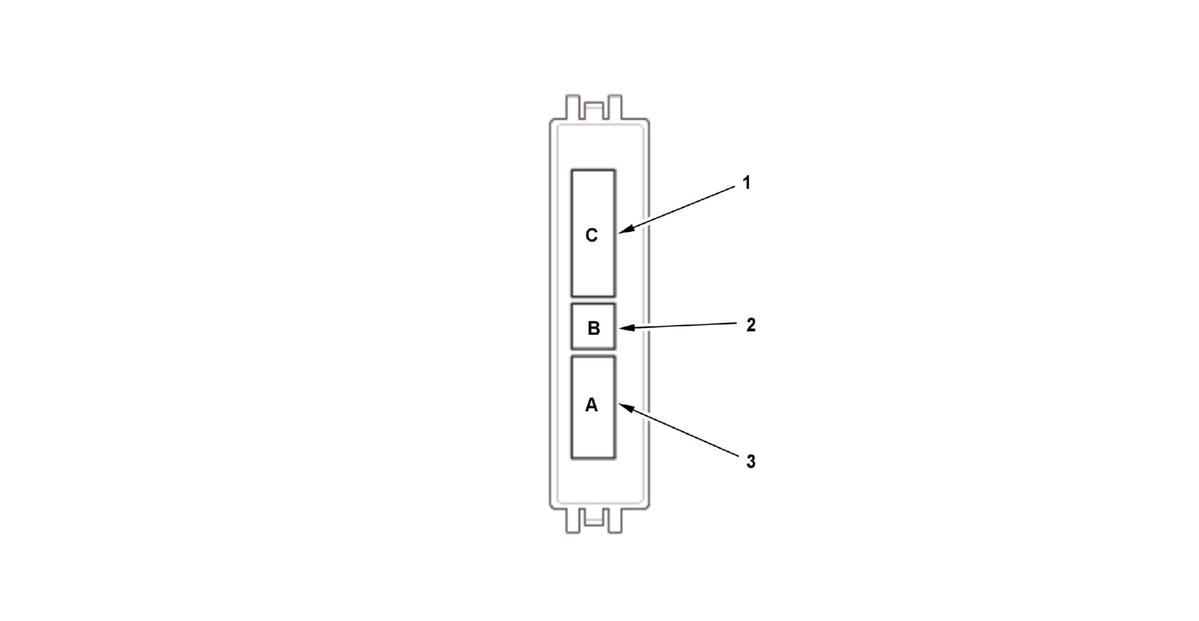

Under-Hood Fuse/Relay Box (Relay Circuit Board Part)
Courtesy of HONDA, U.S.A., INC. Under-Hood Fuse/Relay Box (Relay Circuit Board Part) Legend
| Socket |
Ref |
Terminal |
Connects to |
Notes |
| A |
3 |
8 |
Engine compartment wire harness |
|
| B |
2 |
6 |
Engine compartment wire harness |
|
| C |
1 |
18 |
Engine compartment wire harness |
|
