Gear Unit Control System Circuit Diagram

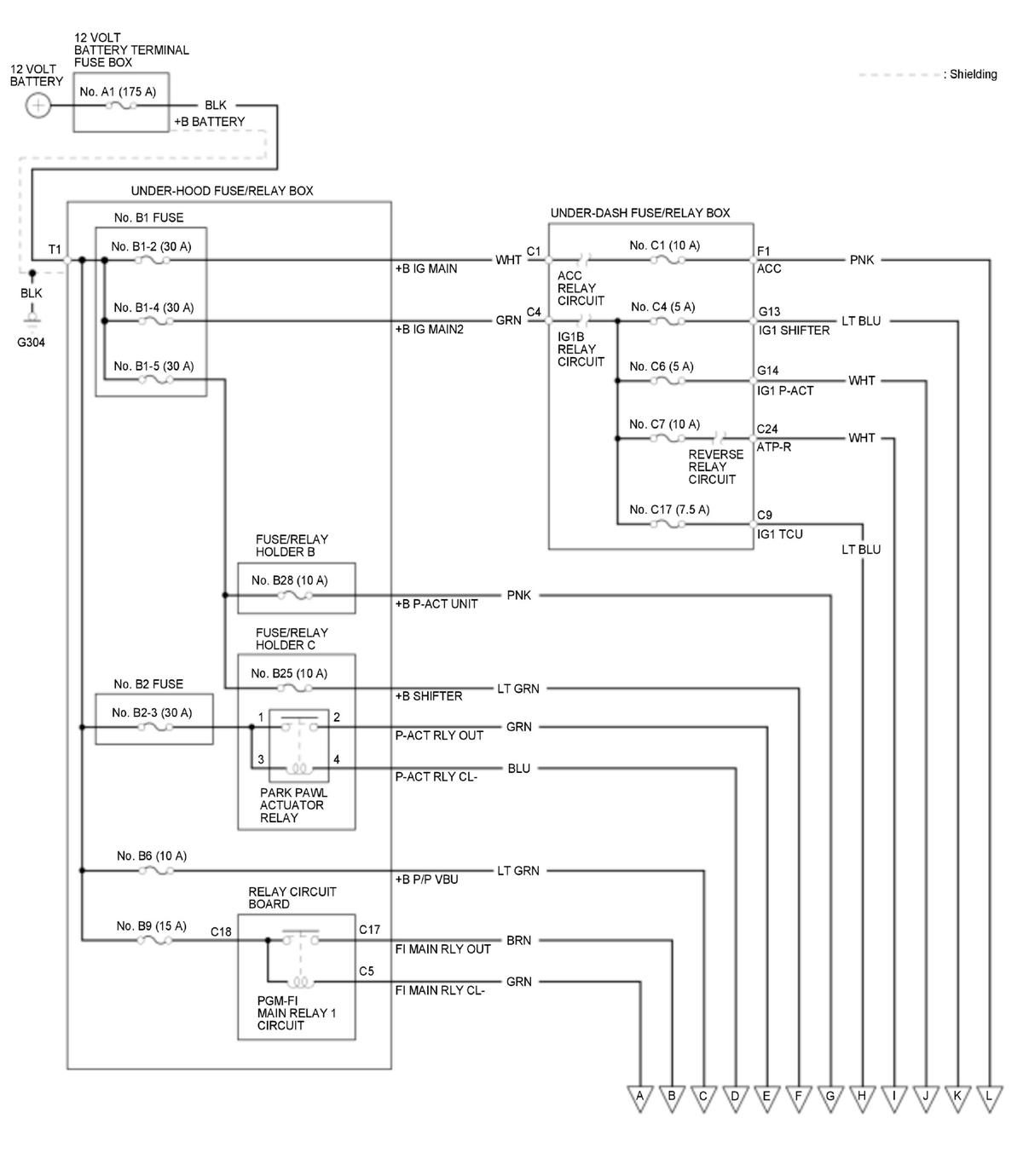

GHH382449

Courtesy of HONDA, U.S.A., INC.

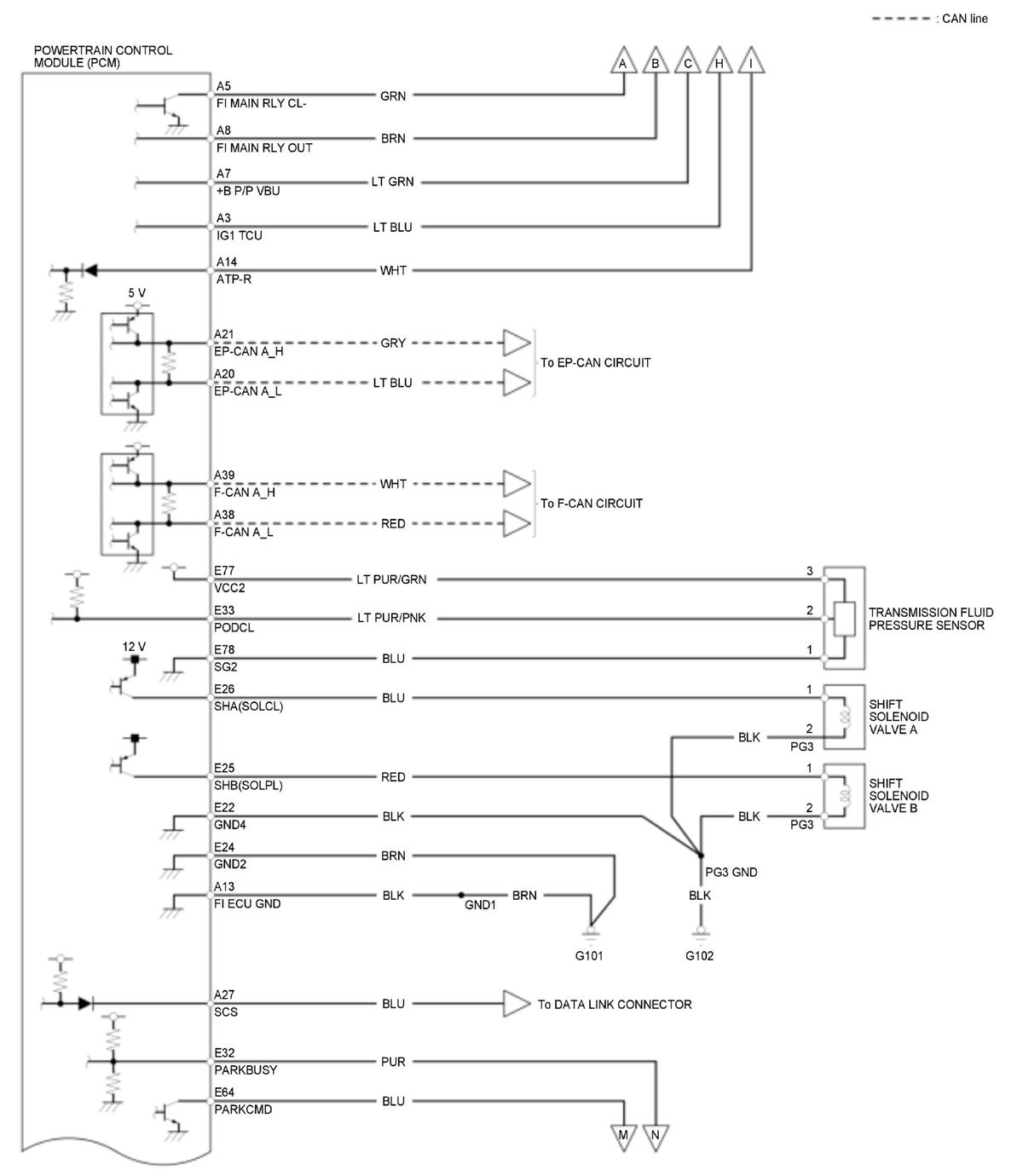

GHH382450

Courtesy of HONDA, U.S.A., INC.

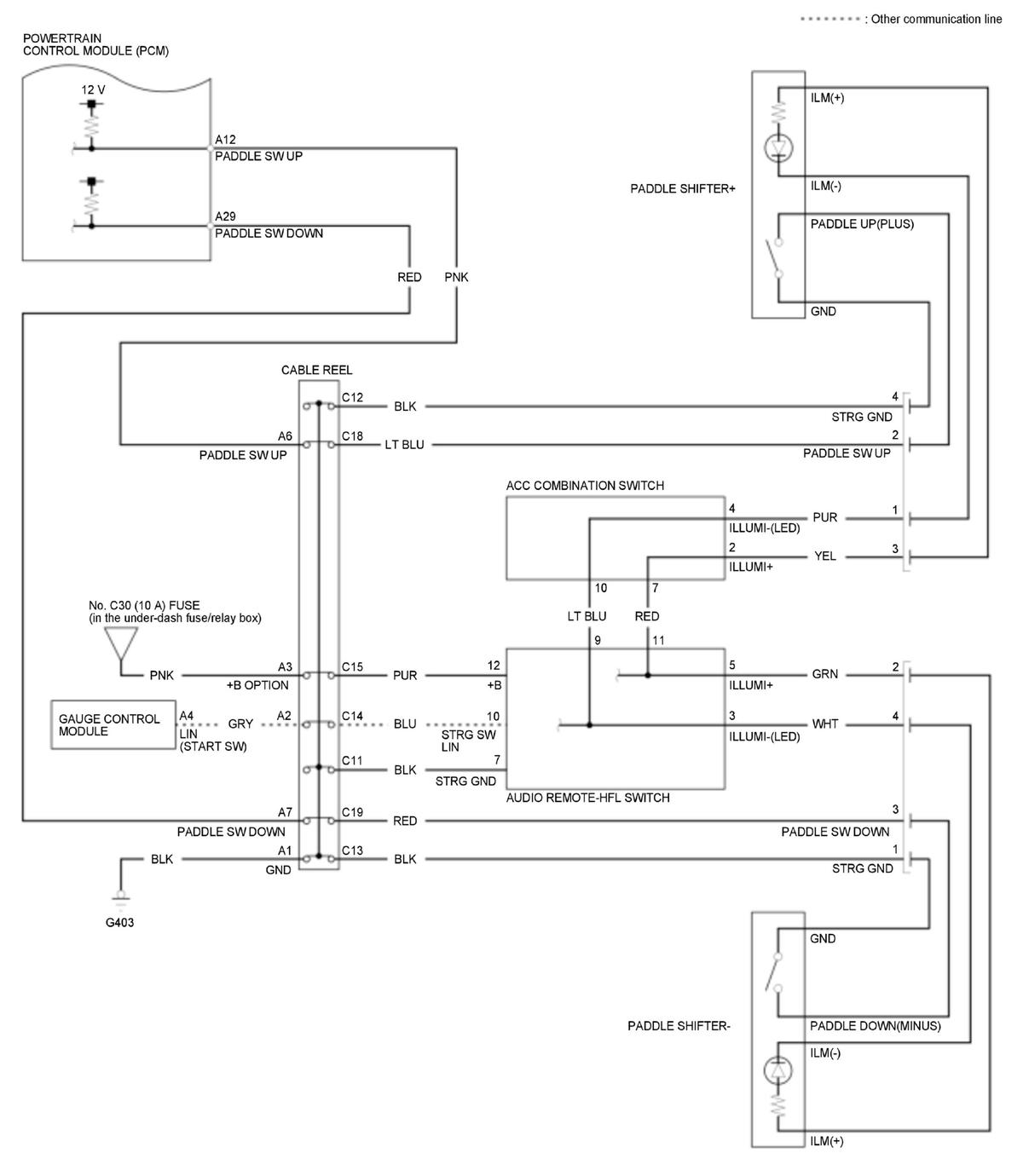

GHH382451

Courtesy of HONDA, U.S.A., INC.

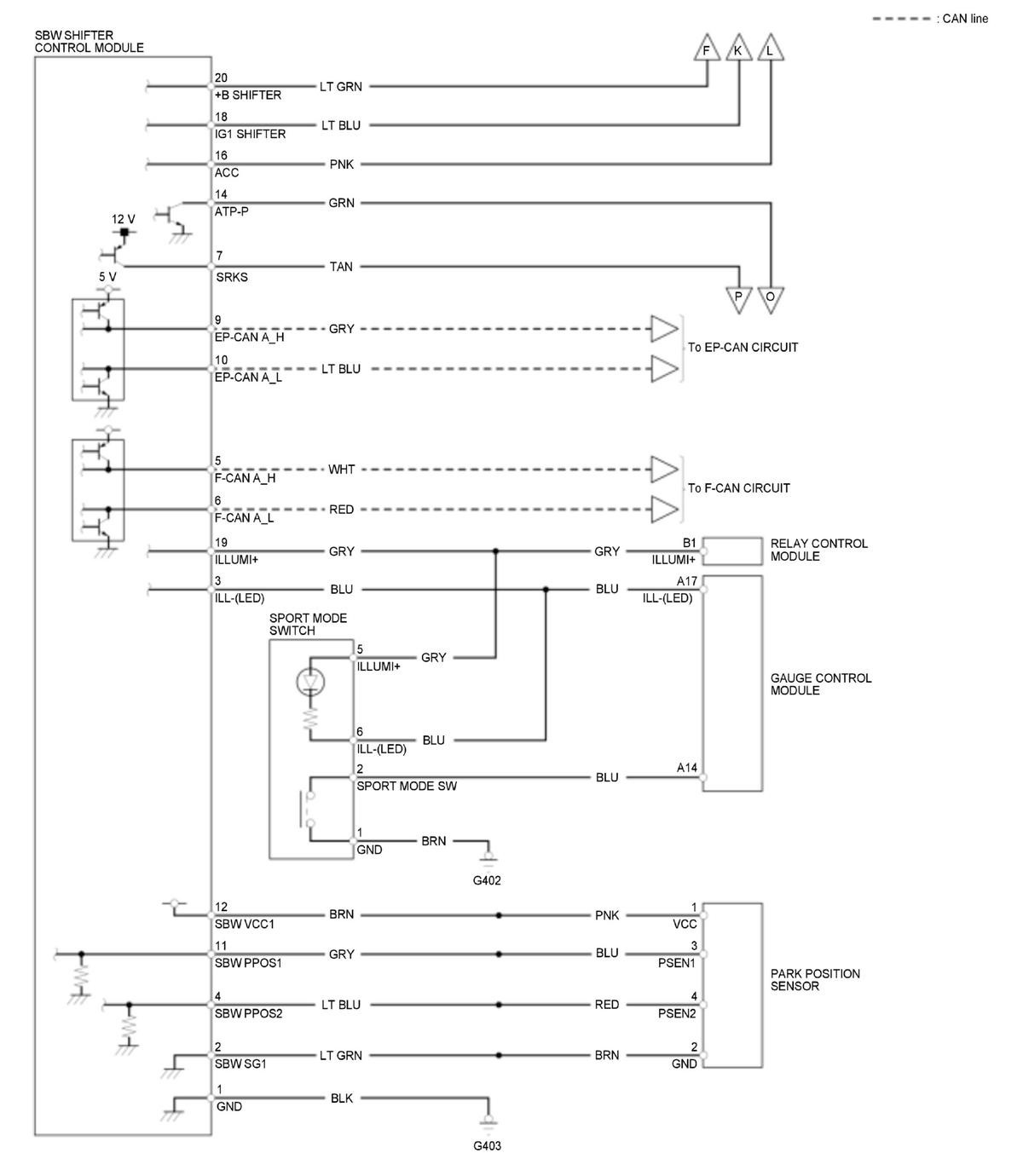

GHH382452

Courtesy of HONDA, U.S.A., INC.

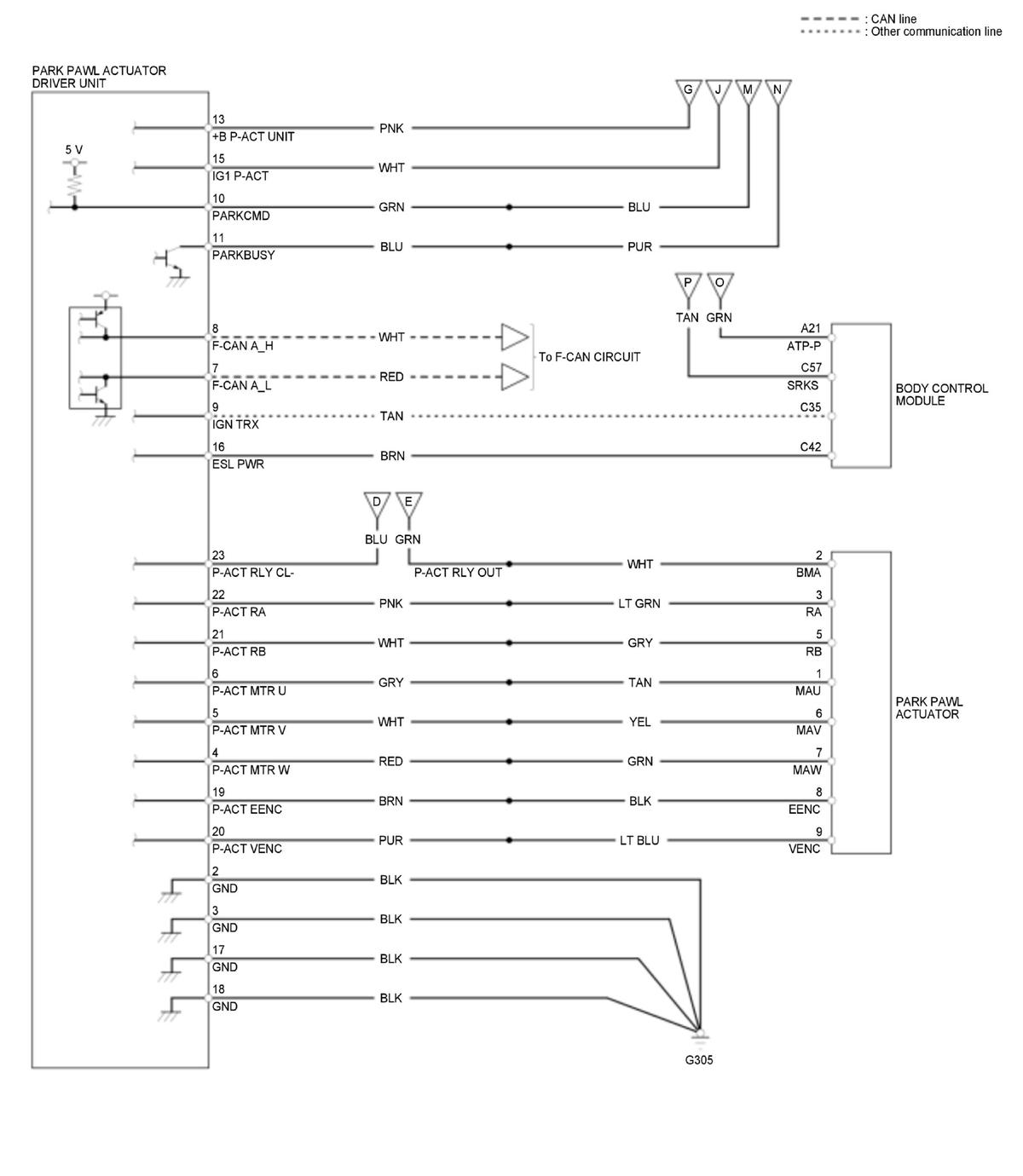

GHH382453

Courtesy of HONDA, U.S.A., INC.
