Automatic Transaxle - Service, Testing & Troubleshooting
›
Component Location Index
›

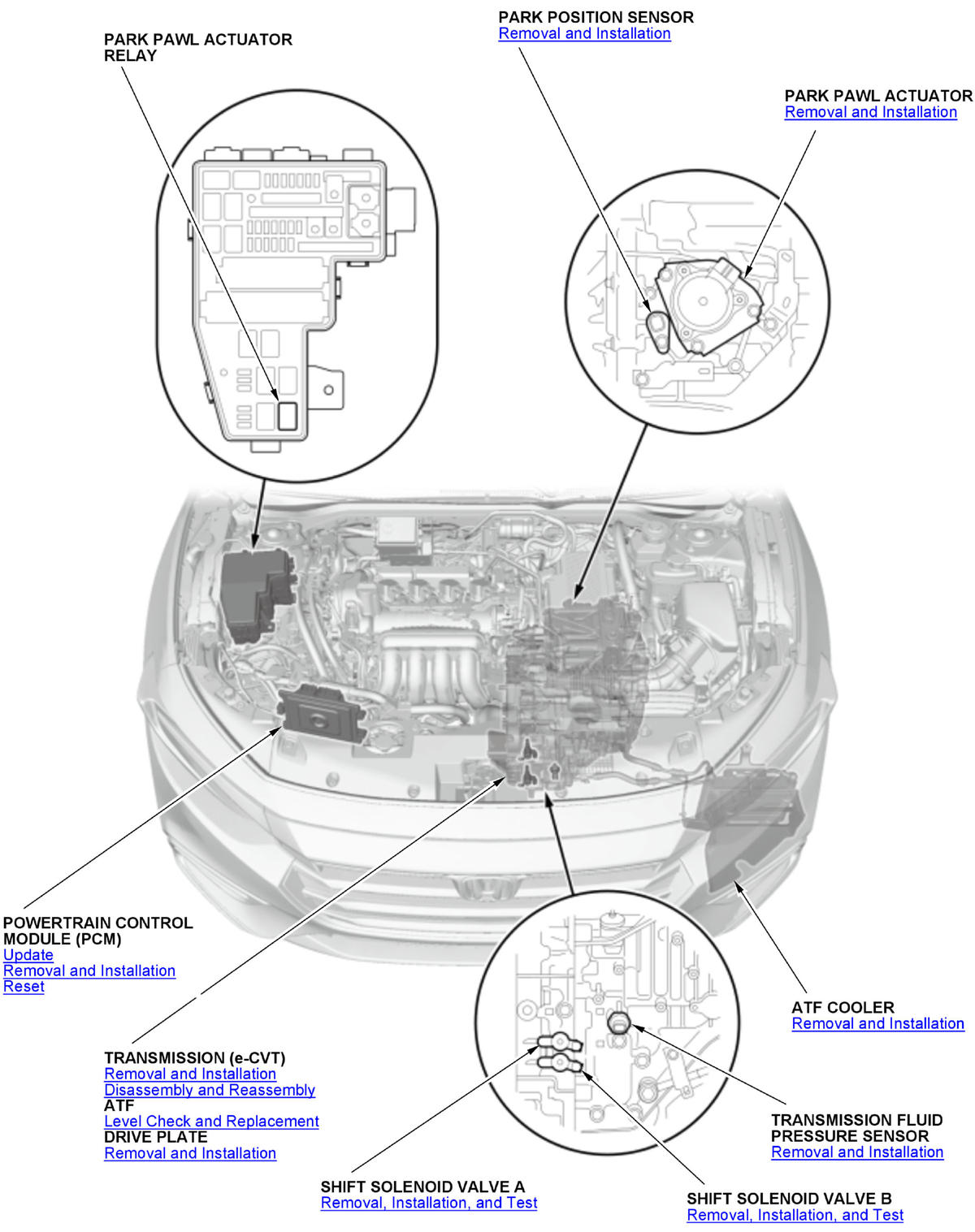

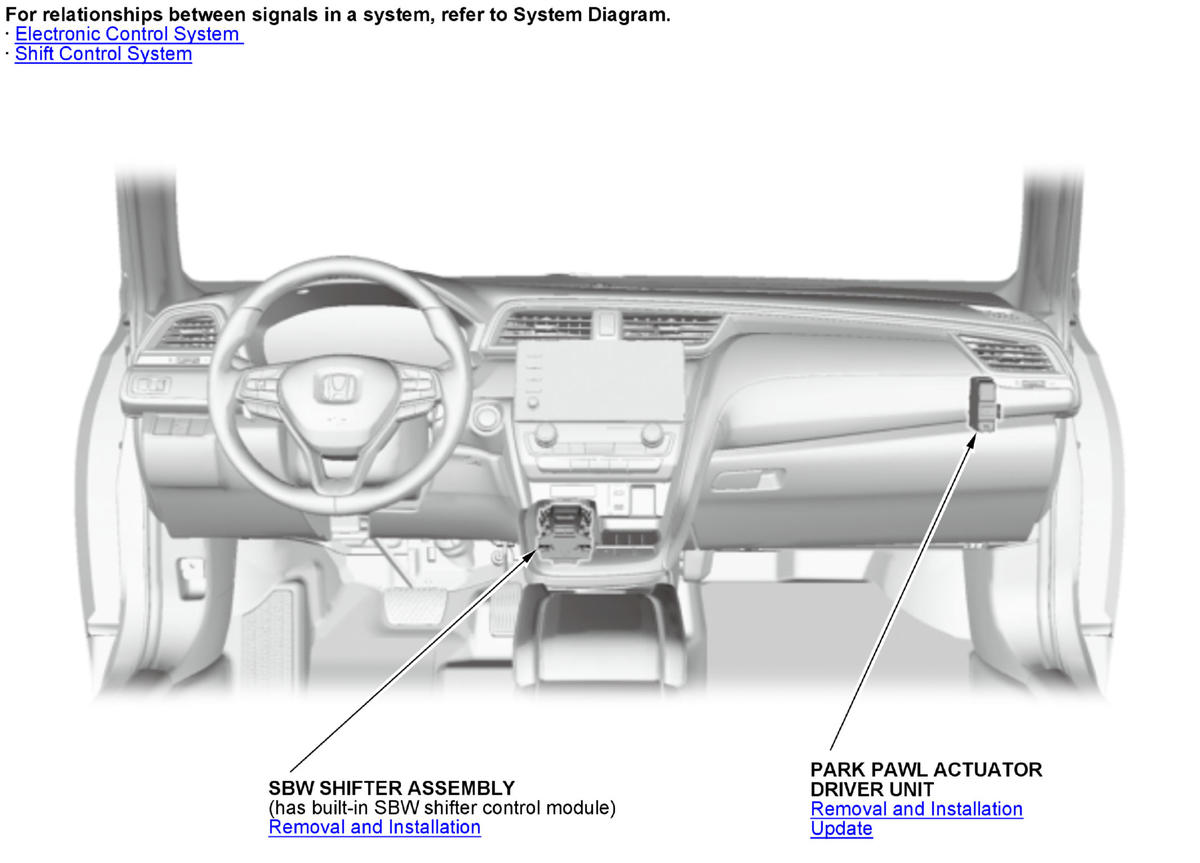

Gear Unit Control System Component Location Index
Gear Unit Control System Component Location Index
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
