VSA Off Switch Removal, Installation and Test: Test

VSA off switch 5P connector type

Courtesy of HONDA, U.S.A., INC.

VSA off switch 5P connector type (VSA/safety support switch type)

Courtesy of HONDA, U.S.A., INC.

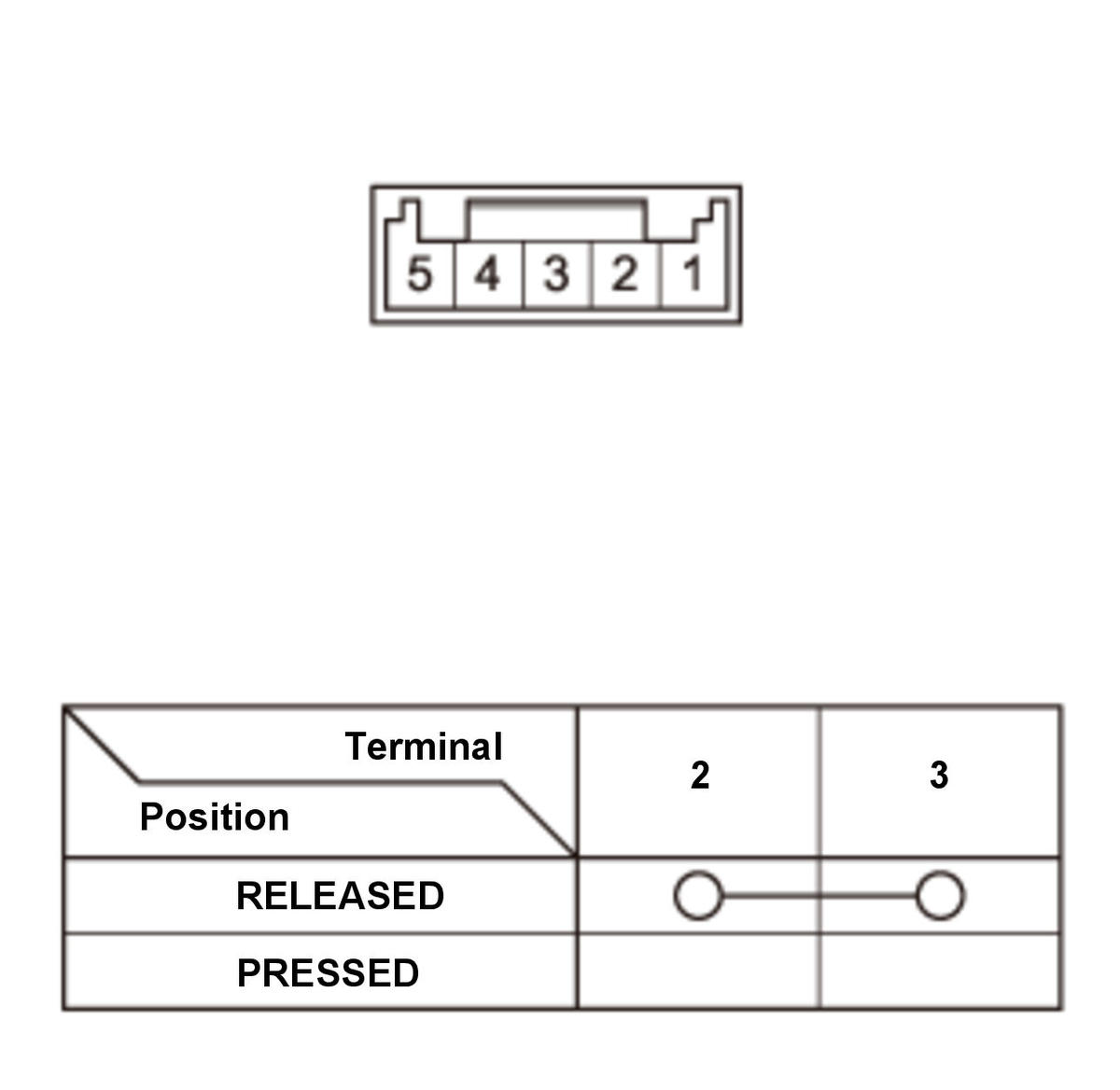

Switch Internal Continuity Check:

1. On the switch side, check for continuity between the connector terminal (male terminals) in each switch position according to the table.

2. If the switch does not works as described in the table, replace the switch.

VSA off switch 5P connector type

Courtesy of HONDA, U.S.A., INC.

VSA off switch 5P connector type (VSA/safety support switch type)

Courtesy of HONDA, U.S.A., INC.

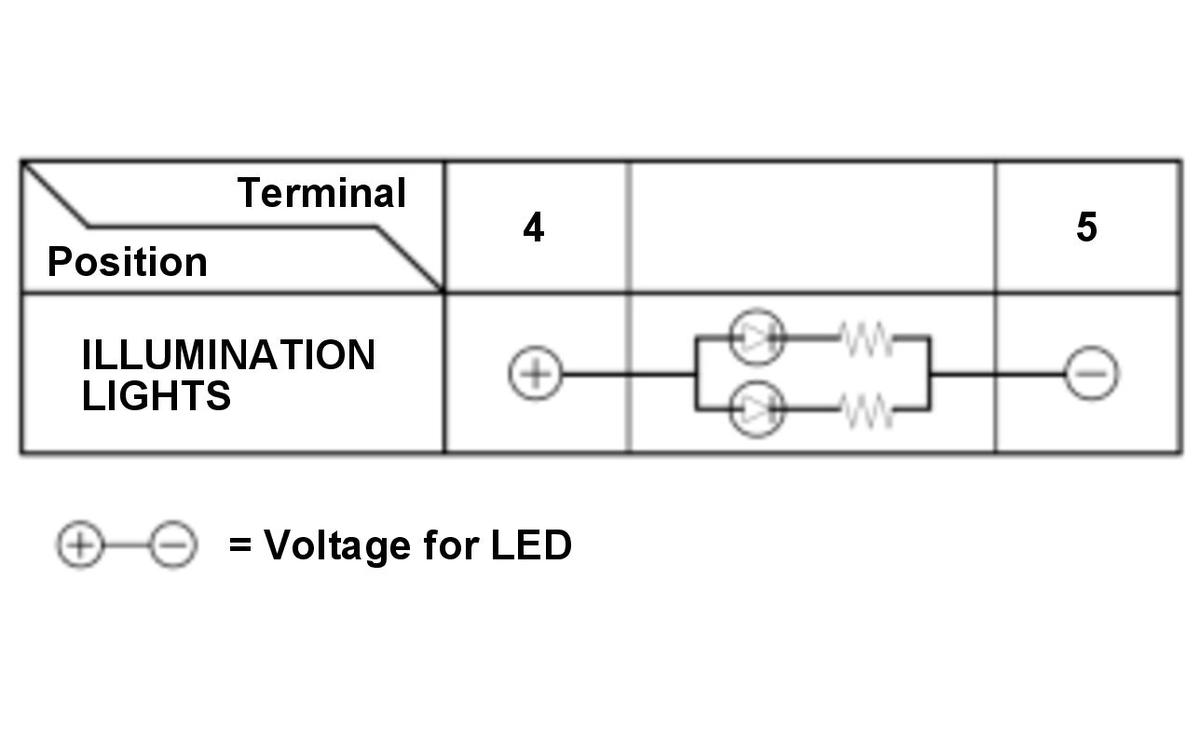

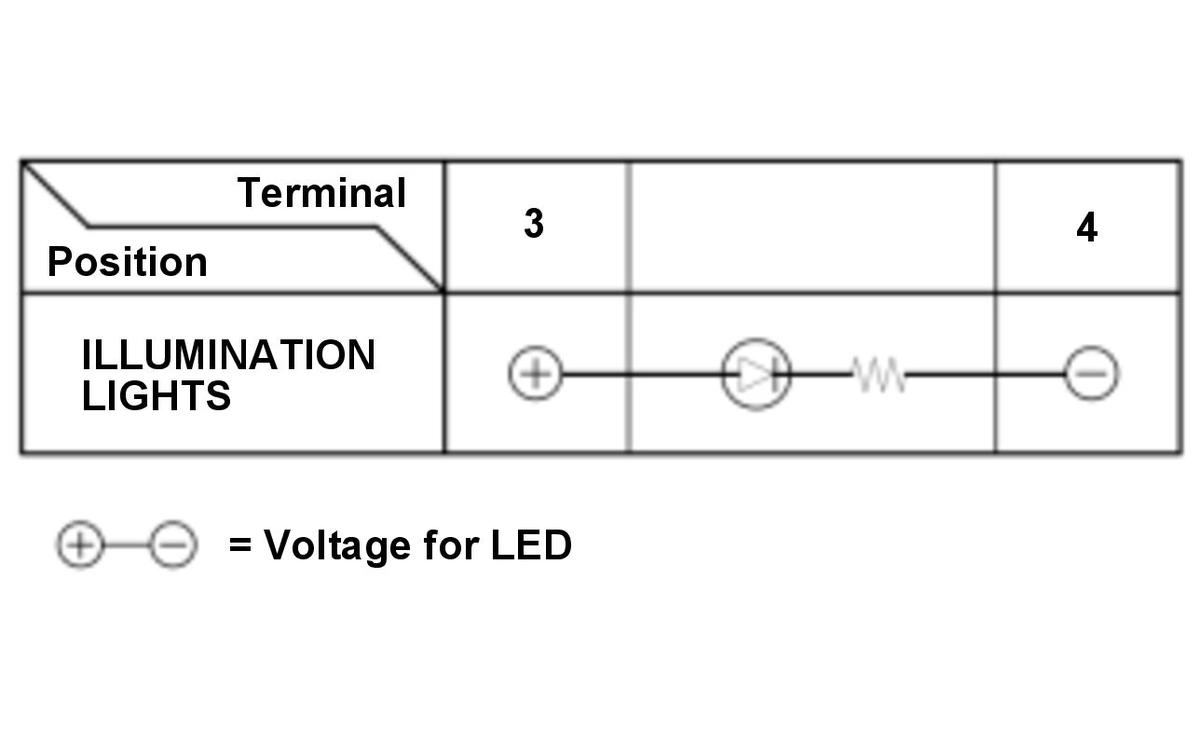

Switch Illumination Circuit Check:

1. On the switch side, check the LED for illumination by applying power and ground to the terminals according to the table.

NOTE:  Important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

2. If the result is not as specified, replace the switch.
