Power Window Motor Test: Test: Rear

Courtesy of HONDA, U.S.A., INC.

Left and right side  Courtesy of HONDA, U.S.A., INC.

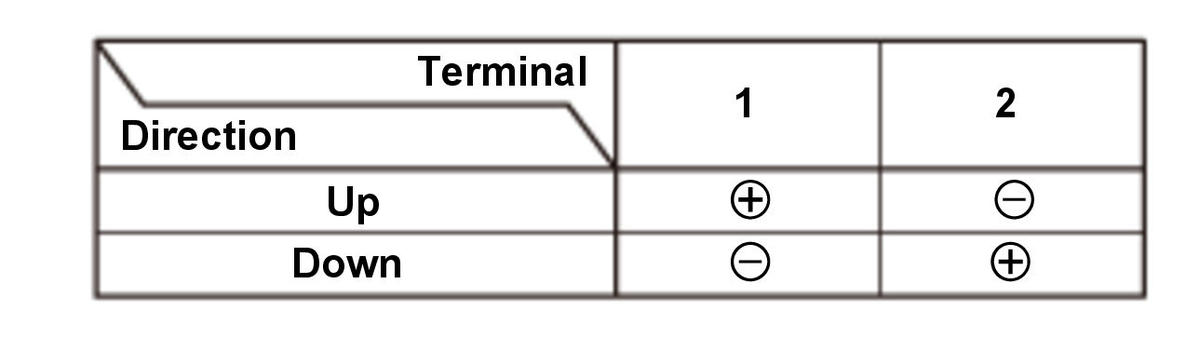

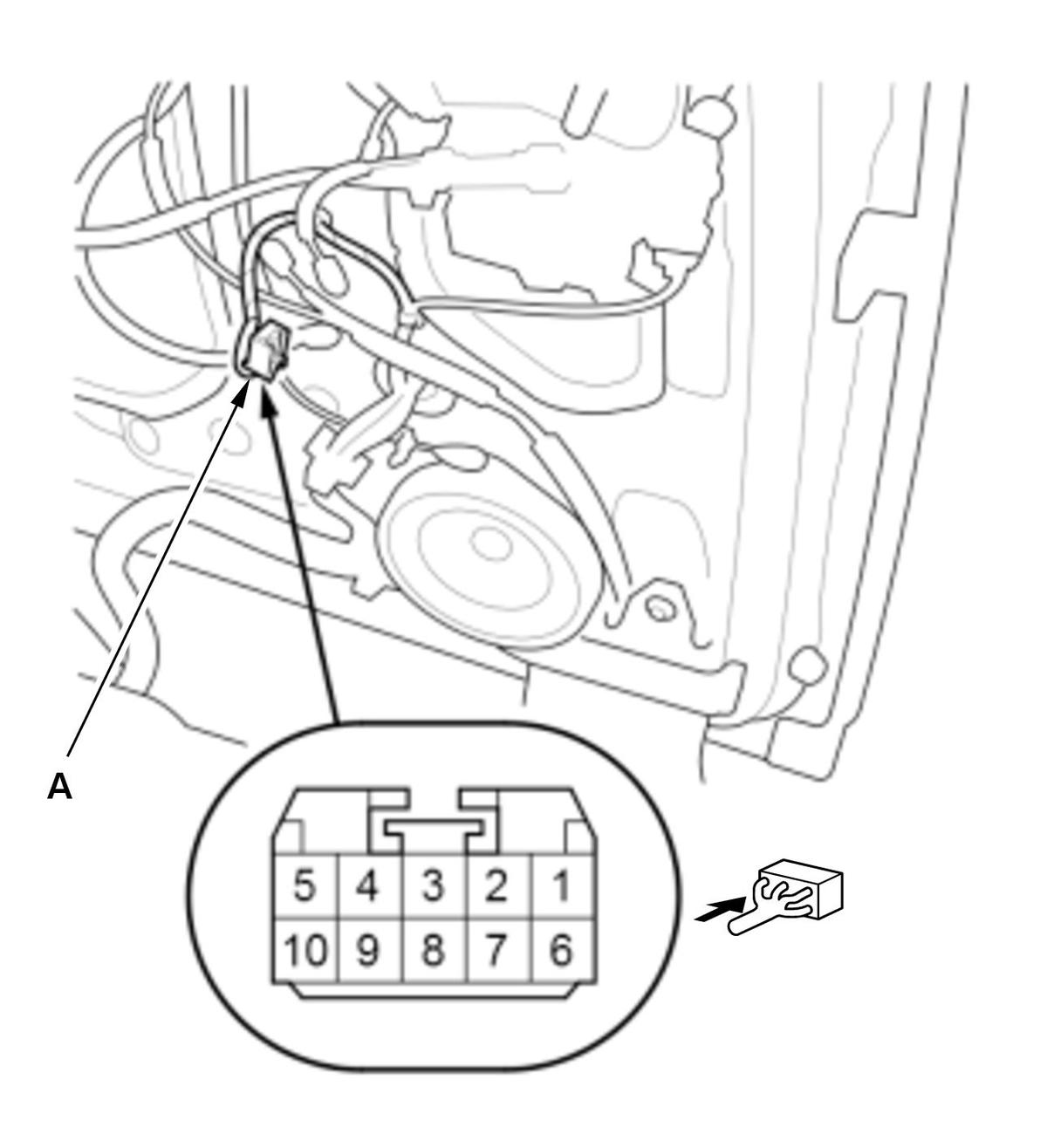

1. Test the motor (A) by connecting 12 volt battery power and ground according to the table. When the motor stops running, disconnect 12 volt battery power immediately.

2. If the motor does not run or fails to run smoothly, remove the sliding door regulator , go to step 3.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

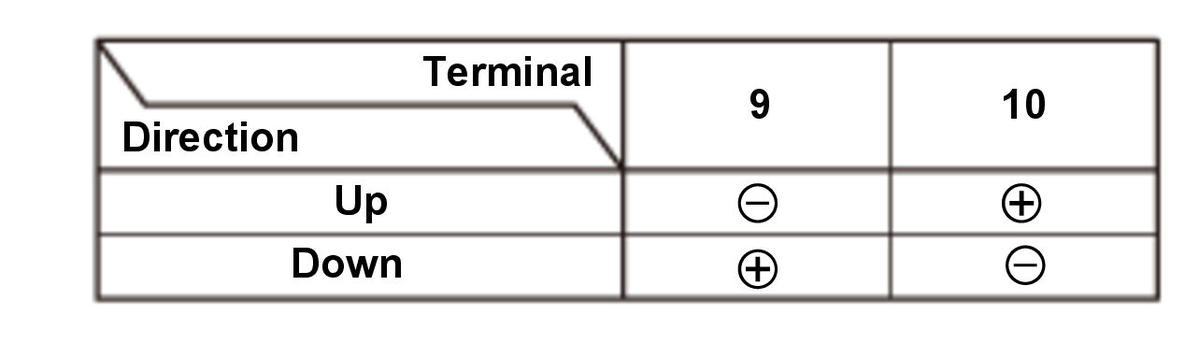

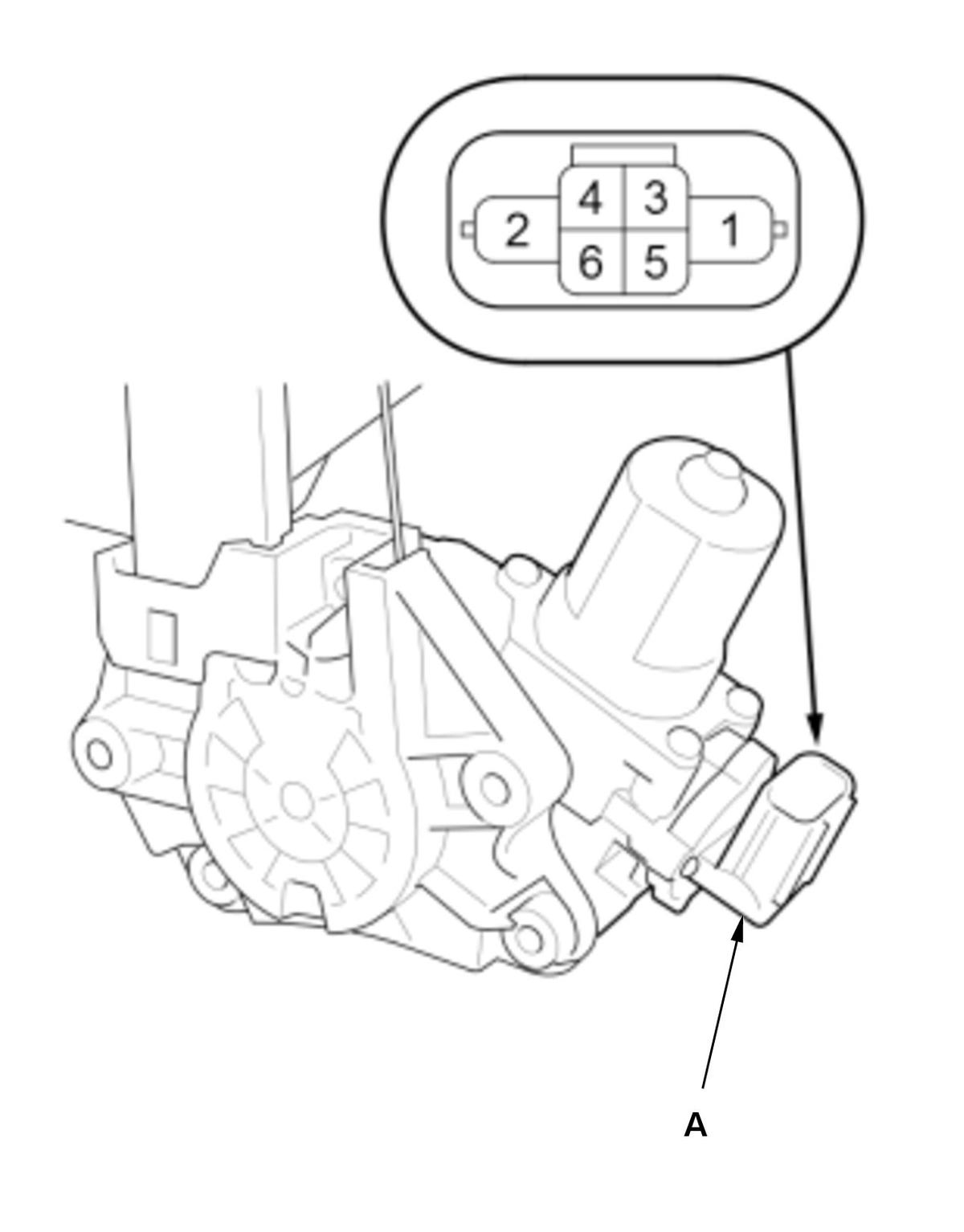

3. Test the motor (A) by connecting 12 volt battery power and ground according to the table. When the motor stops running, disconnect 12 volt battery power immediately.

4. If the motor does not run or fails to run smoothly, the rear power window motor is faulty; replace the sliding door regulator

5. If the motor runs smoothly, replace the wire harnesses or adjust the sliding door glass .

1. Install the parts in the reverse order of removal.
