Fuel Pressure Test: Test

WARNING:

Flammable - Keep Fire Away

NOTE:

How to read the torque specifications .
Refer to the Fuel and Emissions Systems Service Precautions before disconnecting the fuel line.

Fuel Pressure - Relieve

Fuel Line Quick-Connect Fitting - Disconnect

Courtesy of HONDA, U.S.A., INC.

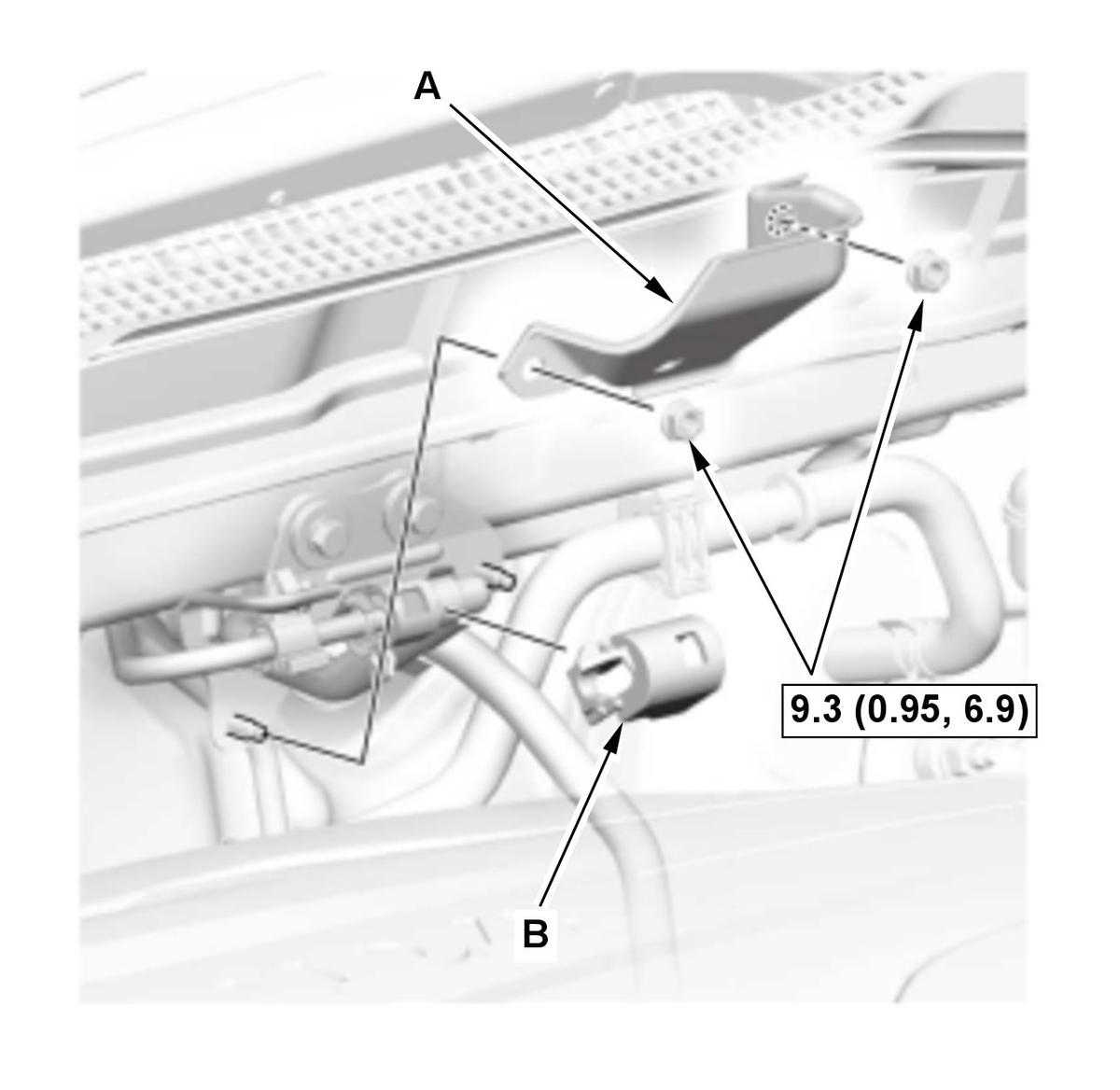

1. Remove the fuel hose cover (A).

2. Remove the quick-connect fitting cover (B)

Courtesy of HONDA, U.S.A., INC.

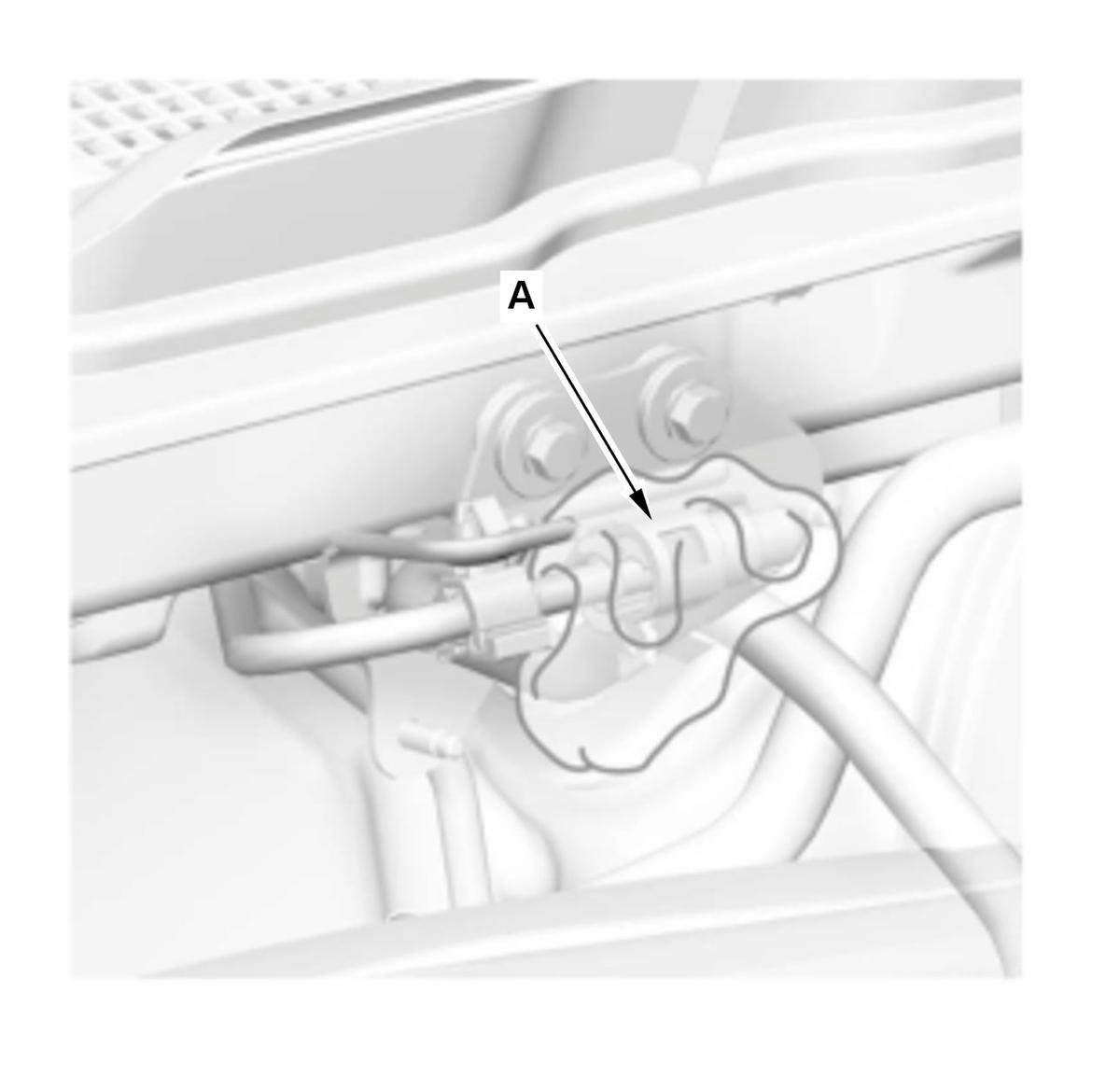

3. Check the fuel quick-connect fitting (A) for dirt, and clean it if needed.

4. Place a rag or shop towel over the quick-connect fitting, then disconnect the quick-connect fitting

Fuel Pressure - Test

Courtesy of HONDA, U.S.A., INC.

NOTE: If you were referred to this procedure from a troubleshooting procedure, test the fuel pressure under the same conditions the malfunction occurred (engine speed, load, throttle position, etc.).

1. Disconnect the quick-connect fitting

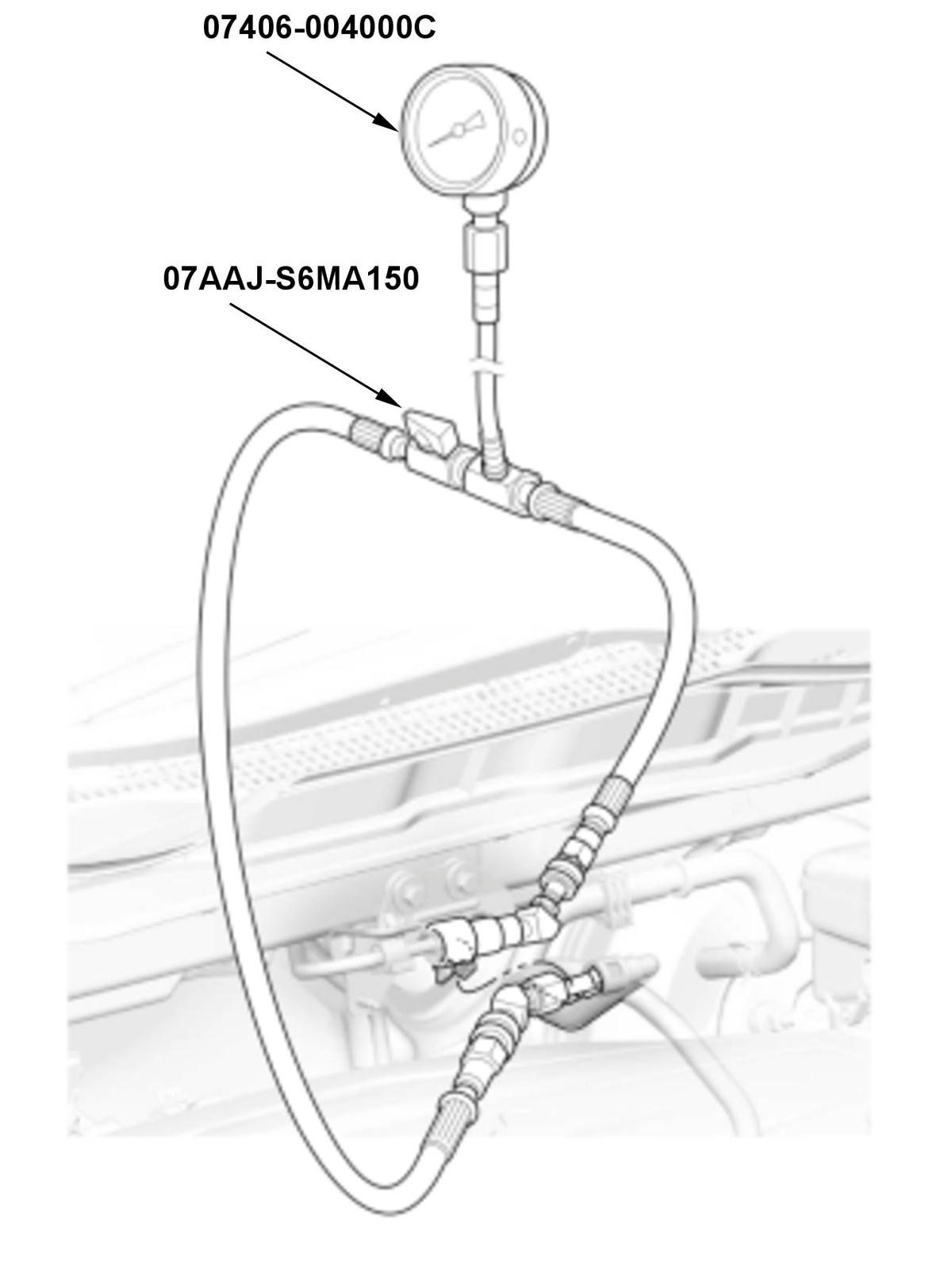

and attach the fuel pressure gauge set. Check for leaks with the gauge set attached.

2. Start the engine, and let it idle.

If the engine starts, go to step 3 and read the fuel pressure gauge.
If the pump does not run and any DTCs are stored, do the DTC troubleshooting .
If the pump does not run and no DTCs are stored, do the fuel pump circuit troubleshooting .

3. Read the fuel pressure gauge. The pressure should be: 410-460 kPa (4.18-4.69 kgf/cm 2, 59.5-66.7 psi)

If the pressure is OK, the test is complete.
If the pressure is out of specification, replace the fuel pressure regulator and the fuel filter , then recheck the fuel pressure.
