Steering Heater Test: Test

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

NOTE:  The steering wheel heater is built into the steering wheel.

1. Driver's Airbag - Remove
2. Steering Heater - Test

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

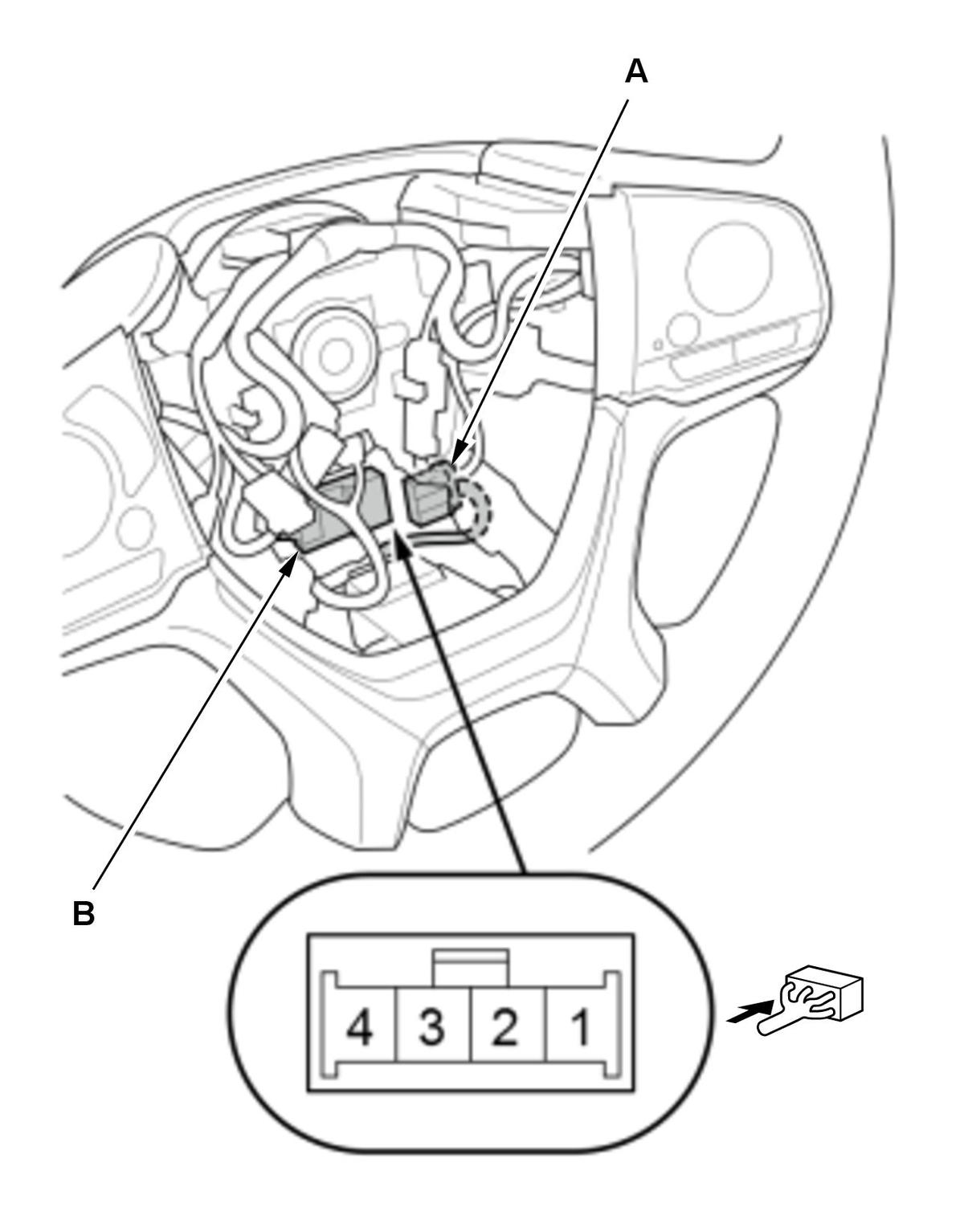

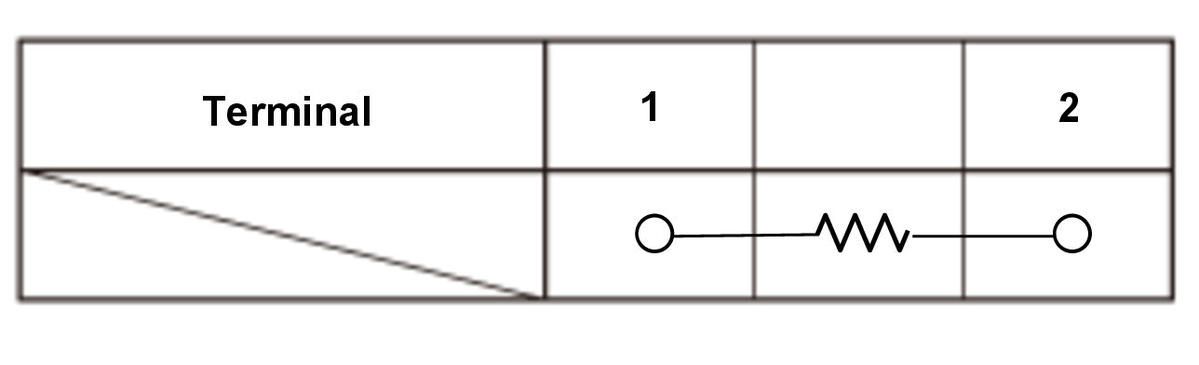

   1. Disconnect the connector (A). 2. Check for continuity between the terminals according to the table. There should be continuity. NOTE:  When the steering heater temperature is 73°F (23°C), resistance value is 2.0 Courtesy of HONDA, U.S.A., INC. 0.20 Ω. 3. If the continuity is not as specified, the steering heater is faulty; replace the steering wheel assembly (B).

3. All Remove Parts - Install

   1. Install the parts in the reverse order of removal.
