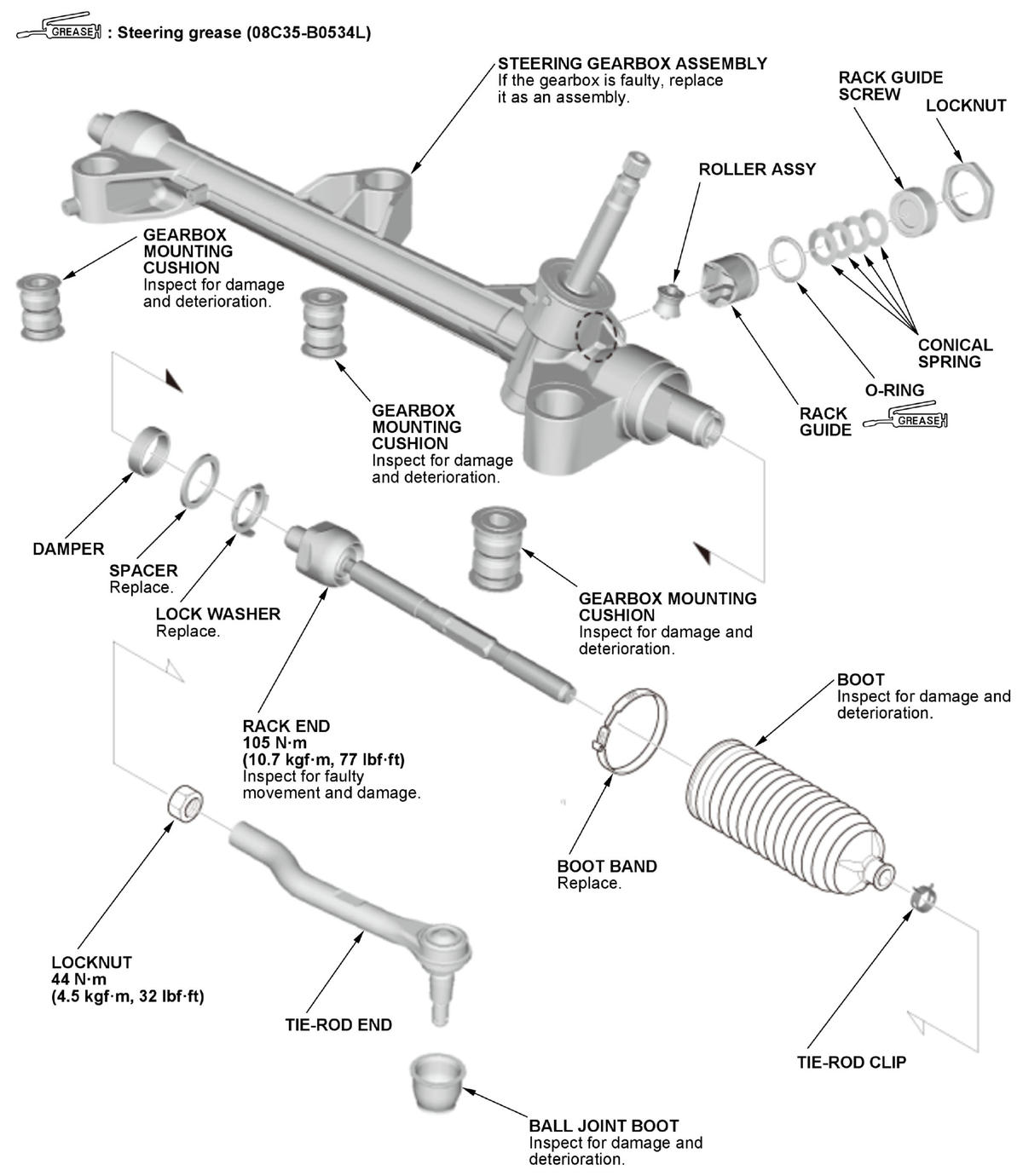

Exploded View
NOTE: For these operations, refer to the complete procedure as needed.
- Rack end removal and installation .
- Rack guide adjustment .
- Tie-rod end ball joint boot replacement .
- If the rack guide is removed, rack guide adjustment is necessary .
