Driving Position Memory System (DPMS) Component Location Index

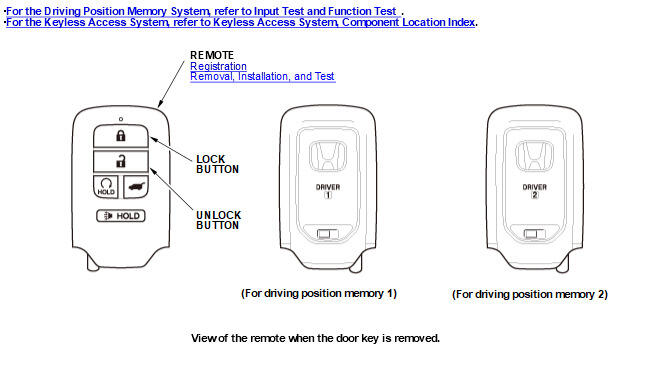

GHH371603

Courtesy of HONDA, U.S.A., INC.

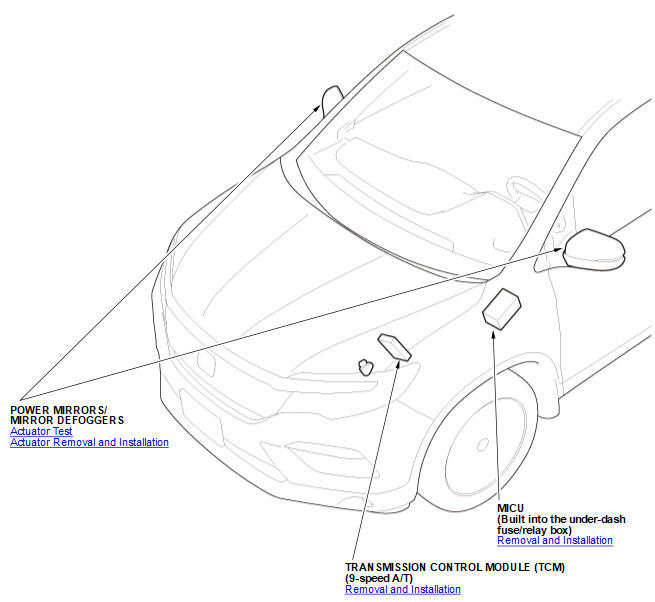

GHH371604

Courtesy of HONDA, U.S.A., INC.

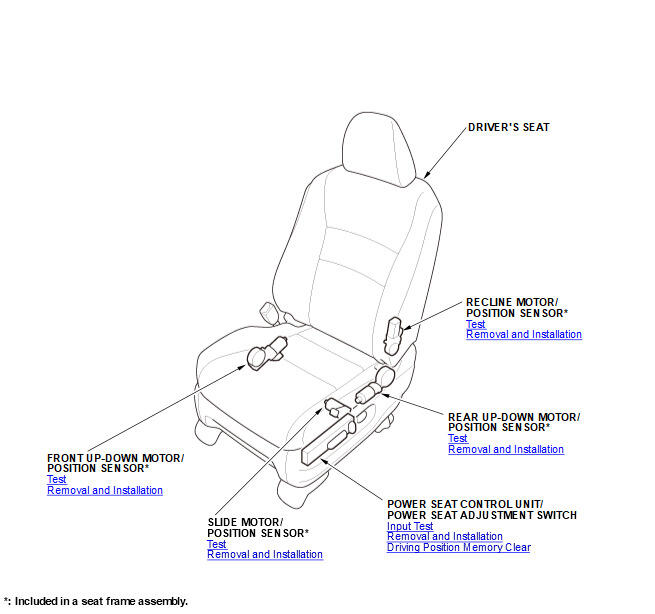

GHH371605

Courtesy of HONDA, U.S.A., INC.

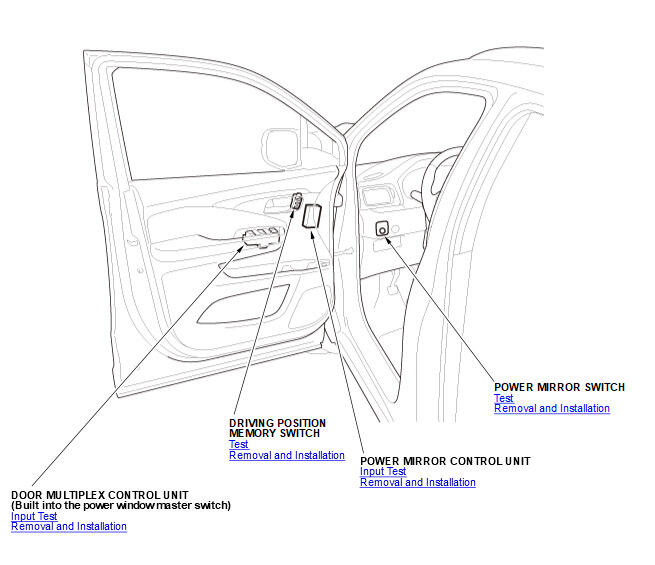

GHH371606

Courtesy of HONDA, U.S.A., INC.
