Keyless Access System Circuit Diagram

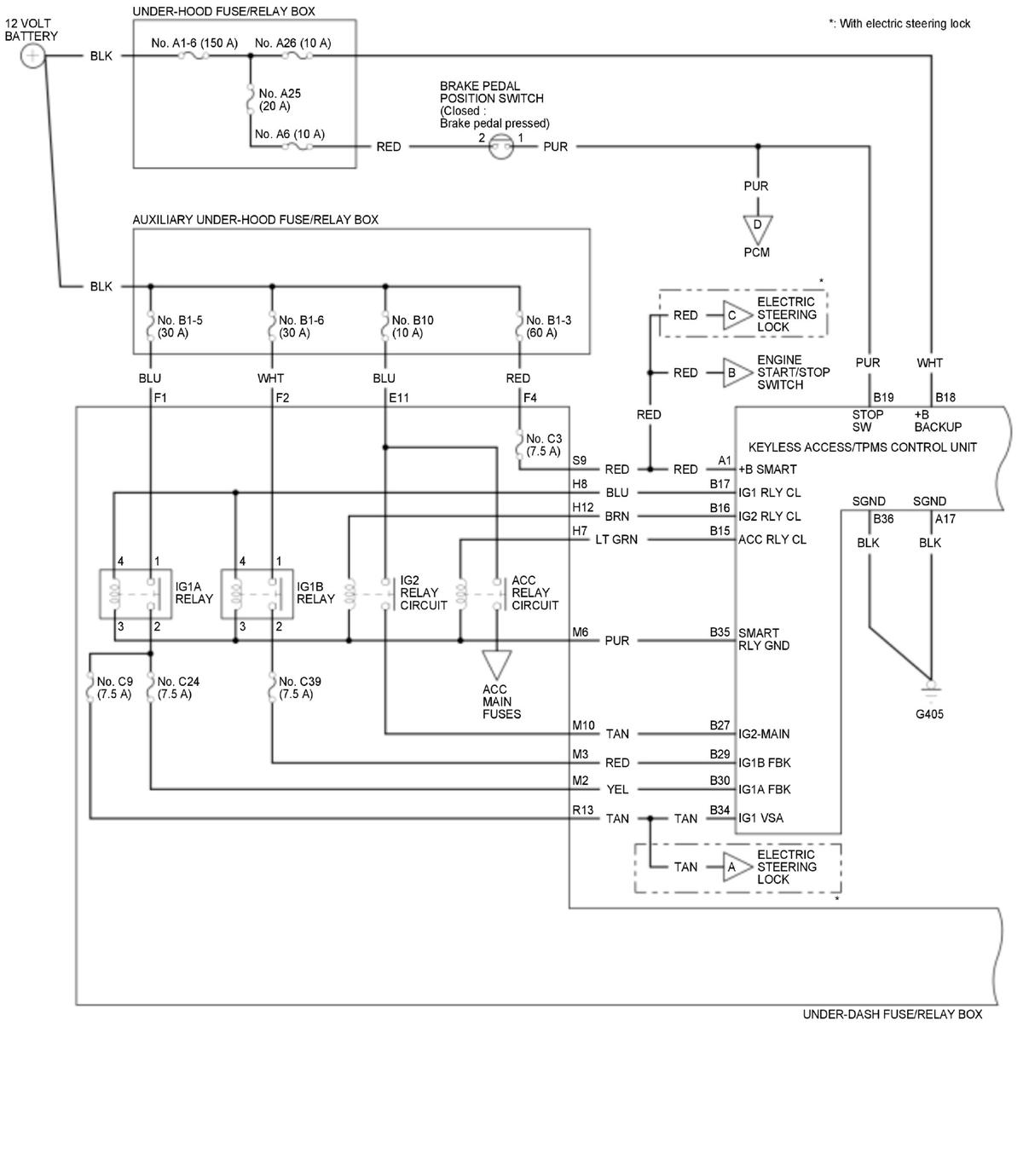

GHH558712

Courtesy of HONDA, U.S.A., INC.

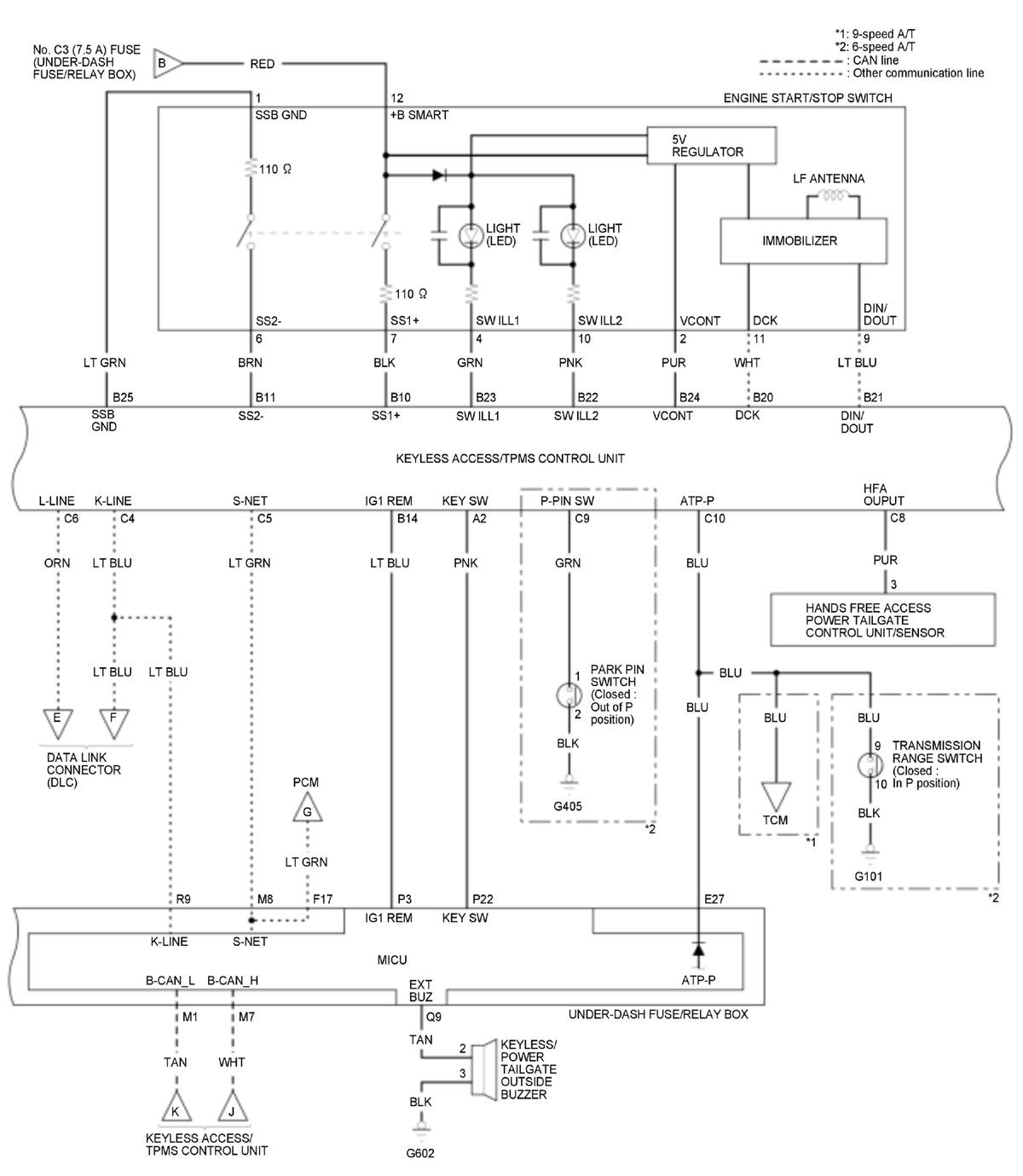

GHH558713

Courtesy of HONDA, U.S.A., INC.

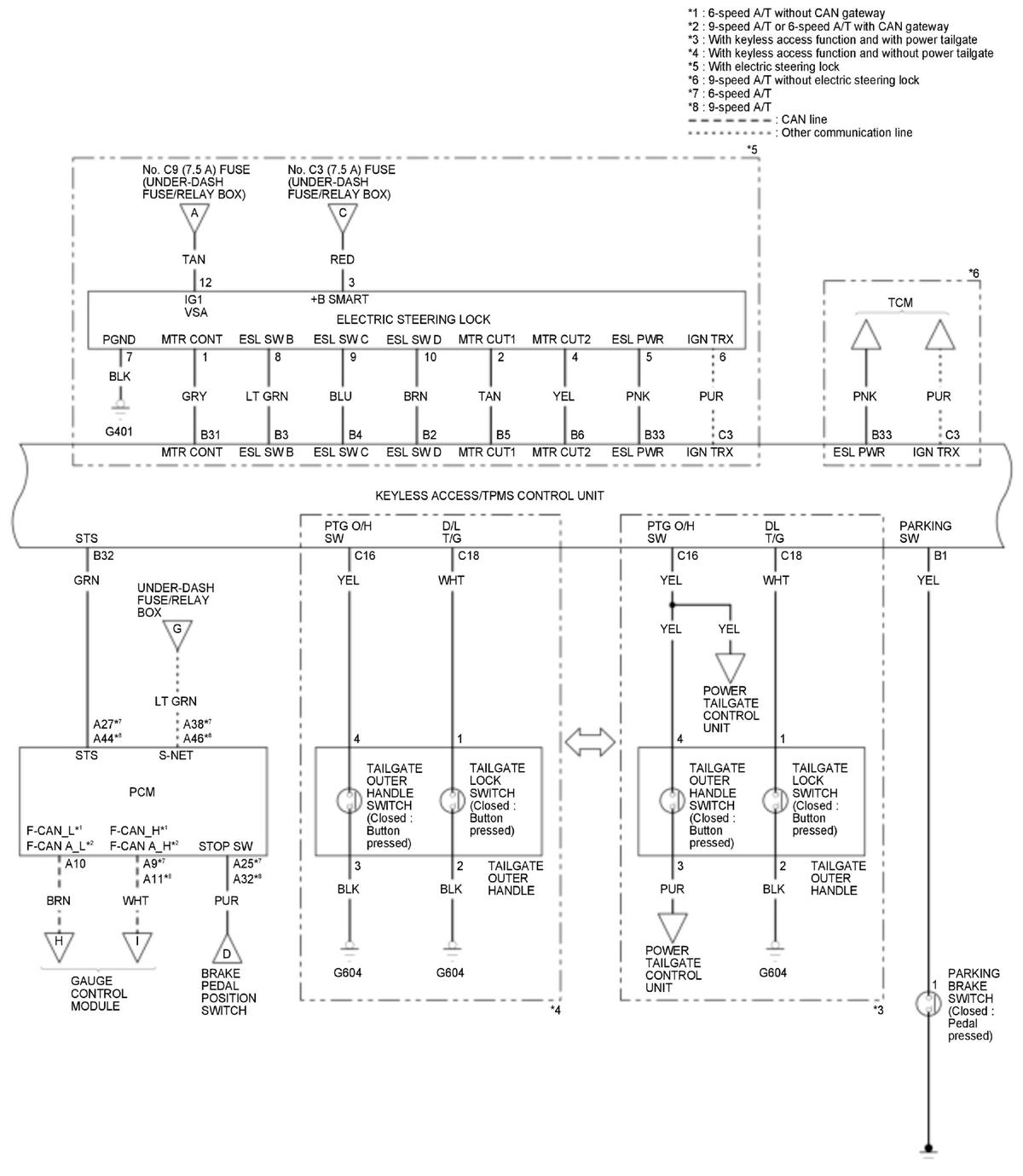

GHH558714

Courtesy of HONDA, U.S.A., INC.

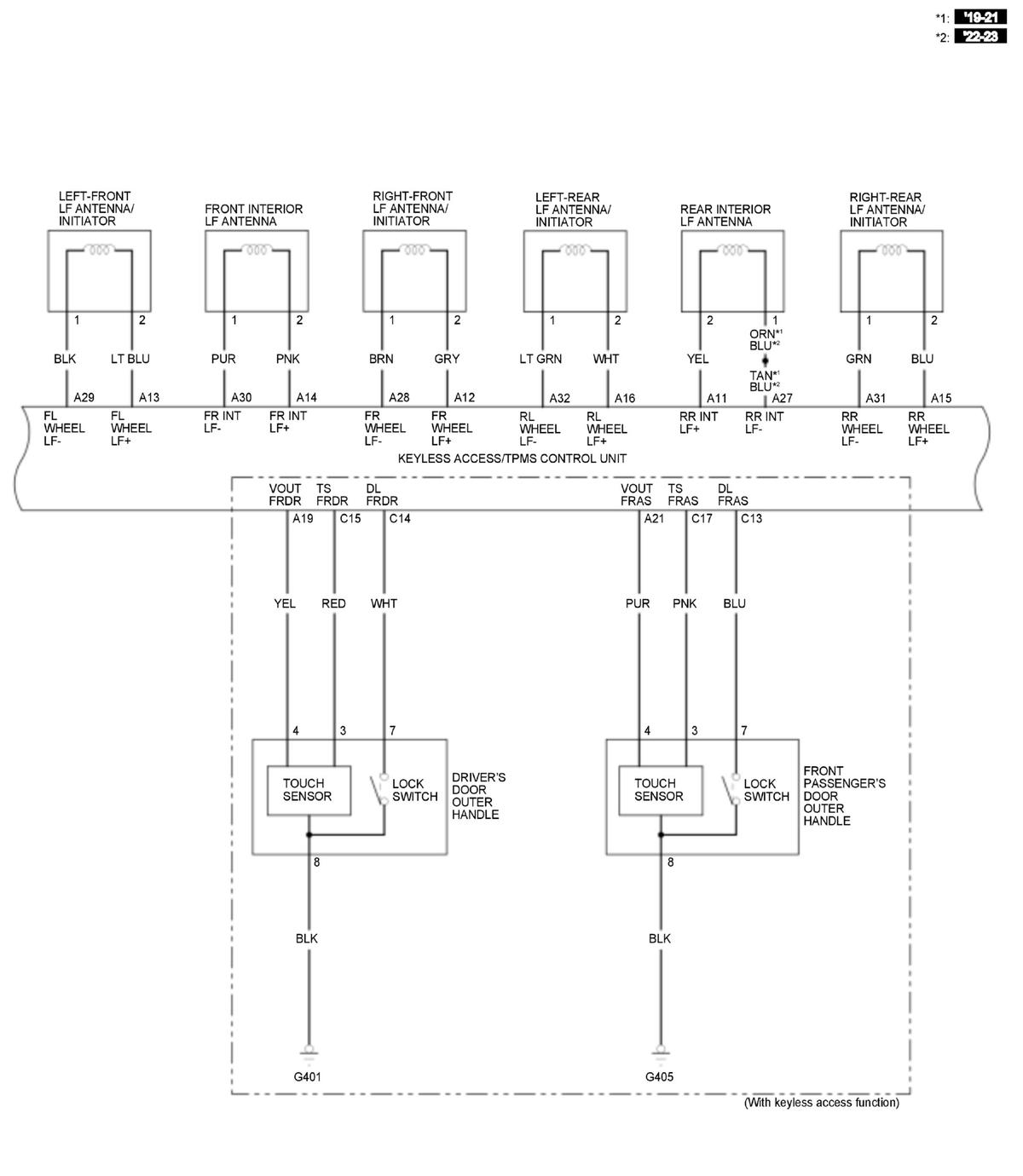

GHH558715

Courtesy of HONDA, U.S.A., INC.

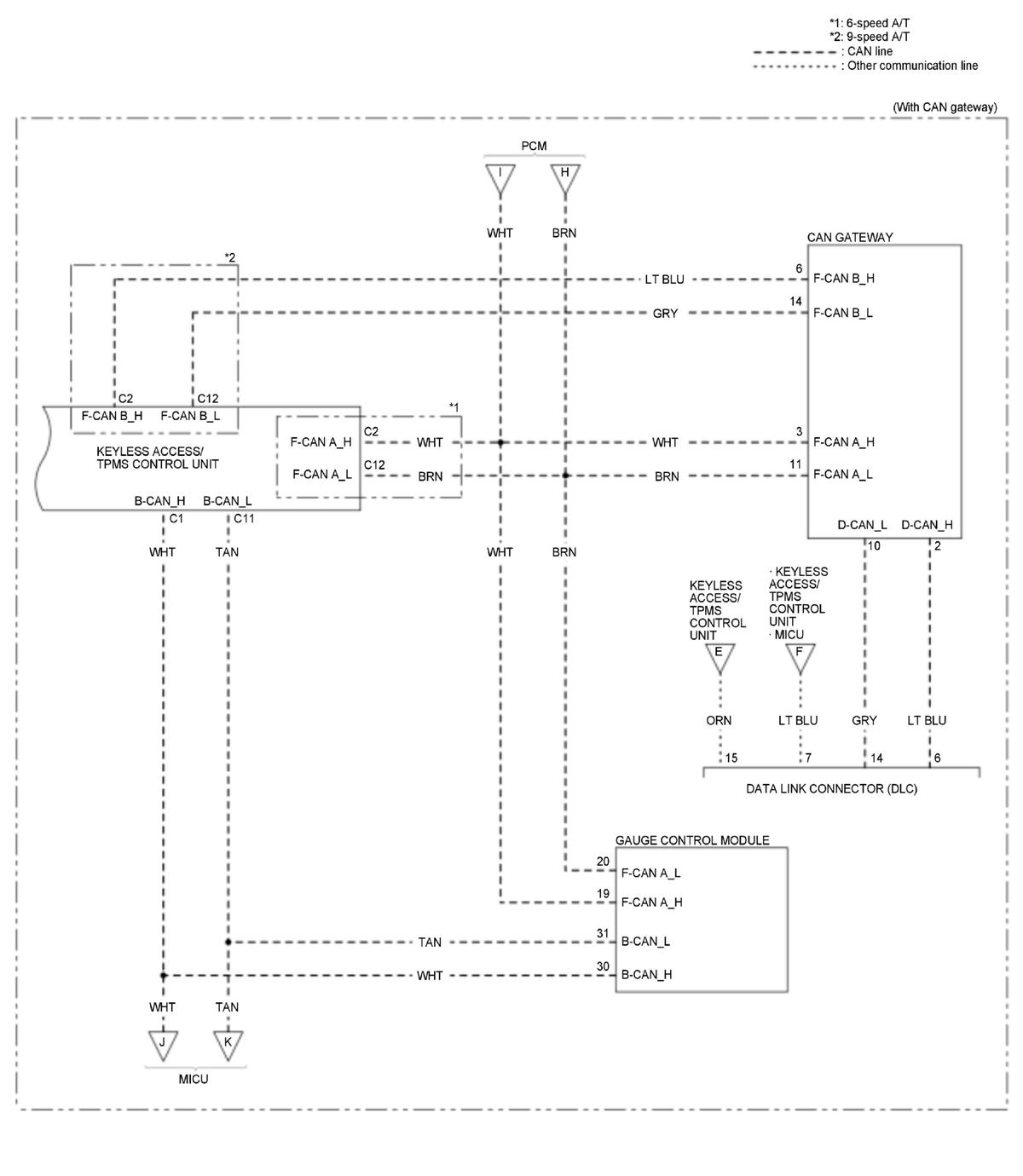

GHH558716

Courtesy of HONDA, U.S.A., INC.
