Heated Steering Wheel Temperature Sensor Test: Test

NOTE:

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.
The heated steering wheel temperature sensor is built into the steering wheel.
How to read the torque specifications .

Steering Wheel Temperature Sensor - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

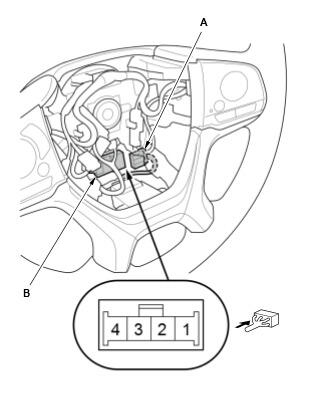

1. Disconnect the connector (A).

2. Measure the resistance between the terminals according to the table.

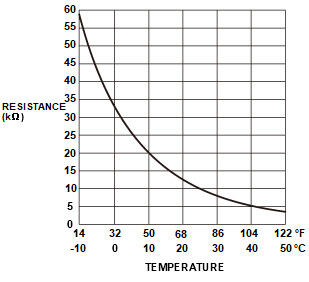

3. Compare the resistance readings with the specifications shown in the graph; the resistance should be within the specifications.

4. If the resistance is not as specified, the steering wheel temperature sensor (B) is faulty; replace the steering wheel assembly

All Remove Parts - Install

1. Install the parts in the reverse order of removal.
