Answer Back Control

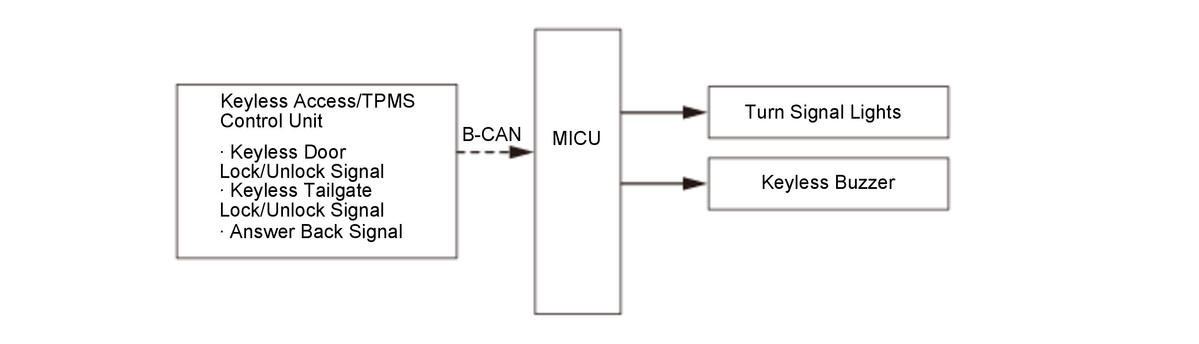

When using the remote, the MICU provides an answer back function to alert the client that the MICU received a lock or unlock command from the remote.

GHH312271Courtesy of HONDA, U.S.A., INC.

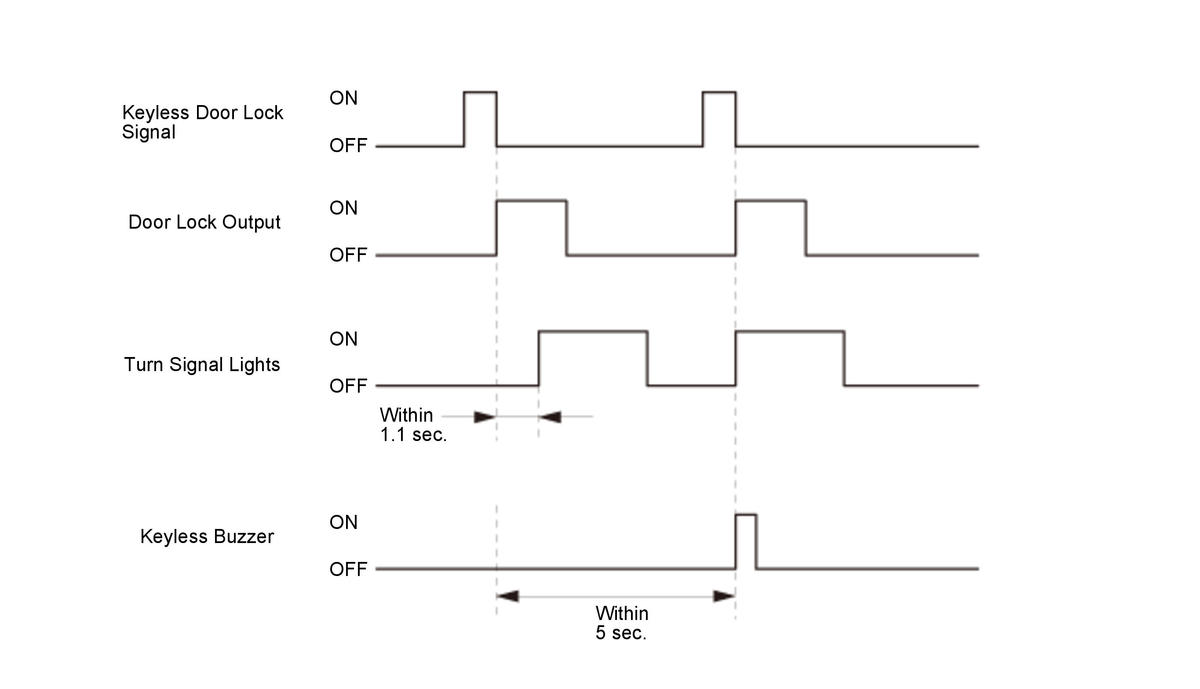

When the MICU receives a lock signal, the MICU sends signals once to the turn signal lights, and keyless buzzer will sound once when you press the Lock button again within 5 seconds.

GHH312272Courtesy of HONDA, U.S.A., INC.

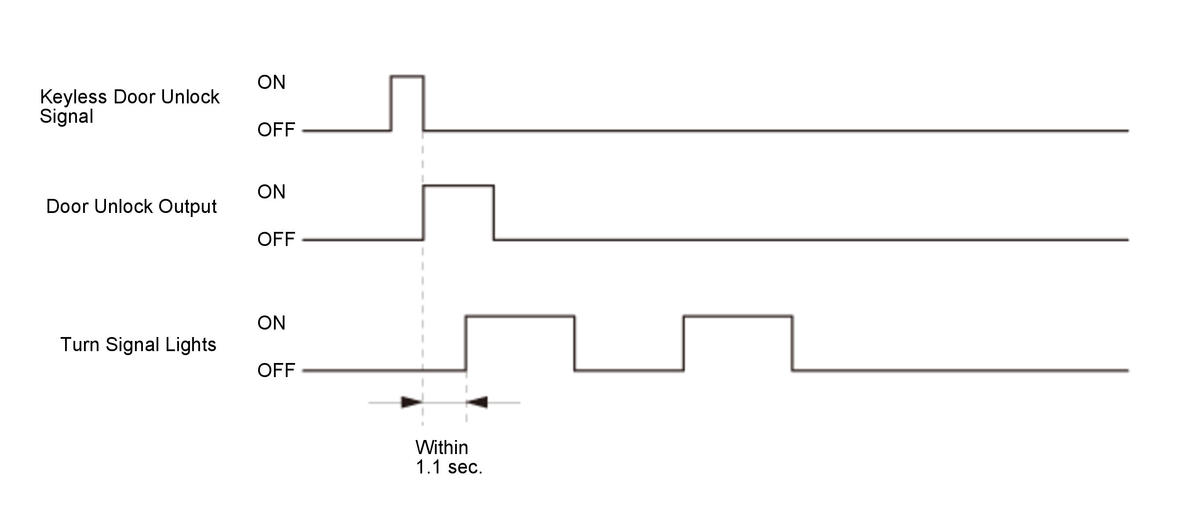

When the MICU receives an unlock signal, the MICU sends signals two twice to the turn signal lights.

GHH312273Courtesy of HONDA, U.S.A., INC.
