Security System Keyless Entry System - Testing & Troubleshooting (1 Of 2)
›
System Description
›

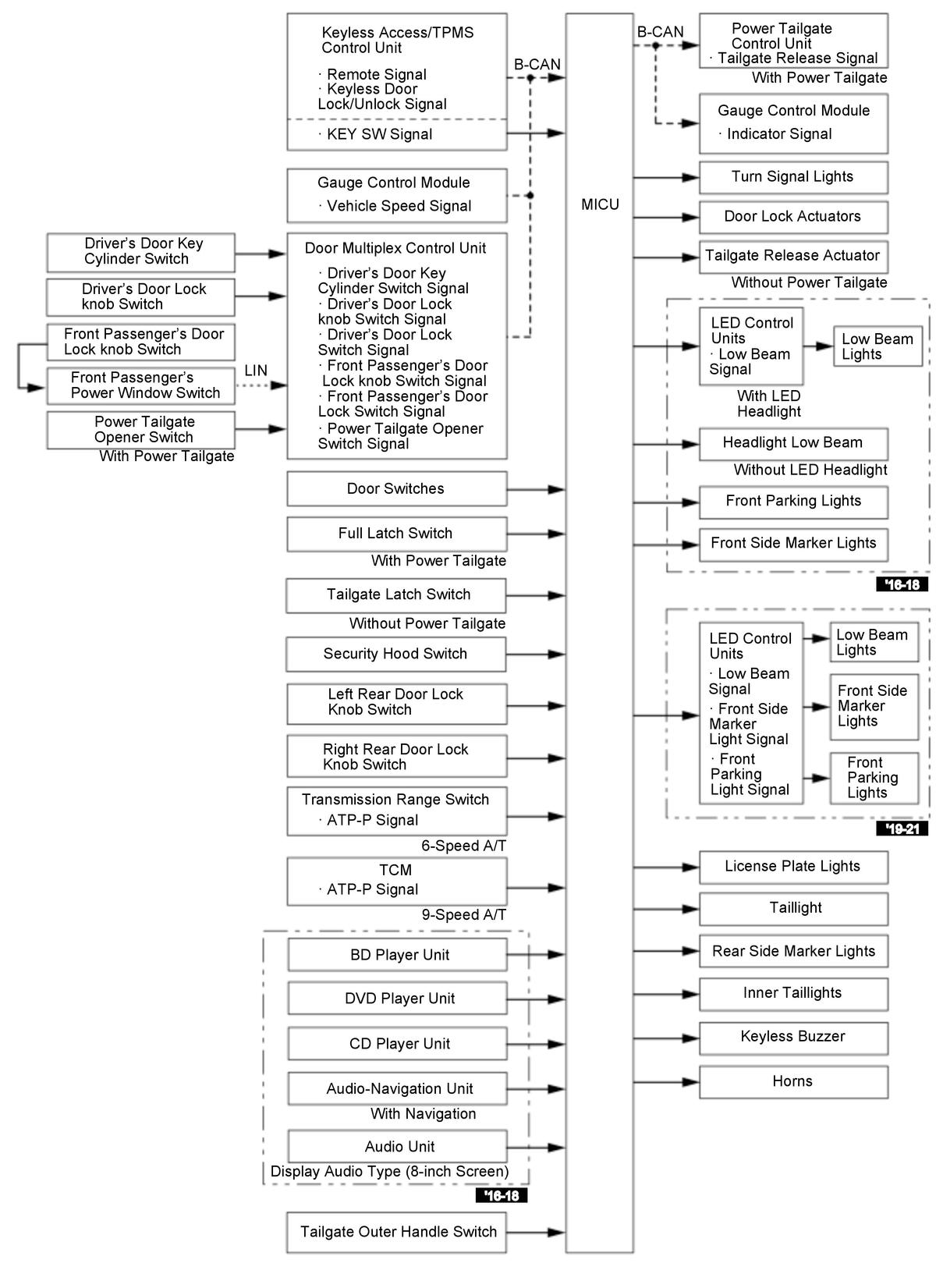

Keyless/Power Door Locks/Security - System Diagram
Keyless/Power Door Locks/Security - System Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
