VTEC Camshaft

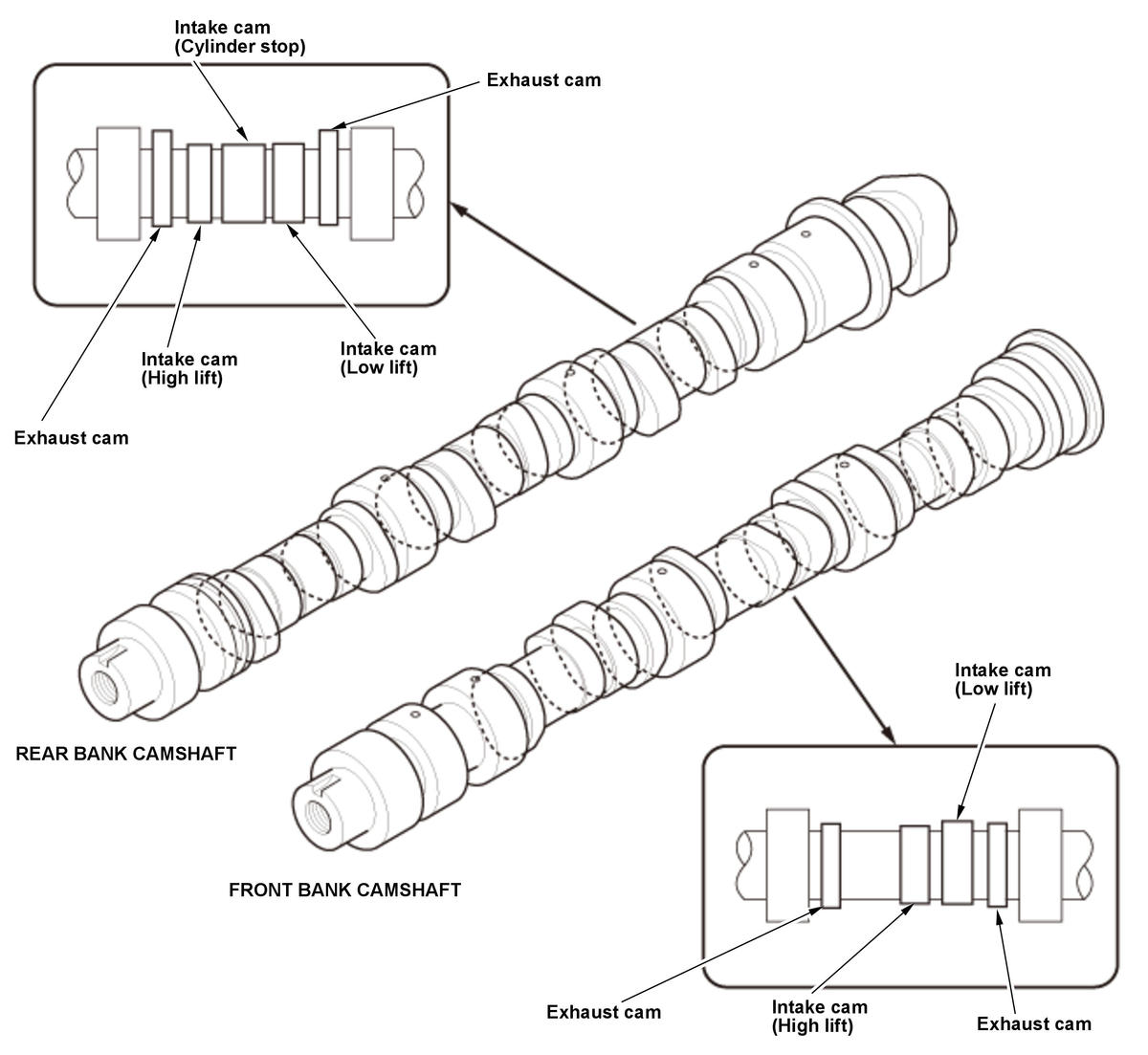

The front bank camshaft has intake side high lift cams, intake side low lift cams, and exhaust cams installed. The rear bank camshaft has intake side high lift cams, intake side low lift cams, intake side cylinder stop cams (no lift), and exhaust cams installed.

Courtesy of HONDA, U.S.A., INC.
