Front Damper/Spring Disassembly, Reassembly, and Inspection: Disassembly

NOTE:

Further information shown below.
When compressing the damper spring, use a commercially available strut spring compressor according to the manufacturer's instructions.
Check for deterioration and damage to each part during removal.

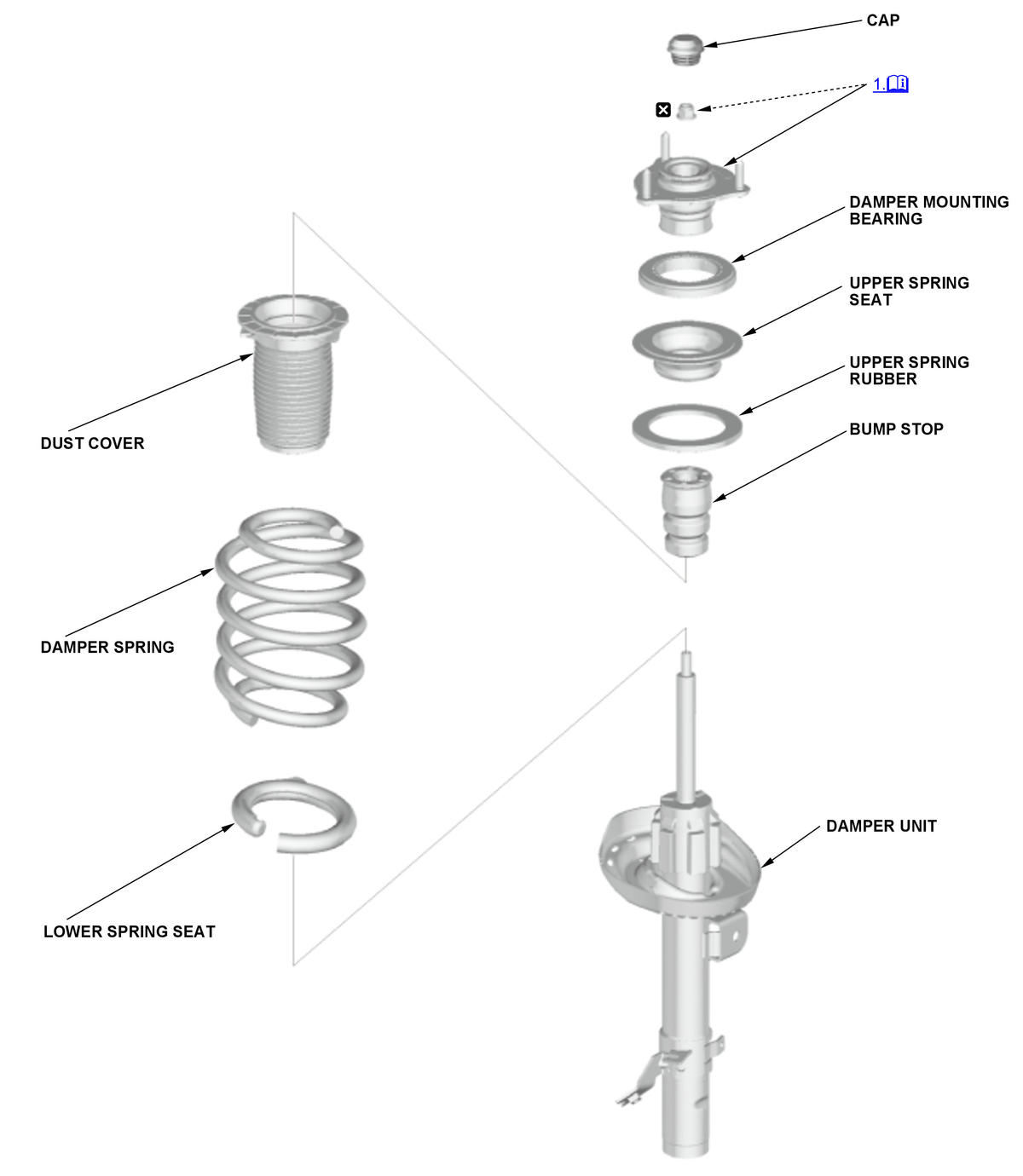

Fig 1: Exploded View Of Front Damper

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Torque: Nm (kgf-m, lbf.ft)
	Replace

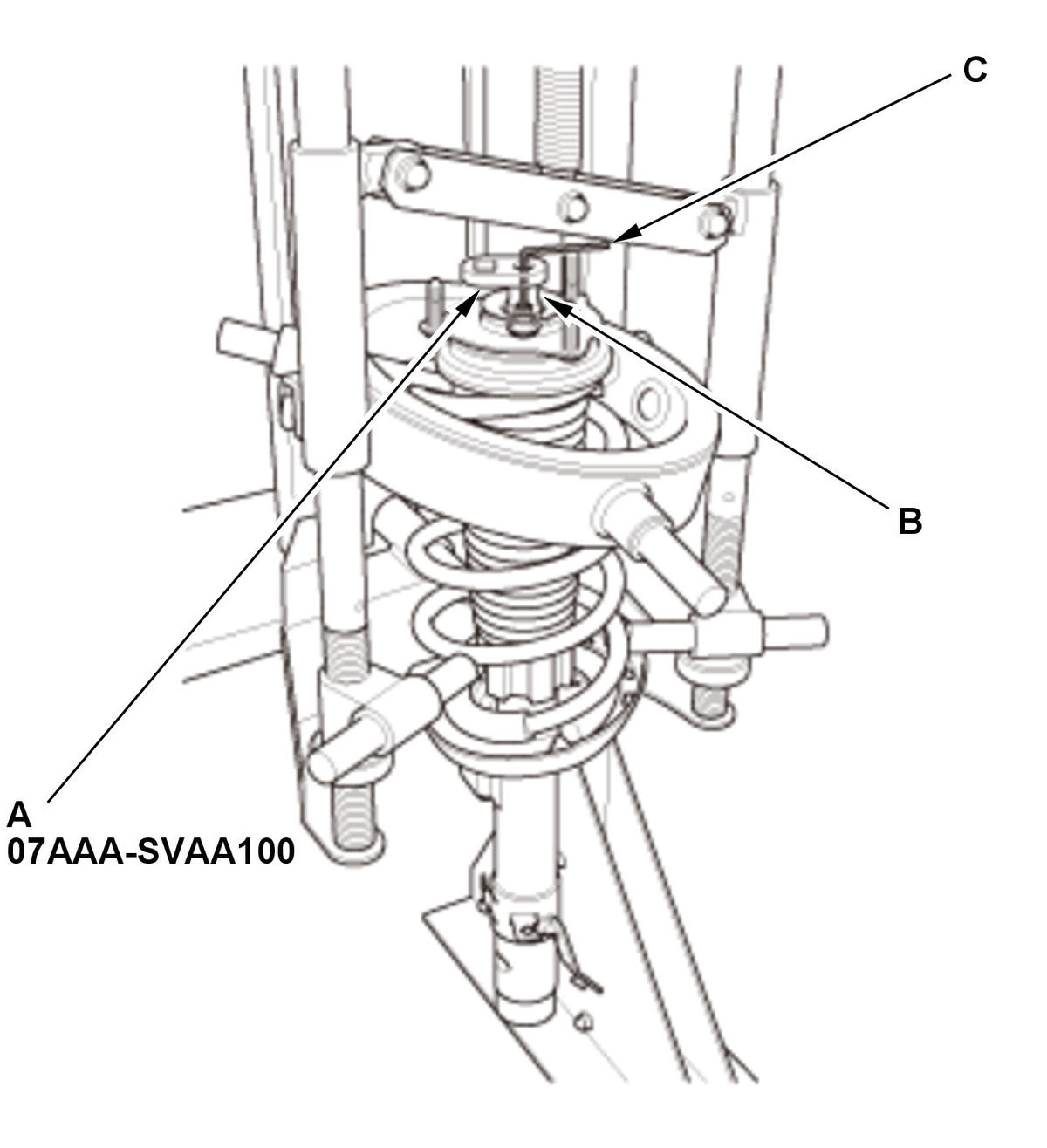

Damper Mounting Base - Remove

Courtesy of HONDA, U.S.A., INC.

1. Compress the damper spring.

NOTE:

Do not compress the spring more than necessary to remove the nut.

2. Remove the self-locking nut with the strut nut adapter (A) and 17 mm deep socket (B), while holding the damper shaft with a hex wrench (C).

3. Release the pressure from the strut spring compressor.
