Camshaft Oil Seal - In Car: Replacement

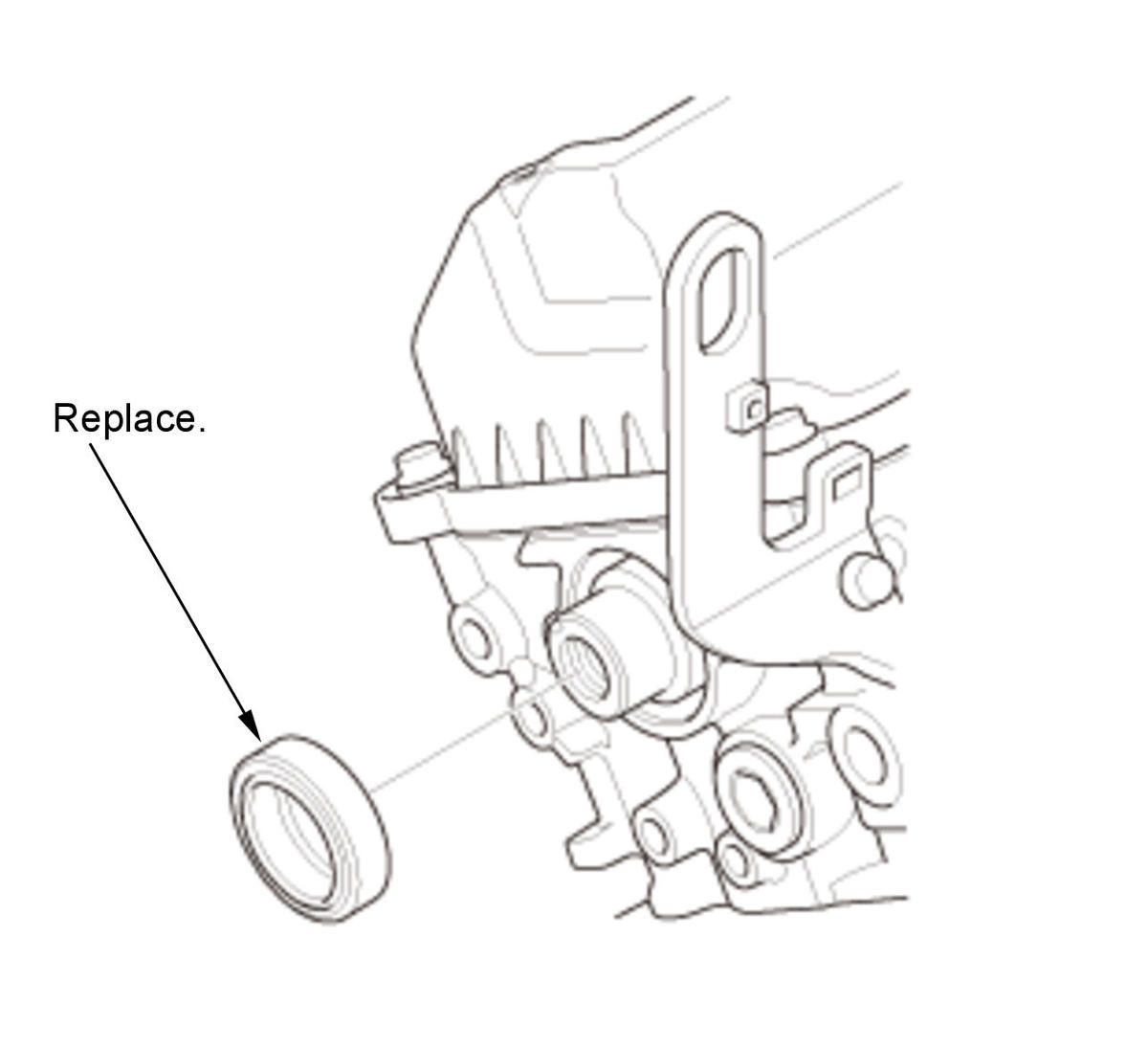

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

REAR

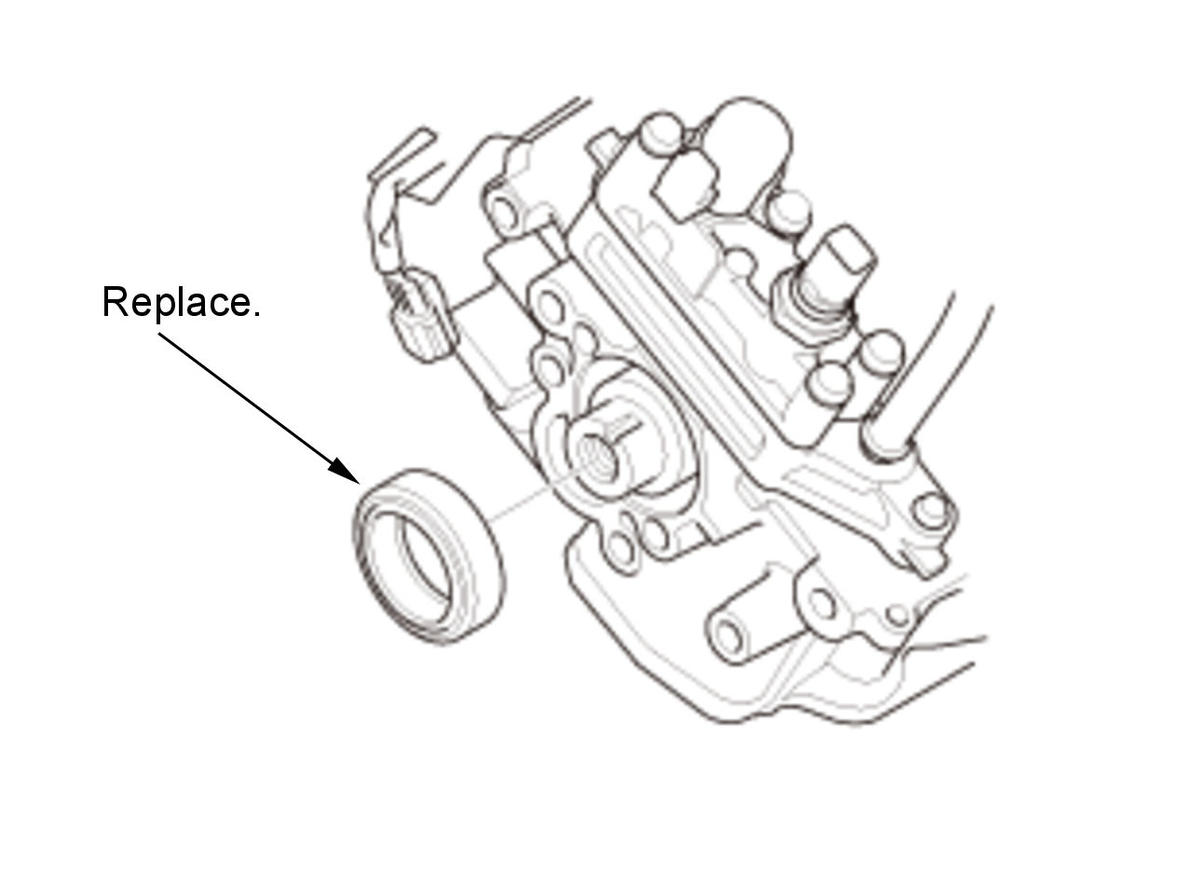

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

2. Apply a light coat of new engine oil to the lip of the camshaft oil seal.

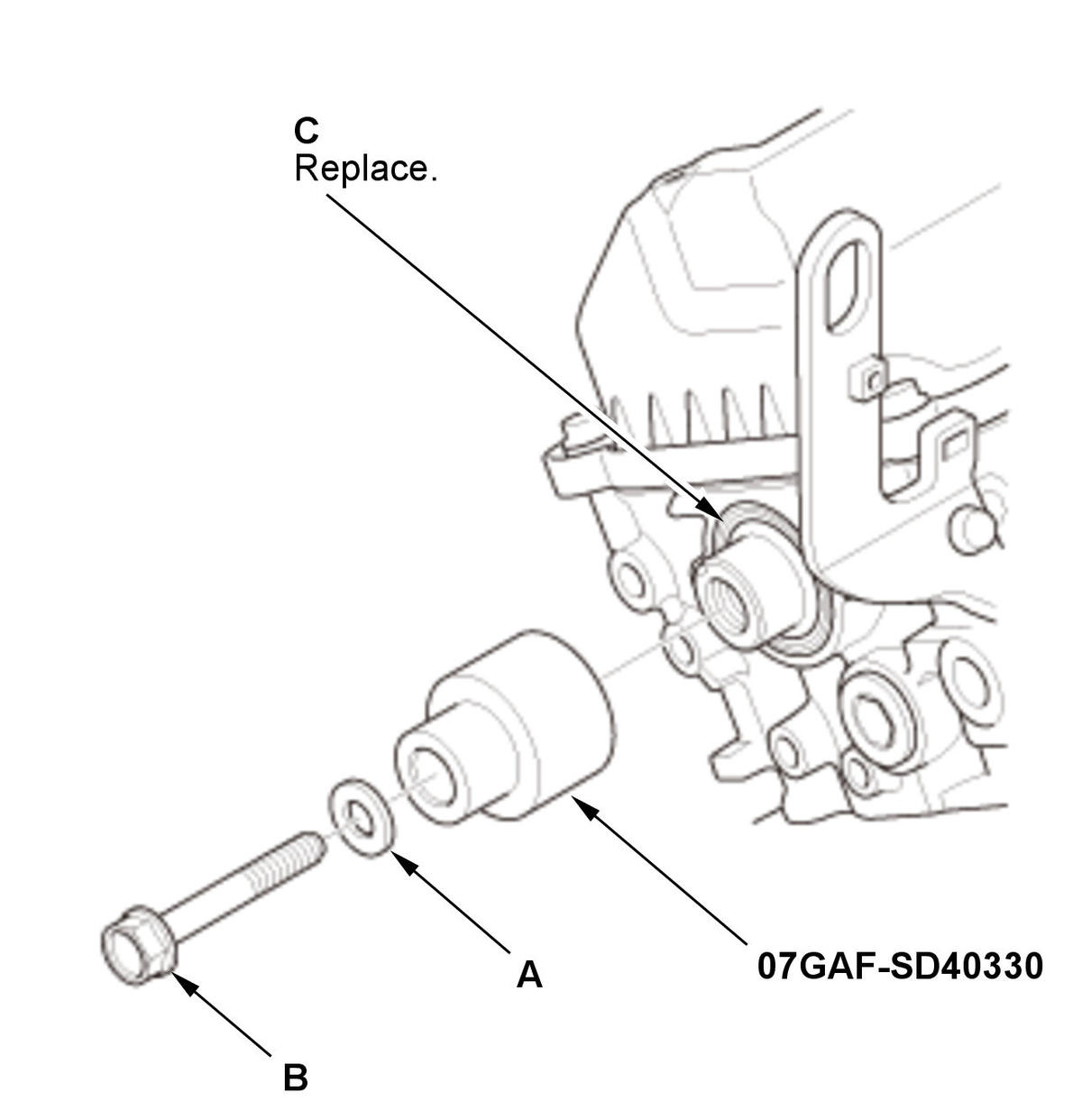

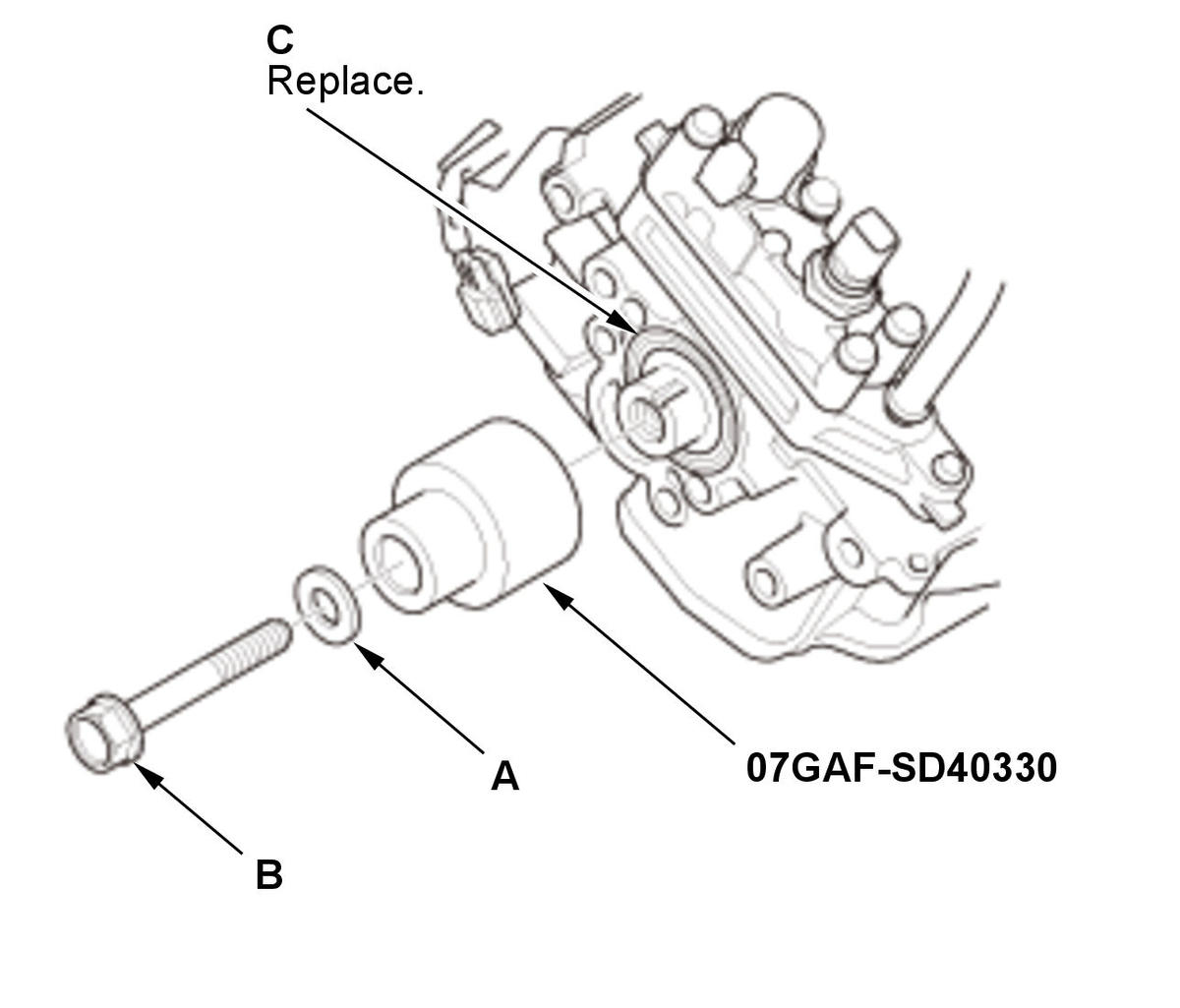

3. Using the ball joint remover/installer, a washer (A), and a 12 x 75 x 1.25 mm bolt (B), press in a new camshaft oil seal (C) squarely into the cylinder head to the specified installed height.

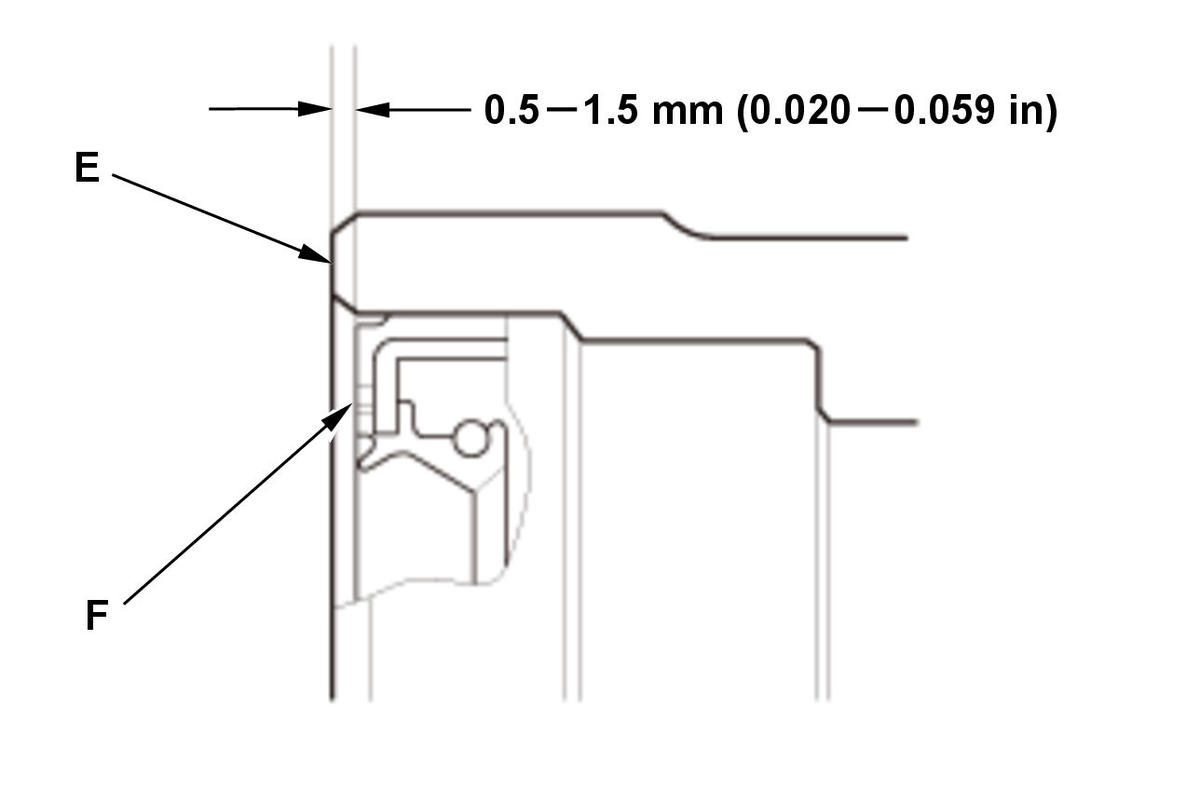

4. Measure the distance between the cylinder head surface (E) and the camshaft oil seal (F).

5. Clean the excess oil off the camshaft, and check that the camshaft oil seal lip is not distorted.
