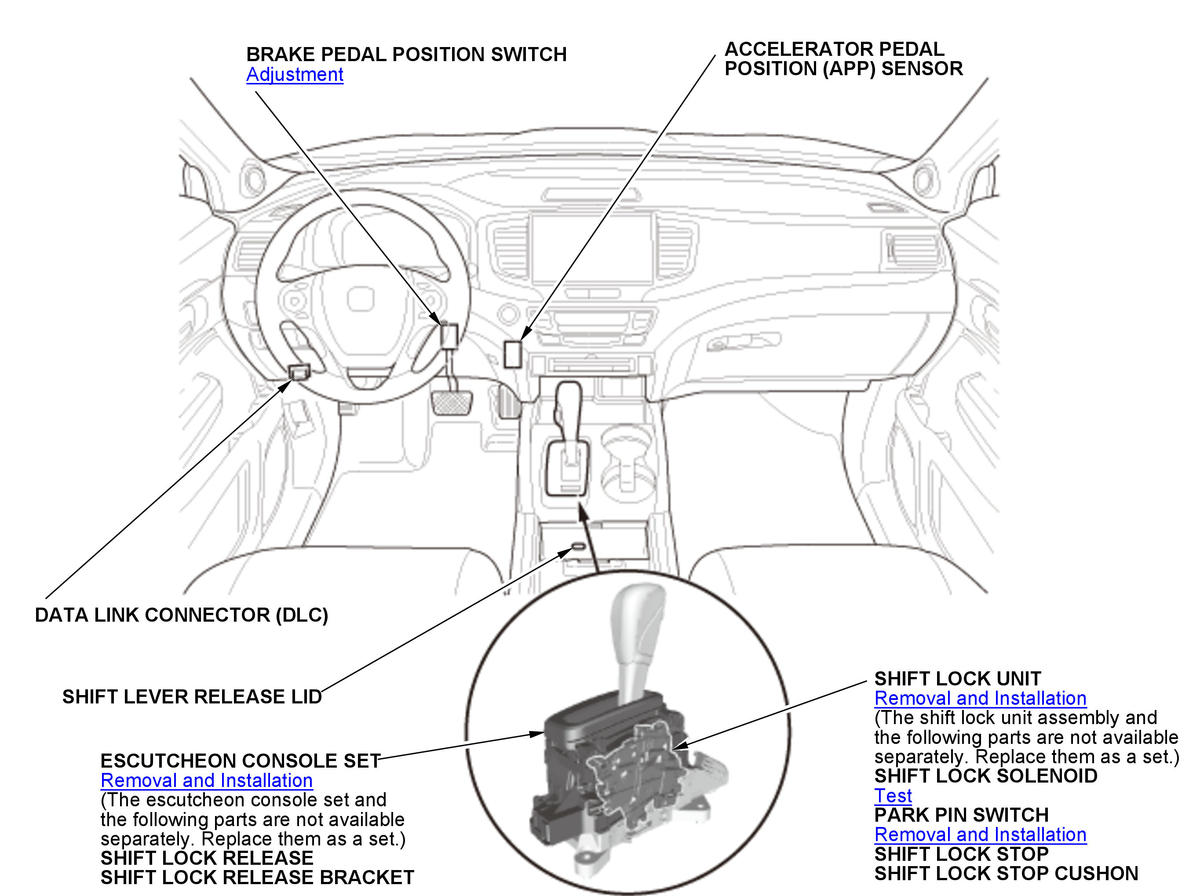

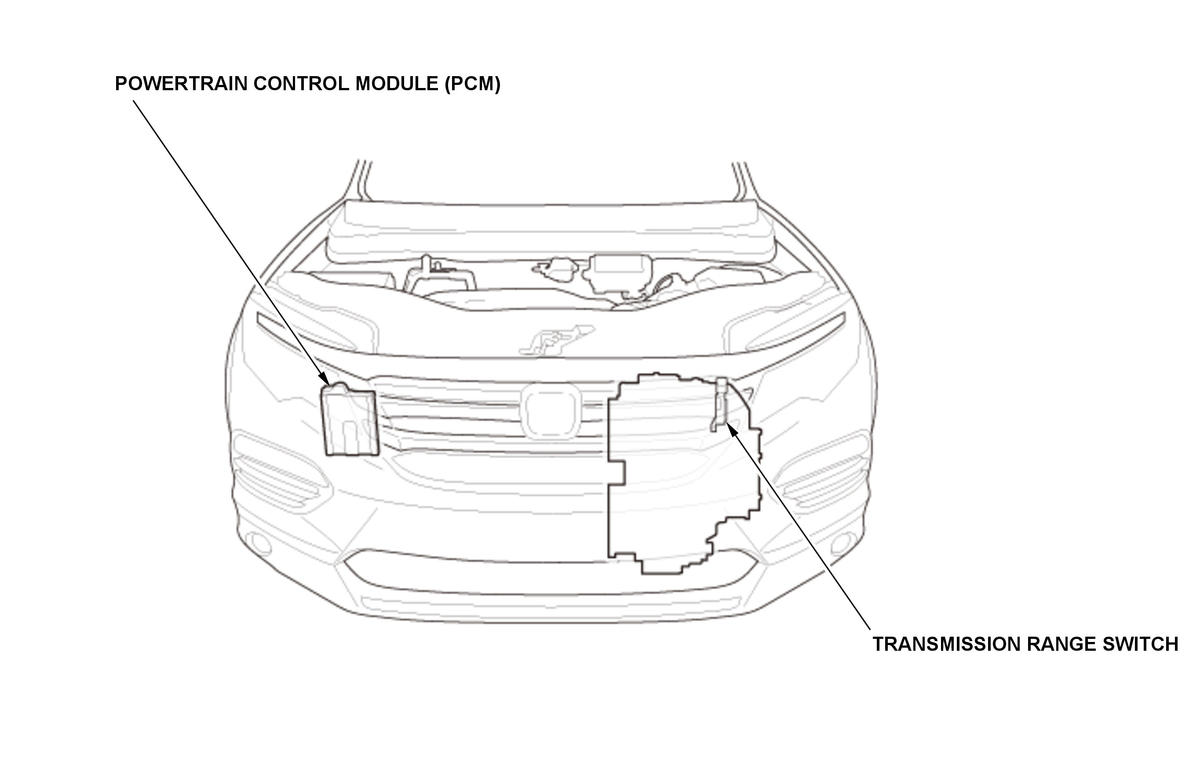

A/T Interlock System Component Location Index (6-Speed A/T)
A/T Interlock System Component Location Index (6-Speed A/T)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
