Driving Position Memory System (DPMS)

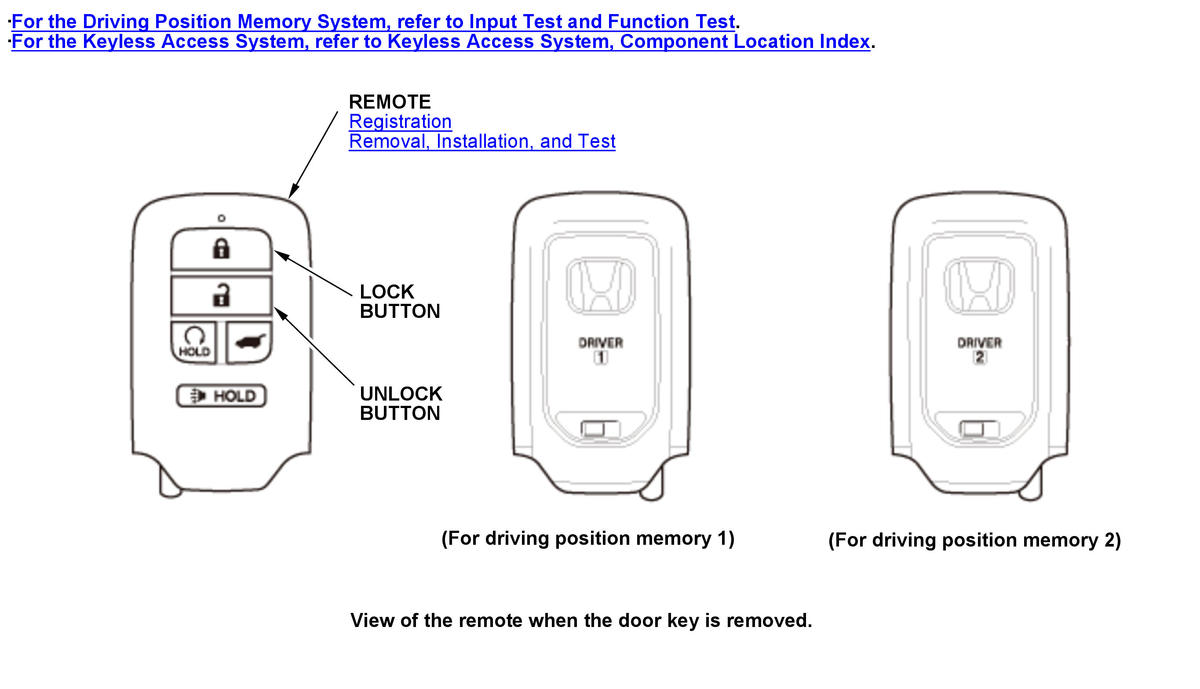

GHH310309

Courtesy of HONDA, U.S.A., INC.

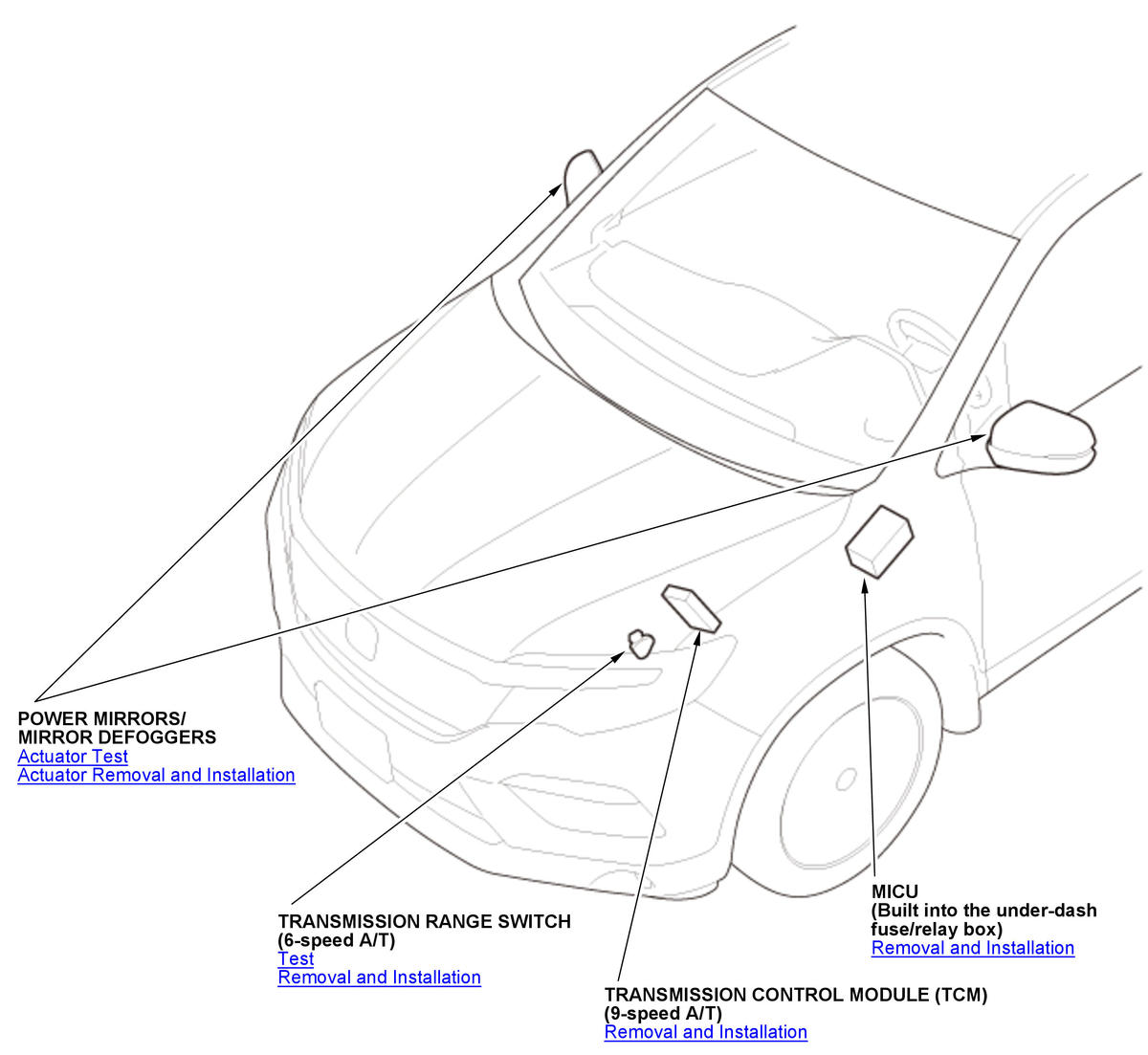

GHH310310

Courtesy of HONDA, U.S.A., INC.

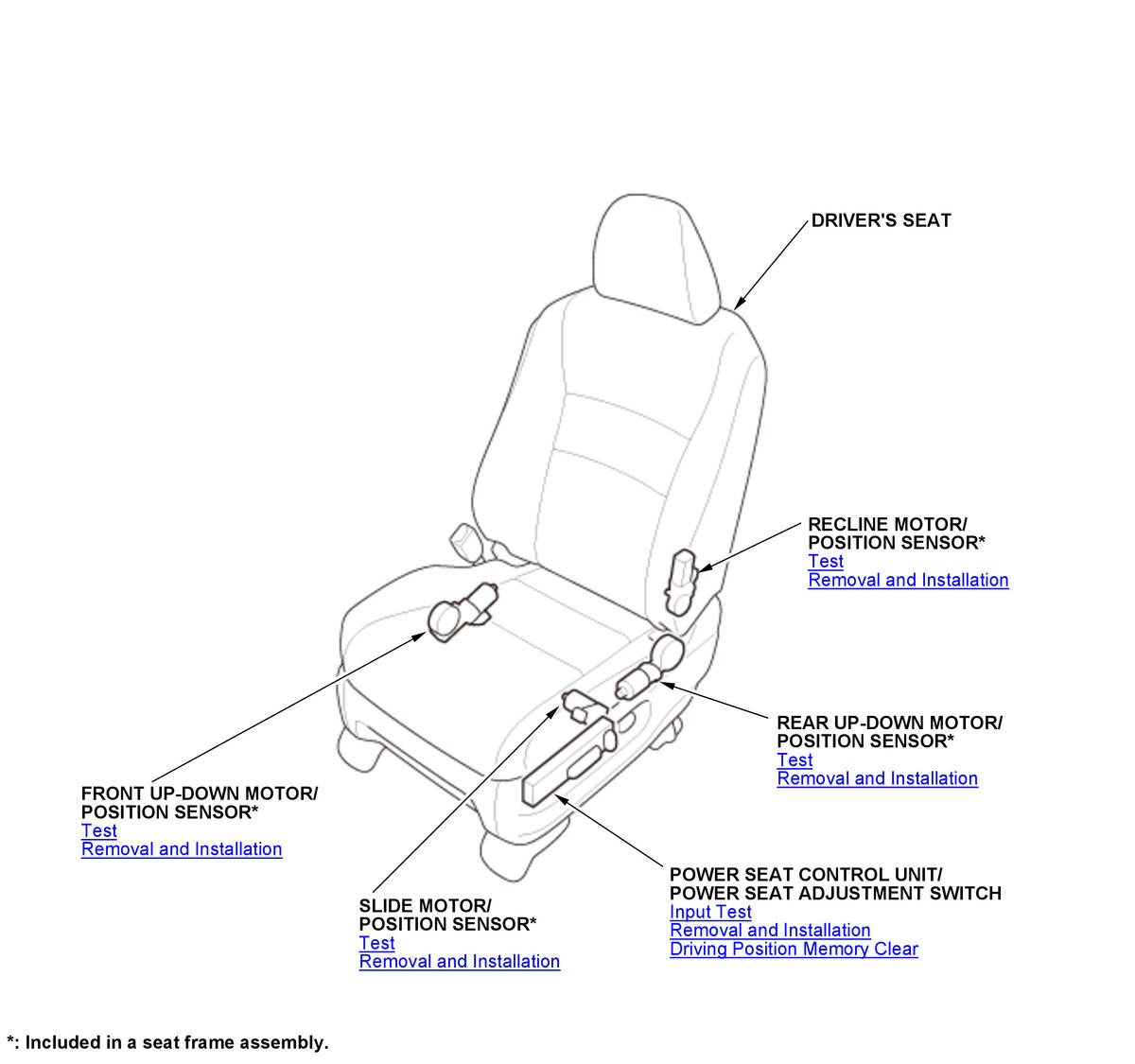

GHH310311

Courtesy of HONDA, U.S.A., INC.

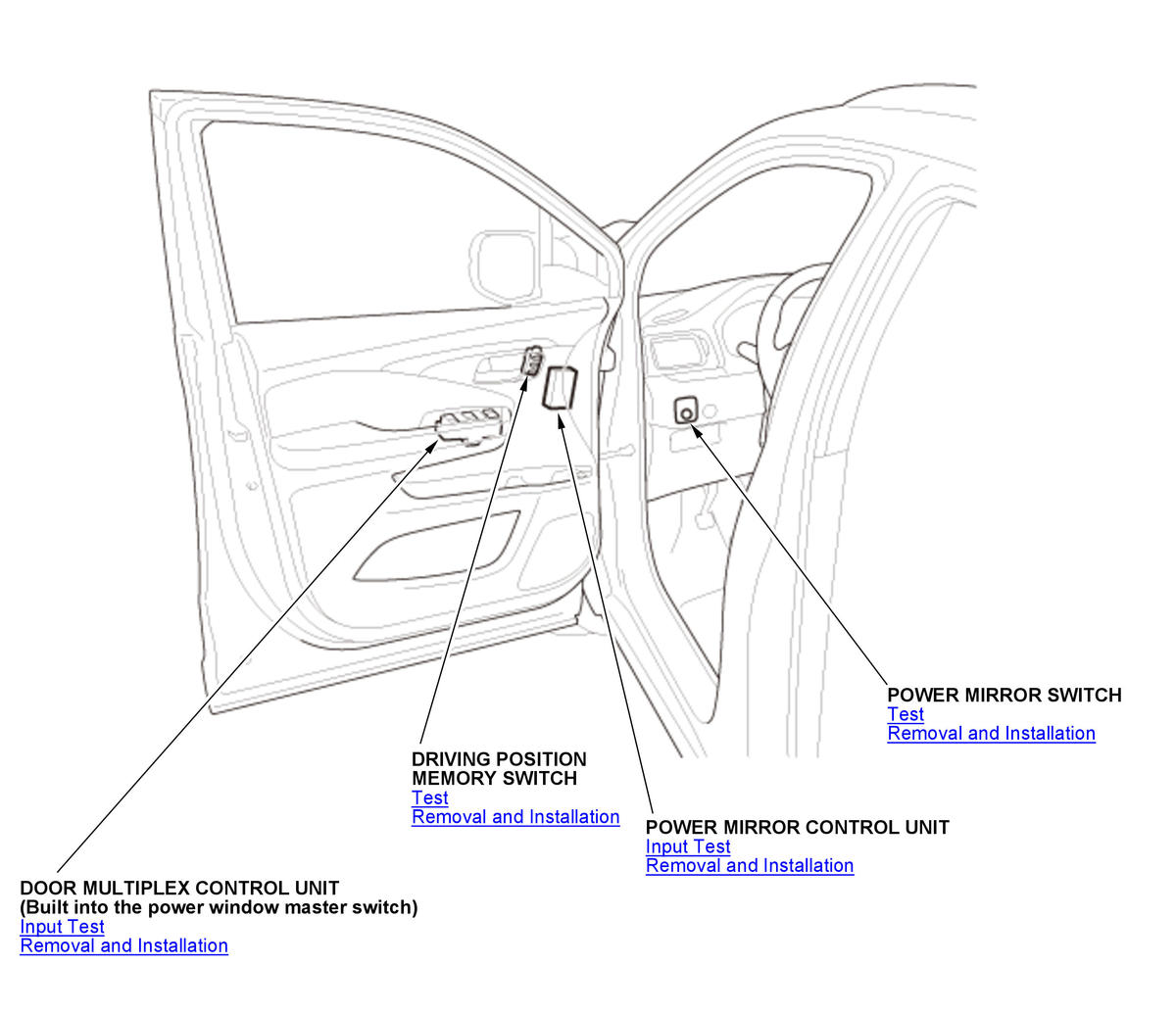

GHH310312

Courtesy of HONDA, U.S.A., INC.
