Security System Keyless Entry System - Testing & Troubleshooting (1 Of 2)
›
System Description
›
Keyless/Power Door Locks/Security - Control/Function
›

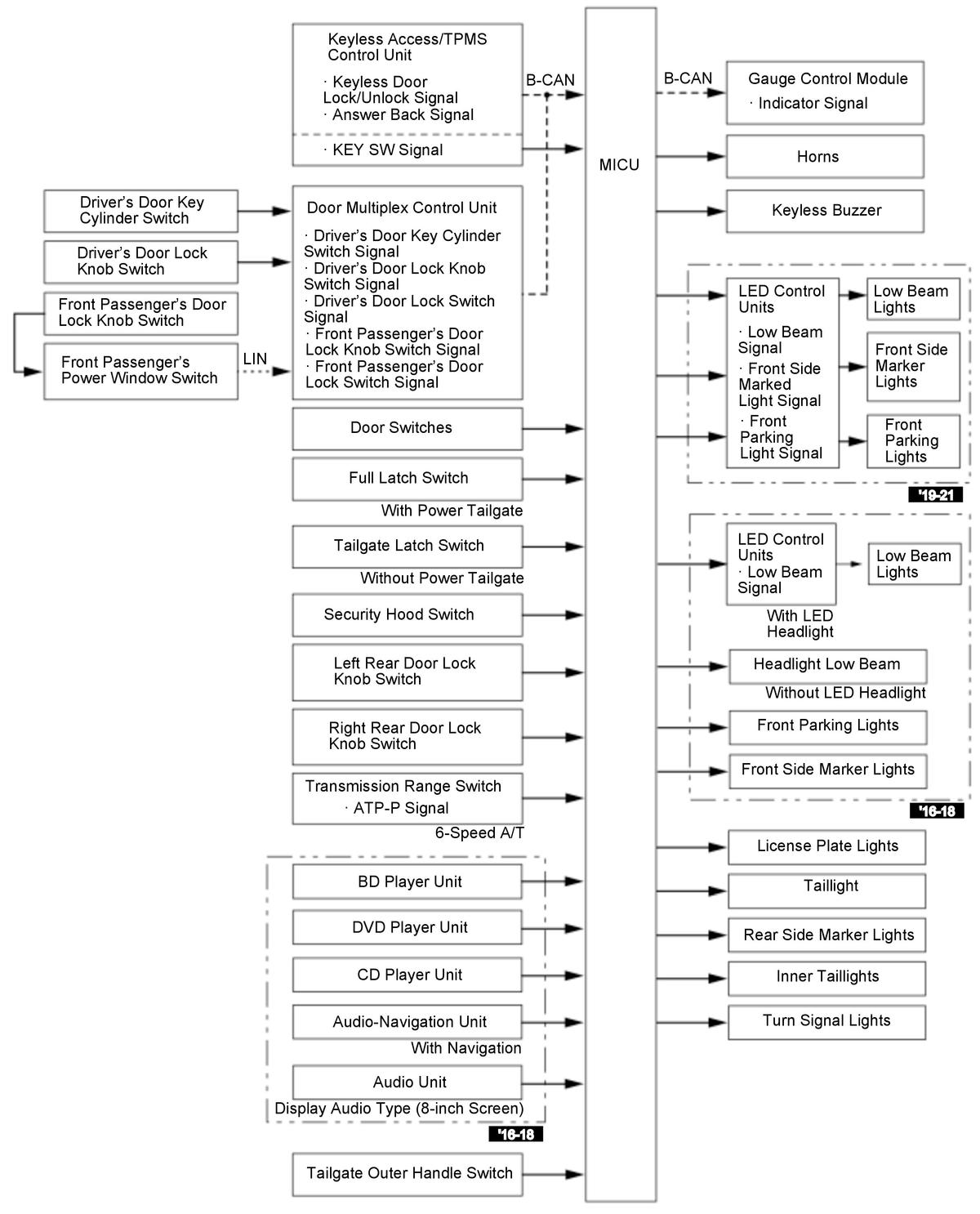

Security Control
›
Notes
Security Control: Notes
When the security alarm is set, the MICU sends the security set signal using the B-CAN.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
