Wireless Charger

Symptom	Diagnostic procedure	Check for
Wireless charger indicator blinks (Flash 1)	Check the wireless charger	Foreign matters between the wireless charger and electronic device Misalignment of the electronic device
Wireless charger indicator blinks (Flash 2)	Check for DTCs with the HDS; if a DTC is indicated, troubleshoot the DTC first.	Wireless charger
Wireless charger indicator does not come on	Symptom troubleshooting	Open in +B BACK UP wire Open in GND wire or poor ground (G402) Wireless charger

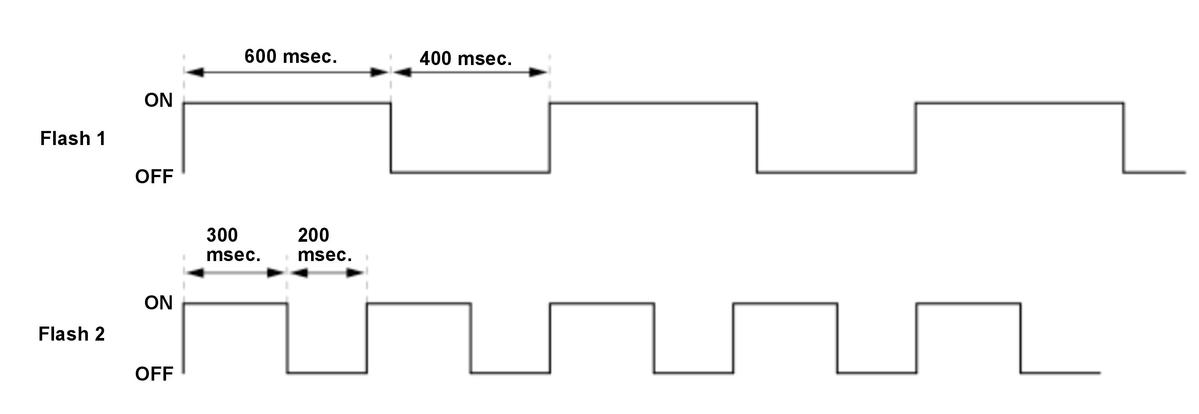

Indicator Flash Pattern

Courtesy of HONDA, U.S.A., INC.
