Removal and Installation

Accelerator Pedal Module - Remove

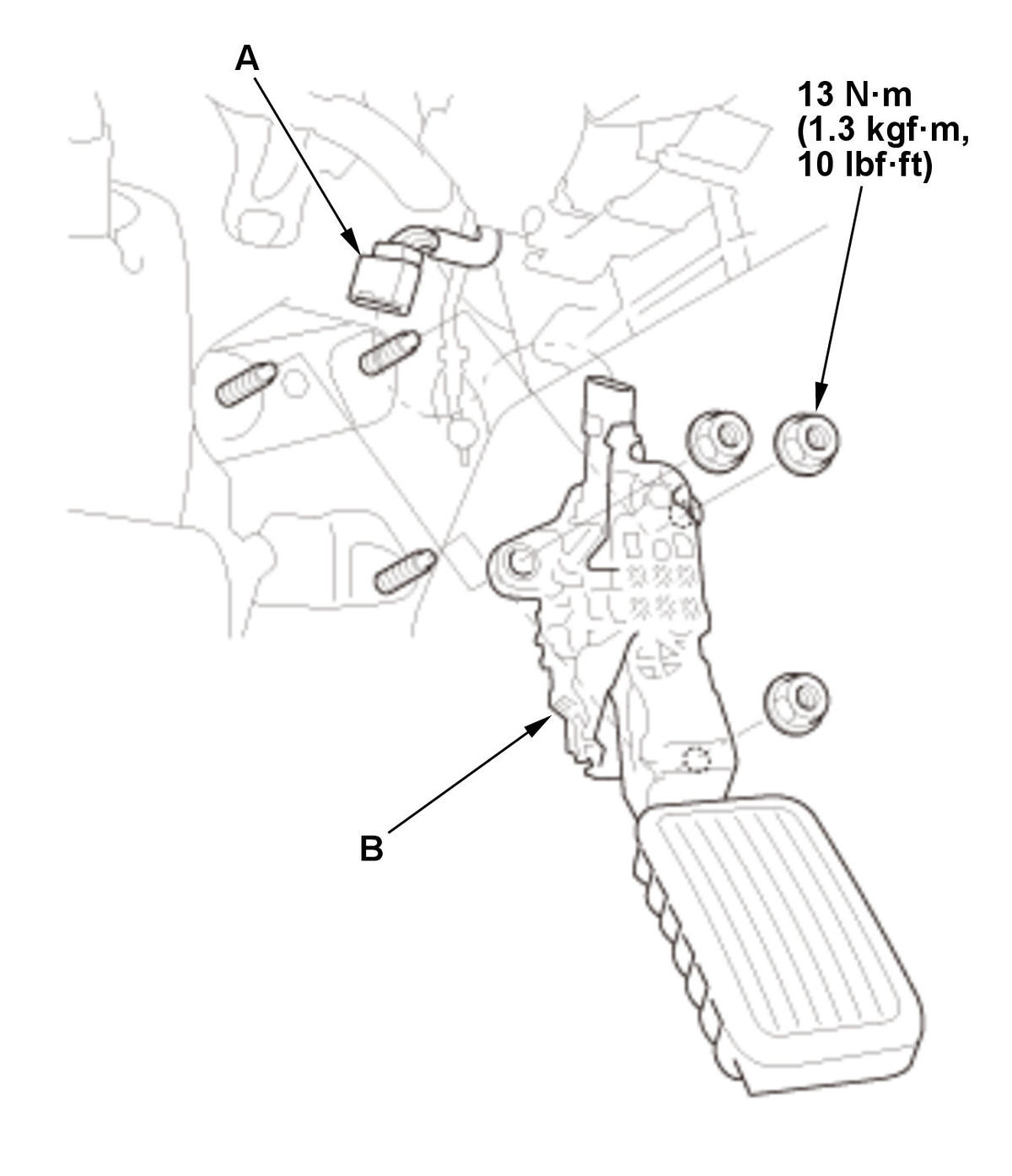

Fig 1: Accelerator Pedal Module With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Disconnect the connector (A).

2. Remove the accelerator pedal module (B).

NOTE: The APP sensor is not available separately. Do not disassemble the accelerator pedal module.

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
