Removal and Installation

  1. Front Camshaft Pulley (CMP Sensor Pulse Plate) and Back Cover - Remove
  2. CMP Sensor - Remove

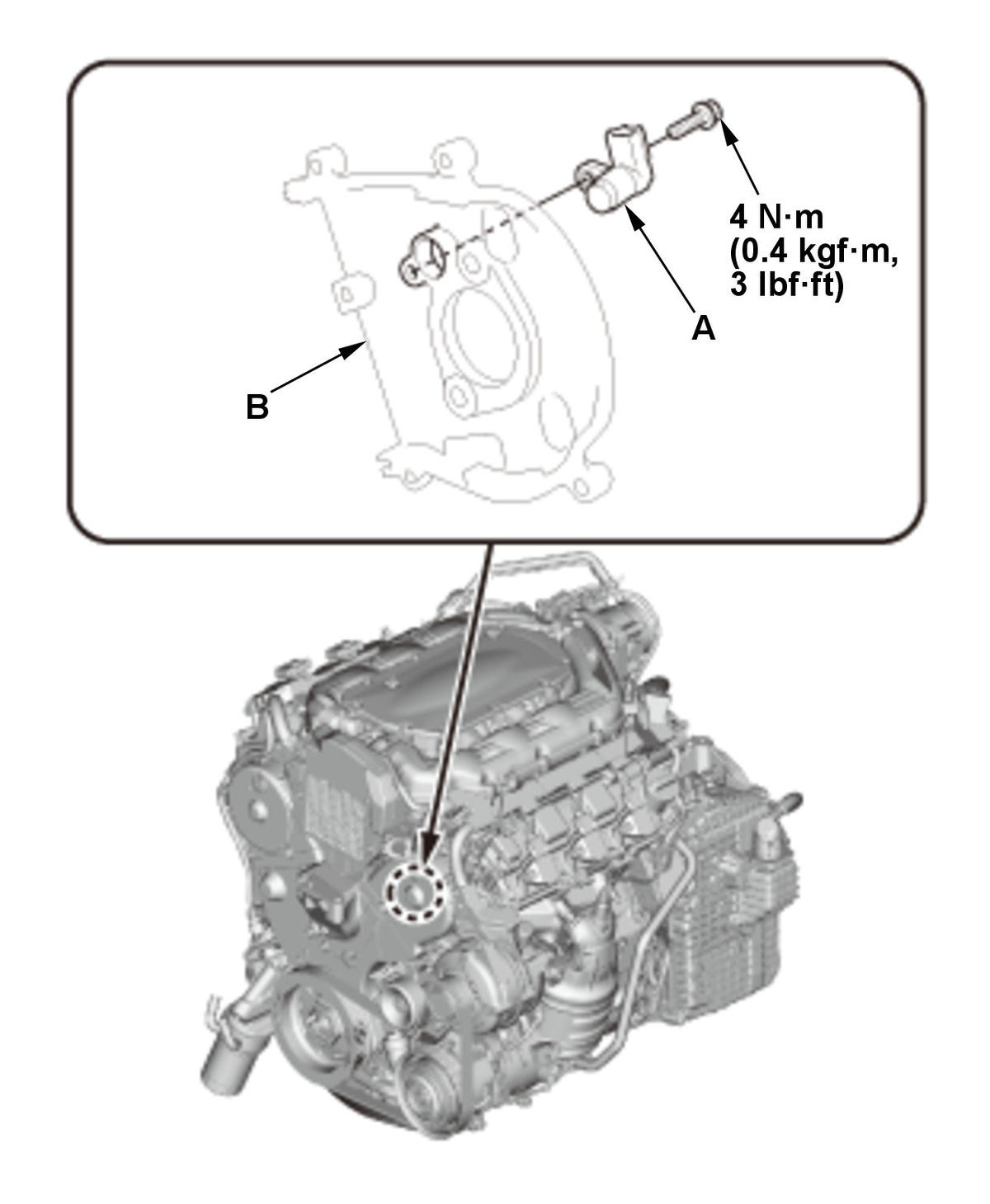

    GHH308449Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the CMP sensor (A) from the back cover (B).
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
  4. CKP Pattern - Clear/Learn
