Removal and Installation

  1. 12 Volt Battery Terminal - Disconnect
  2. Engine Cover - Remove
  3. Injector Control Module Cover - Remove

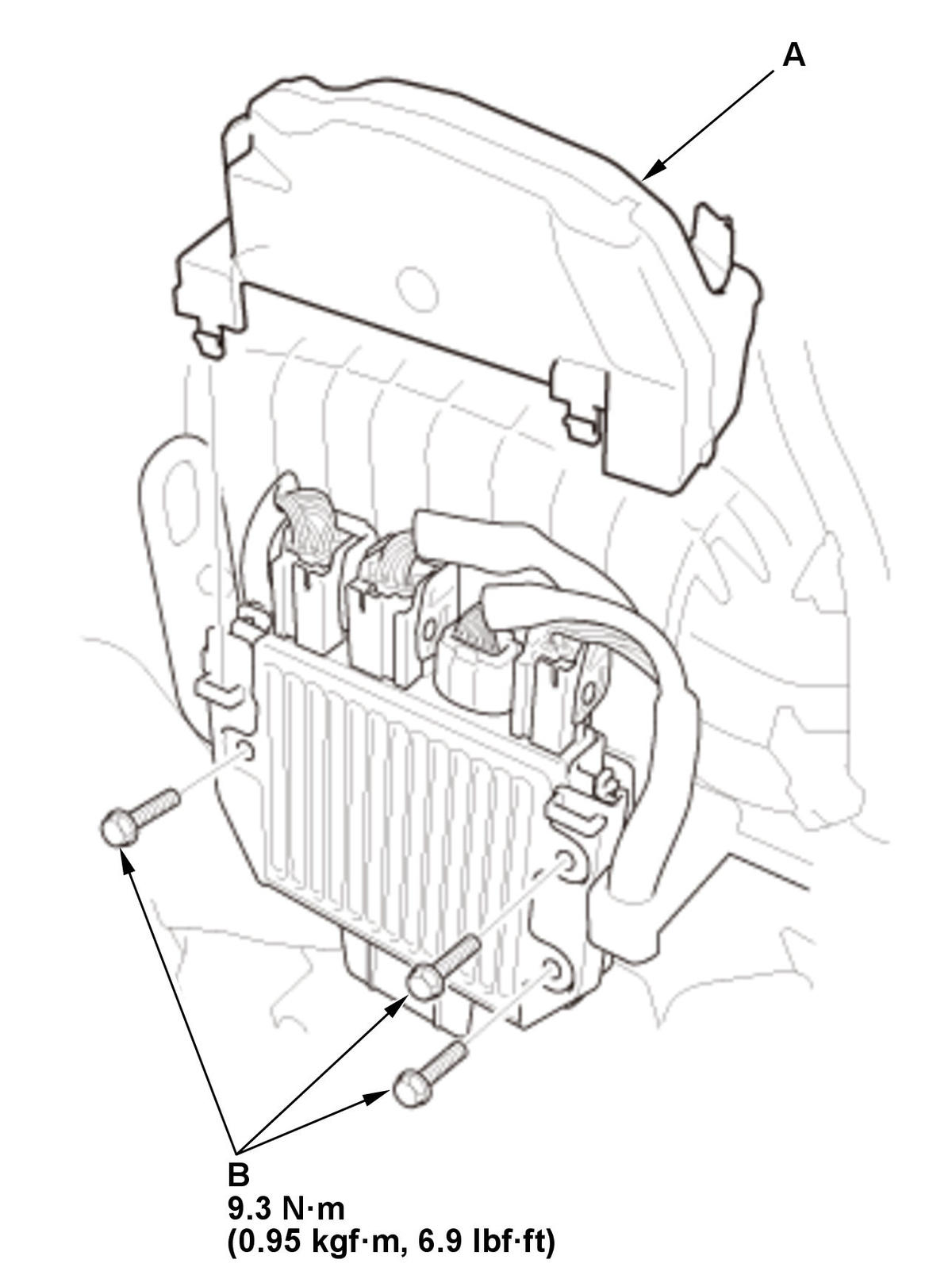

    GHH308559Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the bolts (B).

    2. Remove injector control module cover A.
  4. Injector Control Module - Remove

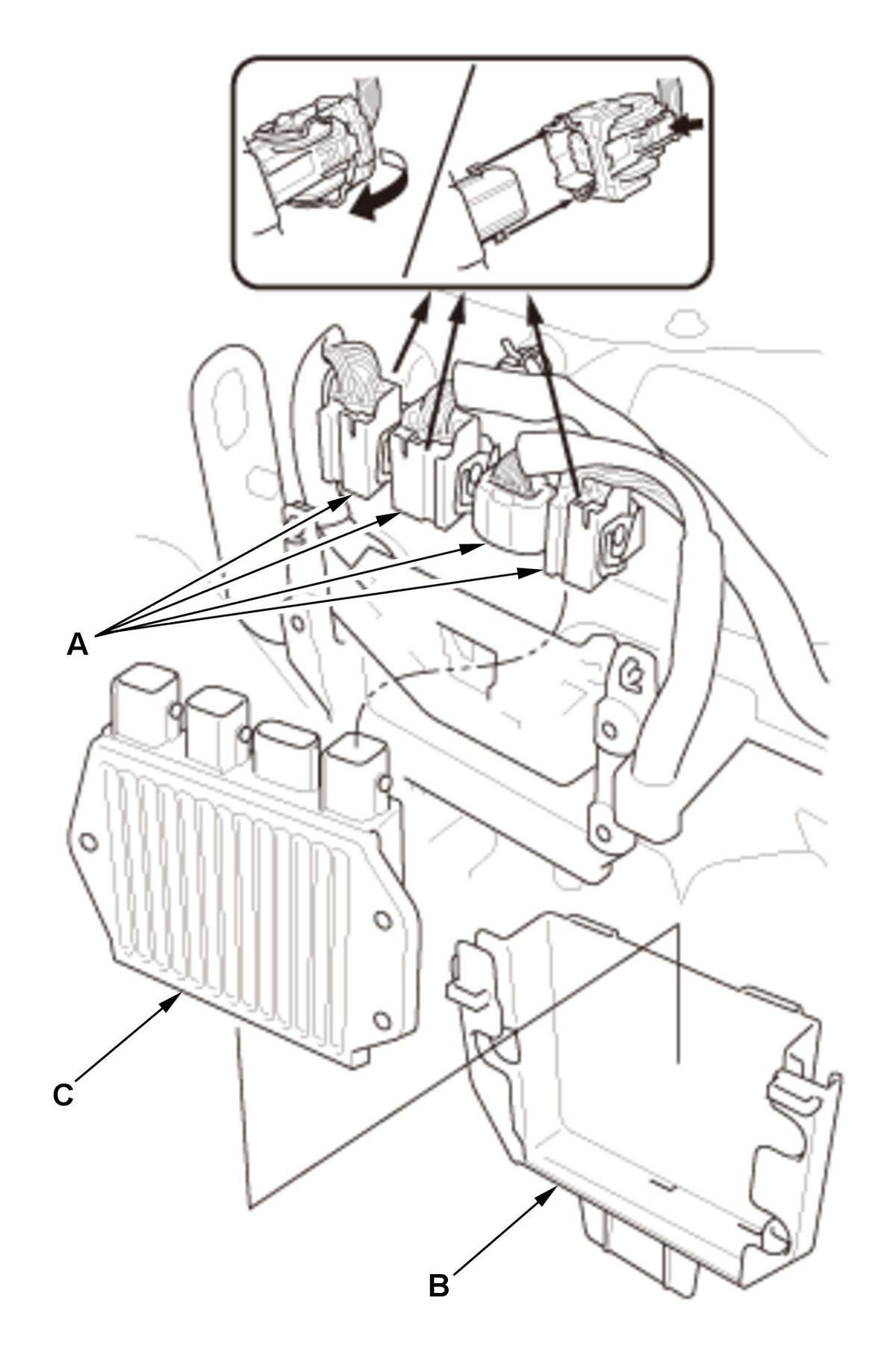

    GHH308560Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the connectors (A), then remove the injector control module (C).

    2. Remove injector control module cover B from the injector control module.
  5. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
