Removal and Installation

  1. Engine Cover - Remove
  2. MAP Sensor - Remove

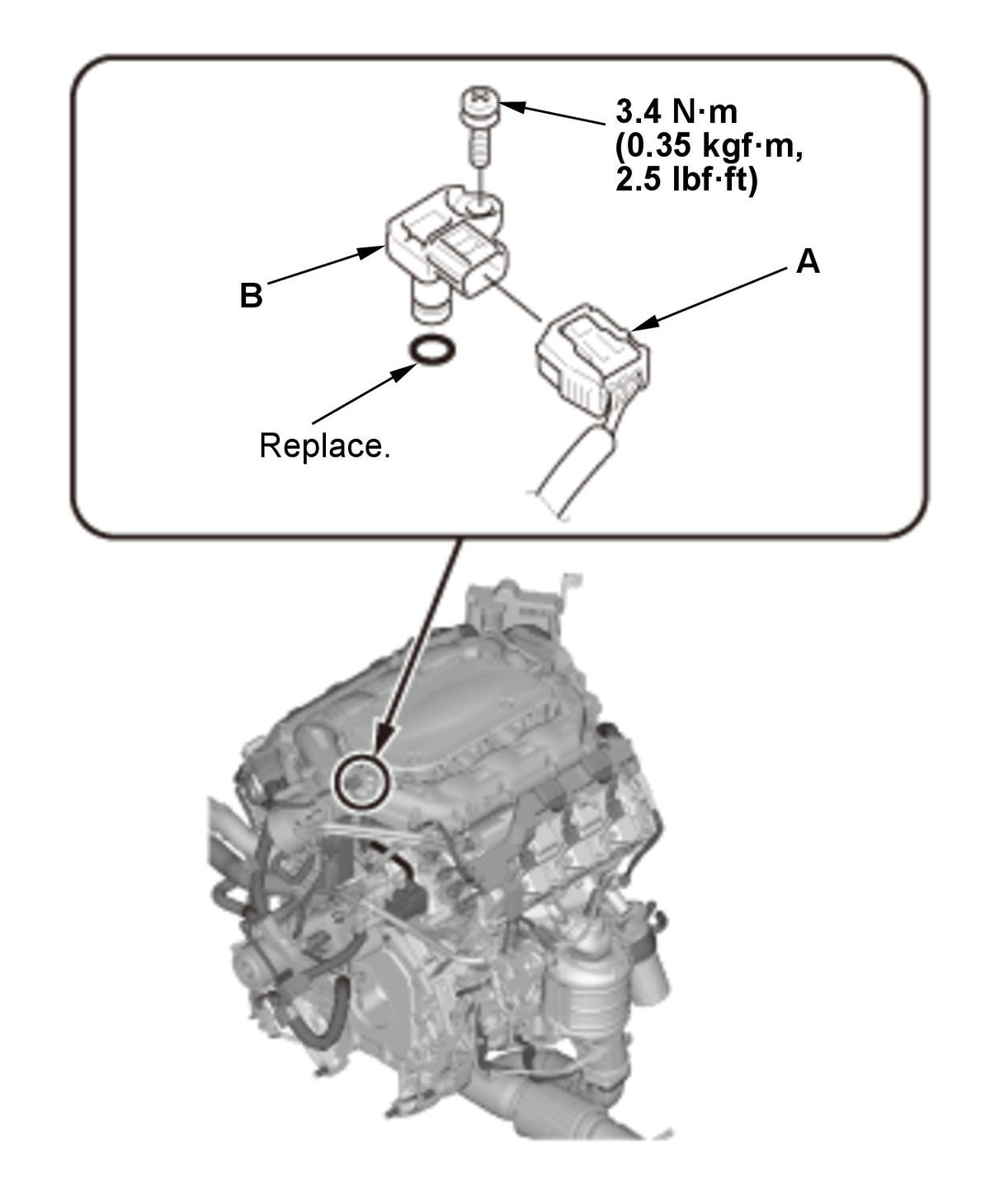

    GHH308606Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the connector (A).

    2. Remove the MAP sensor (B).
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal with a new O-ring.
