Removal and Installation

  1. 12 Volt Battery Terminal - Disconnect
  2. Passenger's Dashboard Undercover - Remove
  3. Stereo Amplifier - Remove (With Stereo Amplifier) - Refer to:

    Stereo Amplifier (2016 2017 2018) or

    Stereo Amplifier (2019 2020 2021)

  4. Engine Mount Control Unit - Remove

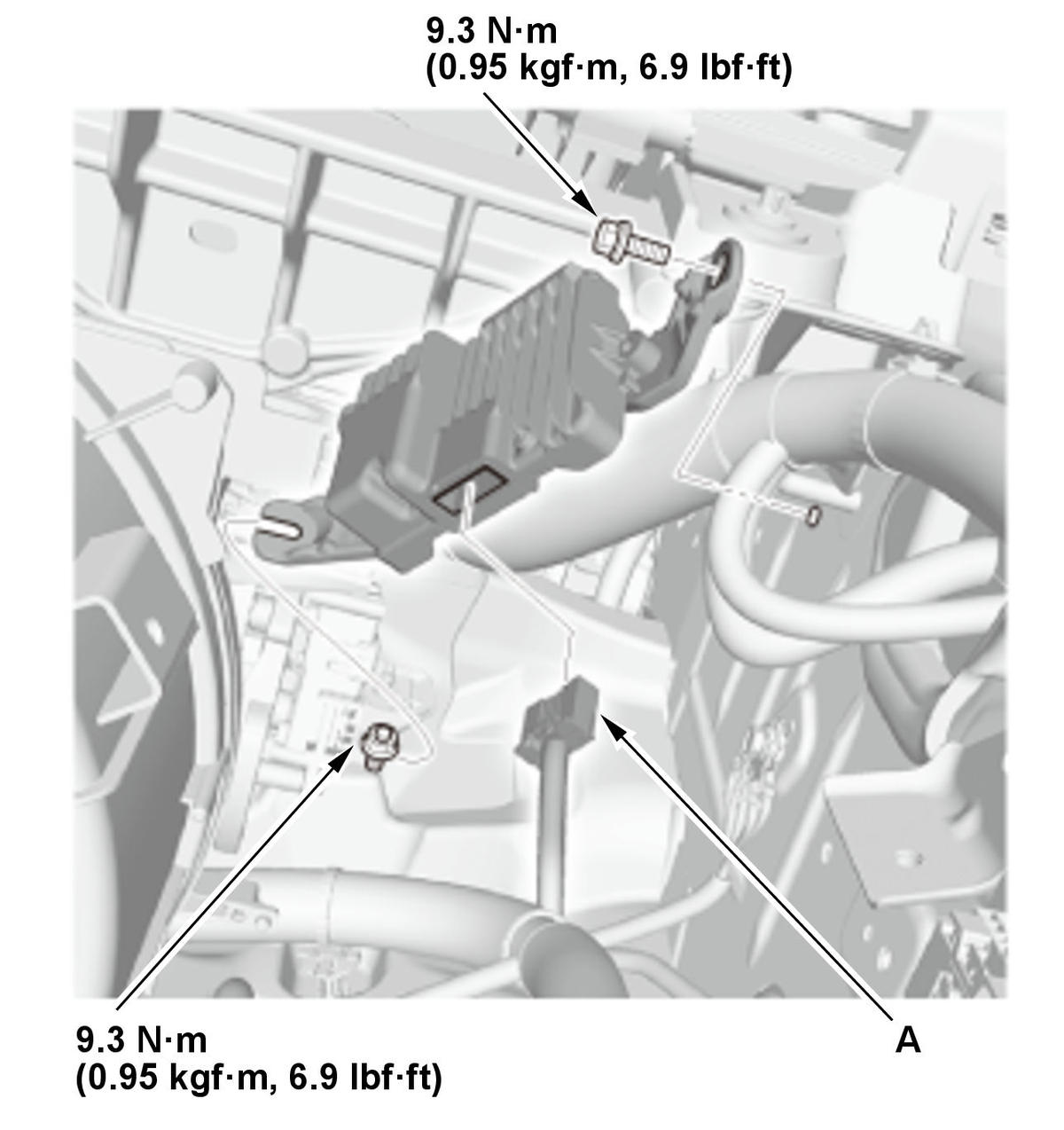

    GHH308735Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the connector (A).

    2. Remove the engine mount control unit.
  5. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
