DTC P0A14

DTC P0A14  : Front Engine Mount Actuator Circuit Malfunction

NOTE:
  • Before you troubleshoot, record all freeze data and any on-board snapshots, and review the general troubleshooting information .
  • When testing the engine mount actuator, be sure to use a Digital volt/ohm meter (DVOM) capable of reading 0.01 ohms change of resistance.
  • Be sure to zero the meter before checking the engine mount actuator.
  • If the vehicle has been driven, allow the front engine mount actuator to cool down for about 2 hours before testing.
DTC Description Confirmed DTC Pending DTC Freeze Frame
P0A14 Front Engine Mount Actuator Circuit Malfunction

DTC (Engine Mount Control Unit)

  1. Problem verification

    - 1. Turn the vehicle to the ON mode.

    - 2. Clear the DTC with the HDS.

    - 3. Start the engine, and let it idle 20 seconds.

    - 4. Check for Pending or Confirmed DTCs with the HDS.

    DTC Description Confirmed DTC Pending DTC Freeze Frame
    P0A14 Front Engine Mount Actuator Circuit Malfunction

    Is DTC P0A14 indicated?

    YES

    Go to step 2.

    NO

    Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the engine mount control unit and the front engine mount actuator.

  2. Shorted wire check (ACM SOL F+, ACM SOL F- lines to power)

    - 1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Disconnect the following connectors.

    Front engine mount actuator 2P connector
    Engine mount control unit 16P connector

    - 3. Turn the vehicle to the ON mode.

    - 4. Measure the voltage between test point 1 and 2.

    Test condition Vehicle ON mode
    Front engine mount actuator 2P connector: disconnected
    Engine mount control unit 16P connector: disconnected
    Test point 1 Engine mount control unit 16P connector No. 3 and No. 5
    Test point 2 Body ground

    Is there battery voltage measured at one or both testing points?

    YES

    Repair a short to power in the ACM SOL F+ wire and/or the ACM SOL F- wire between the engine mount control unit and the front engine mount actuator.

    NO

    Go to step 3.

  3. Shorted wire check (ACM SOL F+ line to ACM SOL F- line)

    - 1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    Front engine mount actuator 2P connector: disconnected
    Engine mount control unit 16P connector: disconnected
    Test point 1 Engine mount control unit 16P connector No. 3
    Test point 2 Engine mount control unit 16P connector No. 5

    Is there continuity?

    YES

    Repair a short in the ACM SOL F+ wire to the ACM SOL F- wire between the engine mount control unit and the front engine mount actuator.

    NO

    Go to step 4.

  4. Front engine mount actuator check

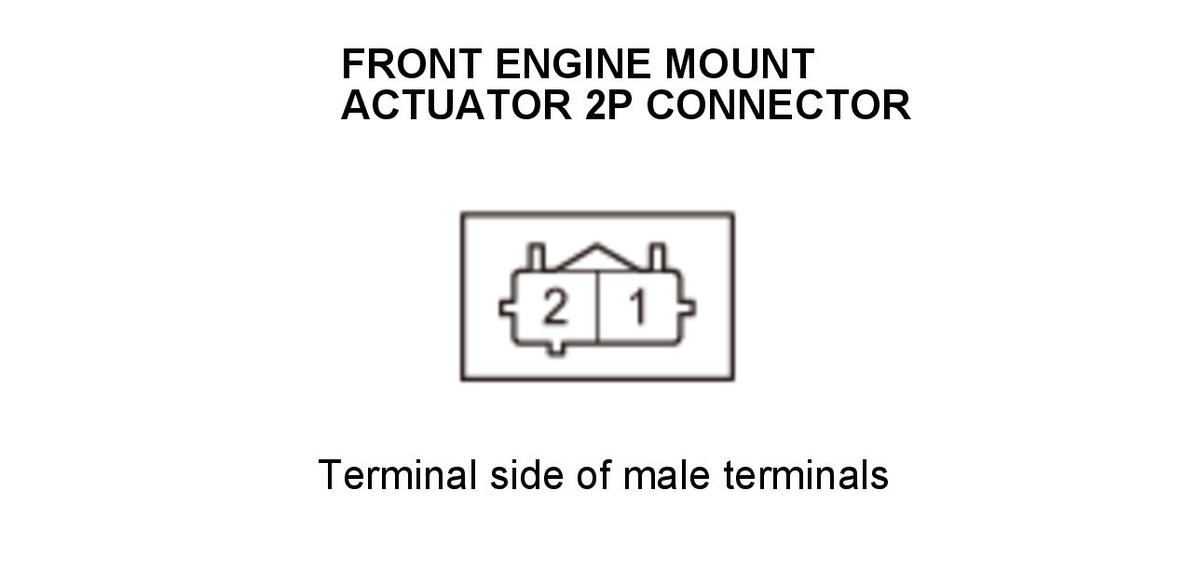

    - 1. At the engine mount actuator side, measure the resistance between test points 1 and 2.

    NOTE: Zero-out the meter before testing to adjust the meter to the test leads.
    Test condition Vehicle OFF (LOCK) mode
    Front engine mount actuator 2P connector: disconnected
    Engine mount control unit 16P connector: disconnected
    Test point 1 Front engine mount actuator 2P connector No. 1
    Test point 2 Front engine mount actuator 2P connector No. 2
    GHH308682Courtesy of HONDA, U.S.A., INC.

    Is there about 1.37- 1. 51 Ω (68 °F/20 °C)?

    YES

    Check for poor connections or loose terminals at the engine mount control unit and the front engine mount actuator. If it is OK, replace the engine mount control unit .

    NO

    Replace the front engine mount .
