Removal and Installation

  1. Engine Cover - Remove
  2. Engine Harness Holder - Lift

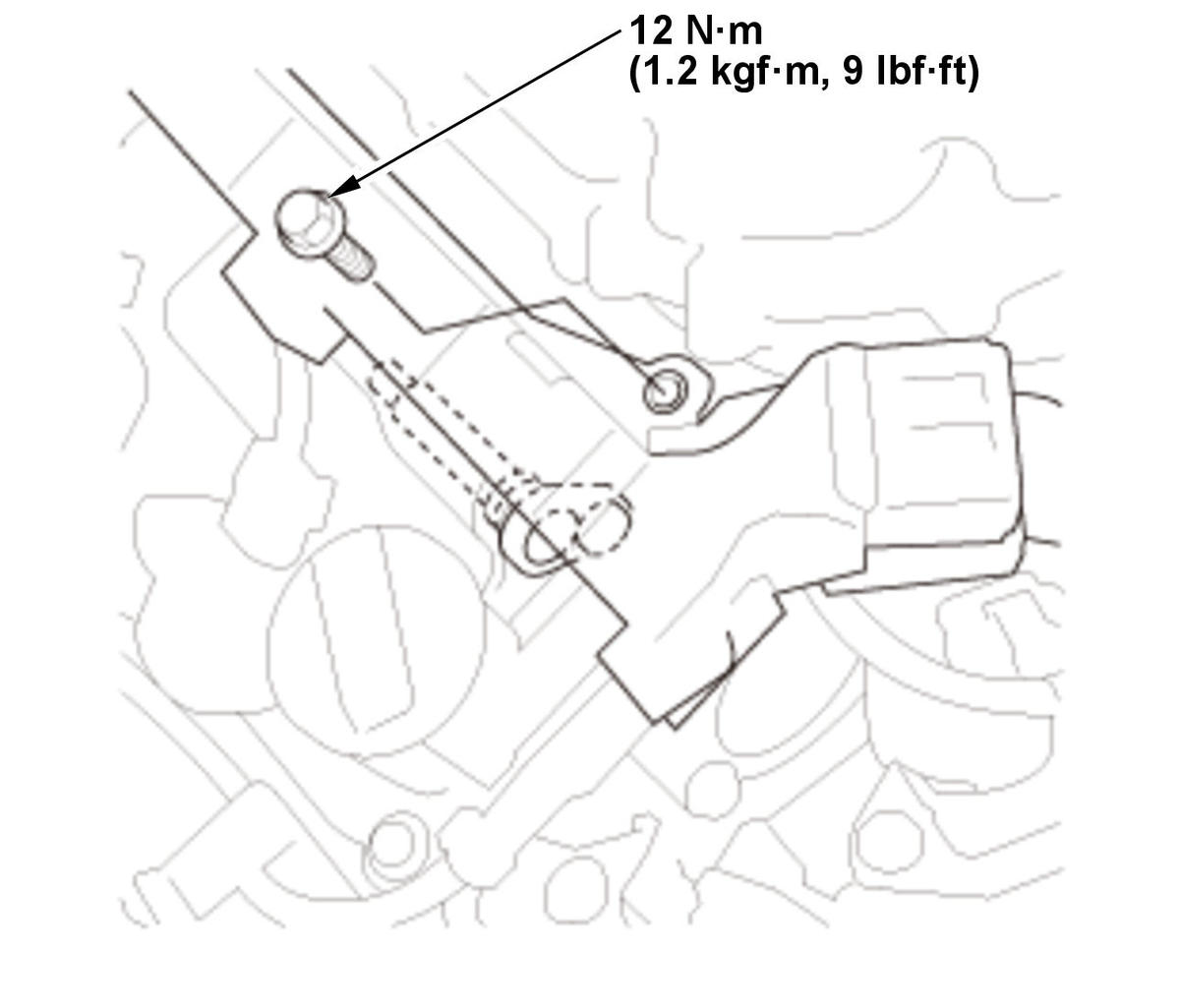

    Fig 1: Engine Harness Holder With Torque Specifications
    GHH308613Courtesy of HONDA, U.S.A., INC.
  3. PCV Valve - Remove

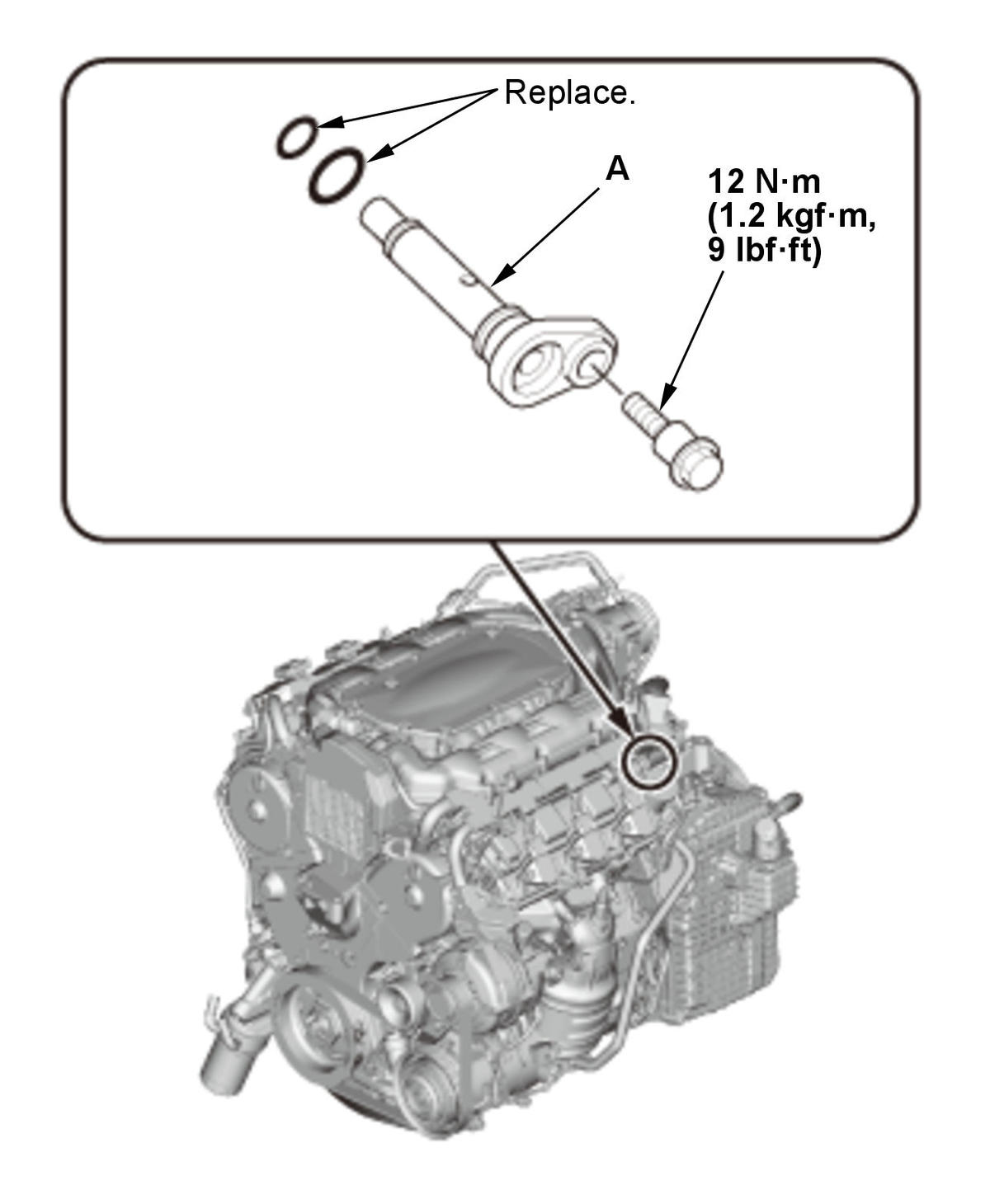

    Fig 2: PCV Valve With Torque Specifications
    GHH308614Courtesy of HONDA, U.S.A., INC.
    1. Remove the PCV valve (A).

    NOTE:  Take care not to spill any oil on the hot exhaust manifold.
  4. All Removed Parts - Install
    1. Install the parts in the reverse order of removal with new O-rings.

    NOTE:  Make sure the O-rings are in place.
