Engine Block Assembly

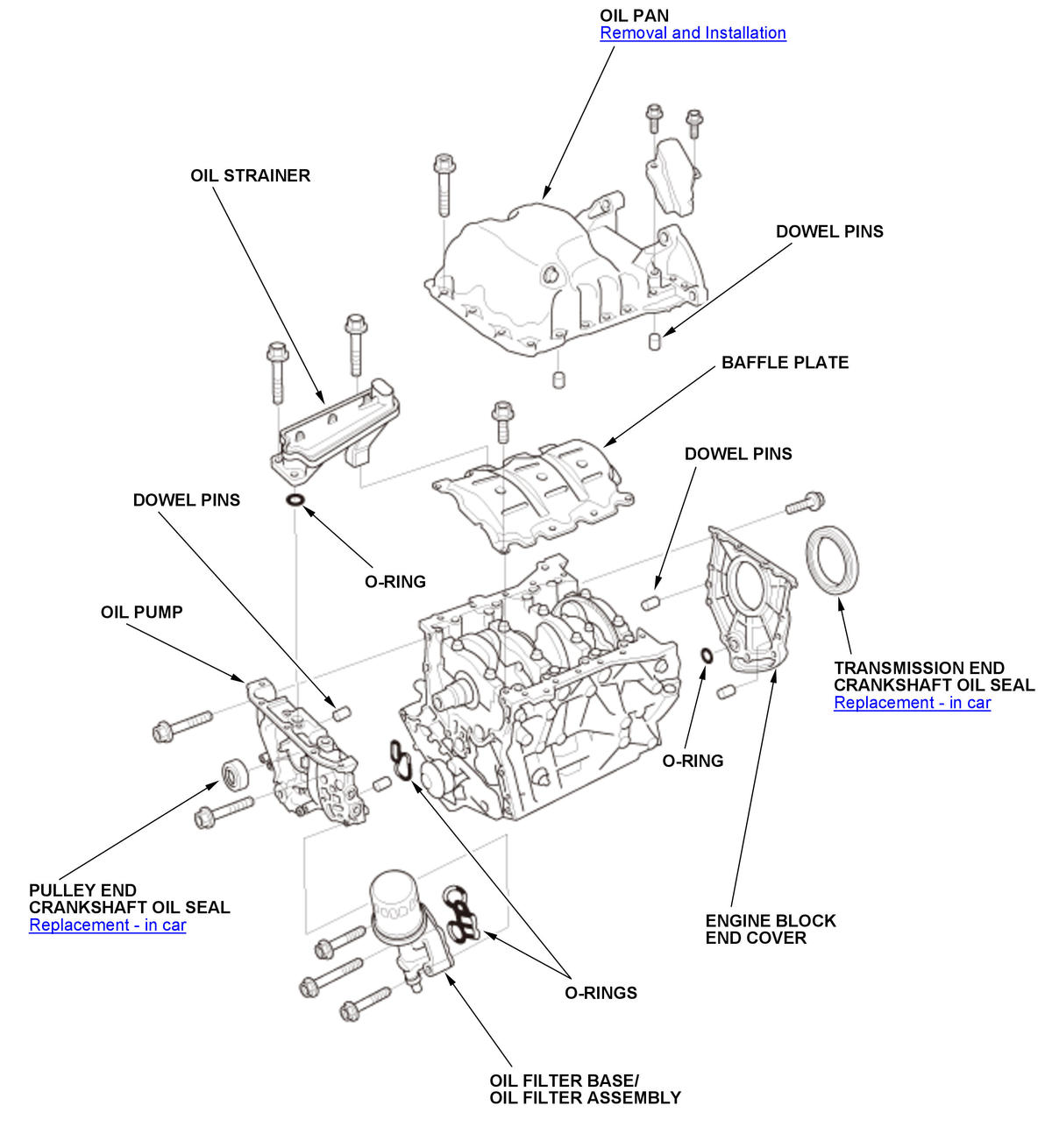

GHH308254Courtesy of HONDA, U.S.A., INC.

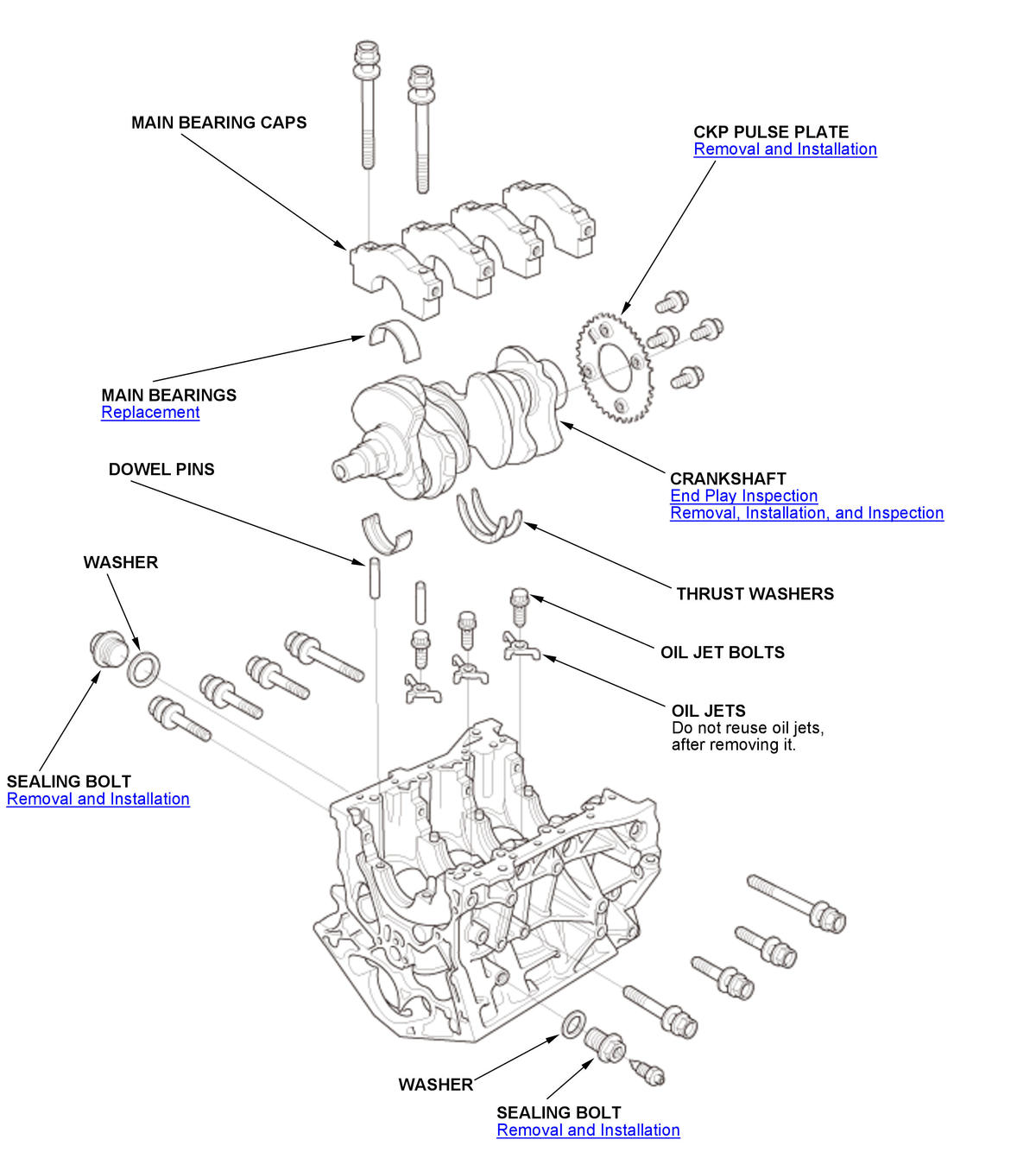

GHH308255Courtesy of HONDA, U.S.A., INC.

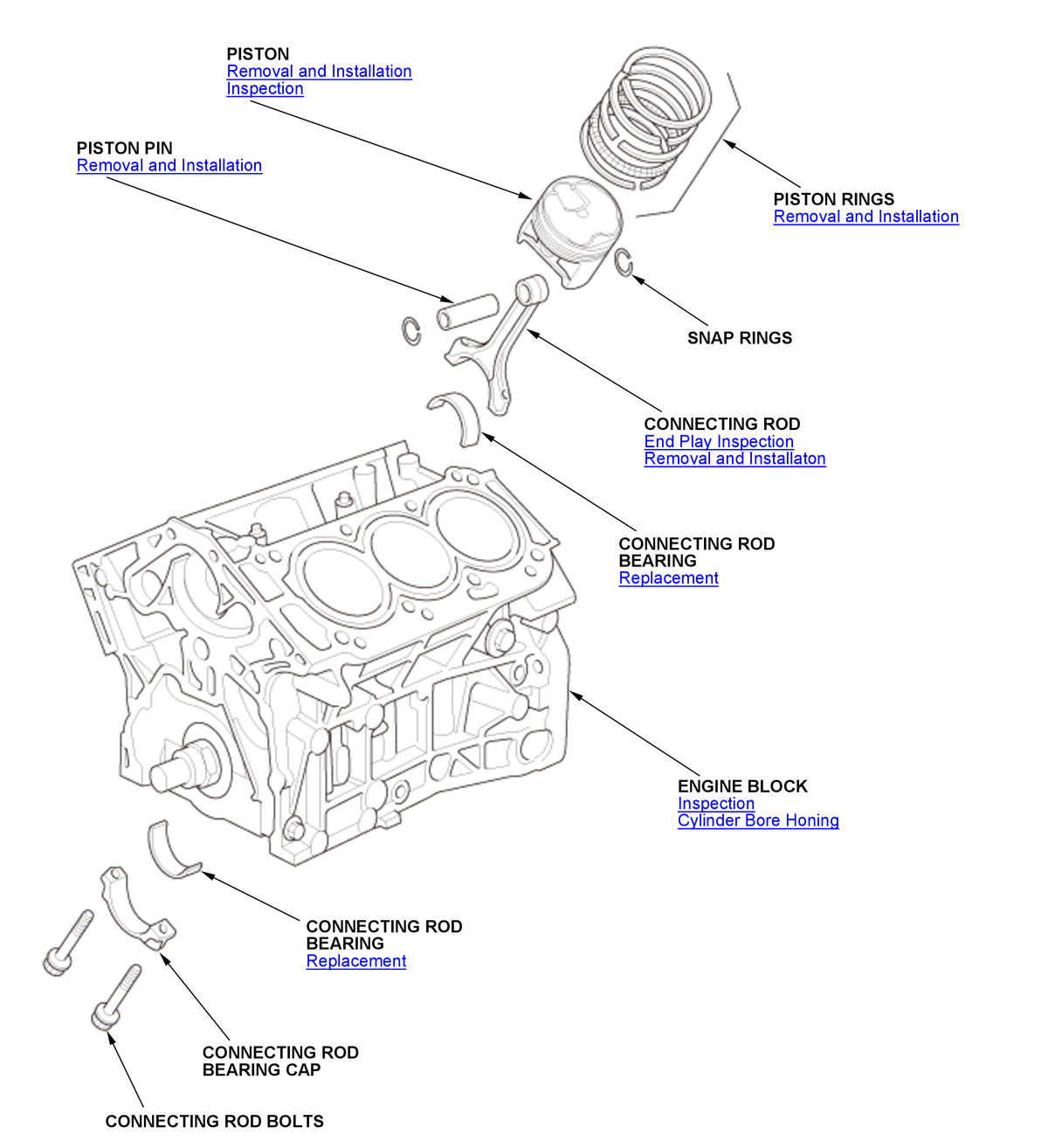

GHH308256Courtesy of HONDA, U.S.A., INC.
