DTC P2729, P2730

DTC P2729  : A/T Clutch Pressure Control Solenoid Valve F Low Input DTC P2730  : A/T Clutch Pressure Control Solenoid Valve F High Input

DTC (A/T)

1. Problem verification

   - 1. Turn the vehicle to the ON mode.

   - 2. Clear the DTC with the HDS.

   - 3. Turn the vehicle to the OFF (LOCK) mode.

   - 4. Turn the vehicle to the ON mode, and wait for several seconds.

   - 5. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P2729 A/T Clutch Pressure Control Solenoid Valve F Low Input
   P2730 A/T Clutch Pressure Control Solenoid Valve F High Input

   Is DTC P2729 or P2730 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections and loose terminals between the sensor unit and the TCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

2. Open wire check (PLA, VBSOL lines)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connectors.

   TCM subharness 26P connector

   TCM 58P connector

   - 3. Check for continuity between test points 1 and 2 individually.

   Test condition	Vehicle OFF (LOCK) mode
   	TCM subharness 26P connector: disconnected
   	TCM 58P connector: disconnected

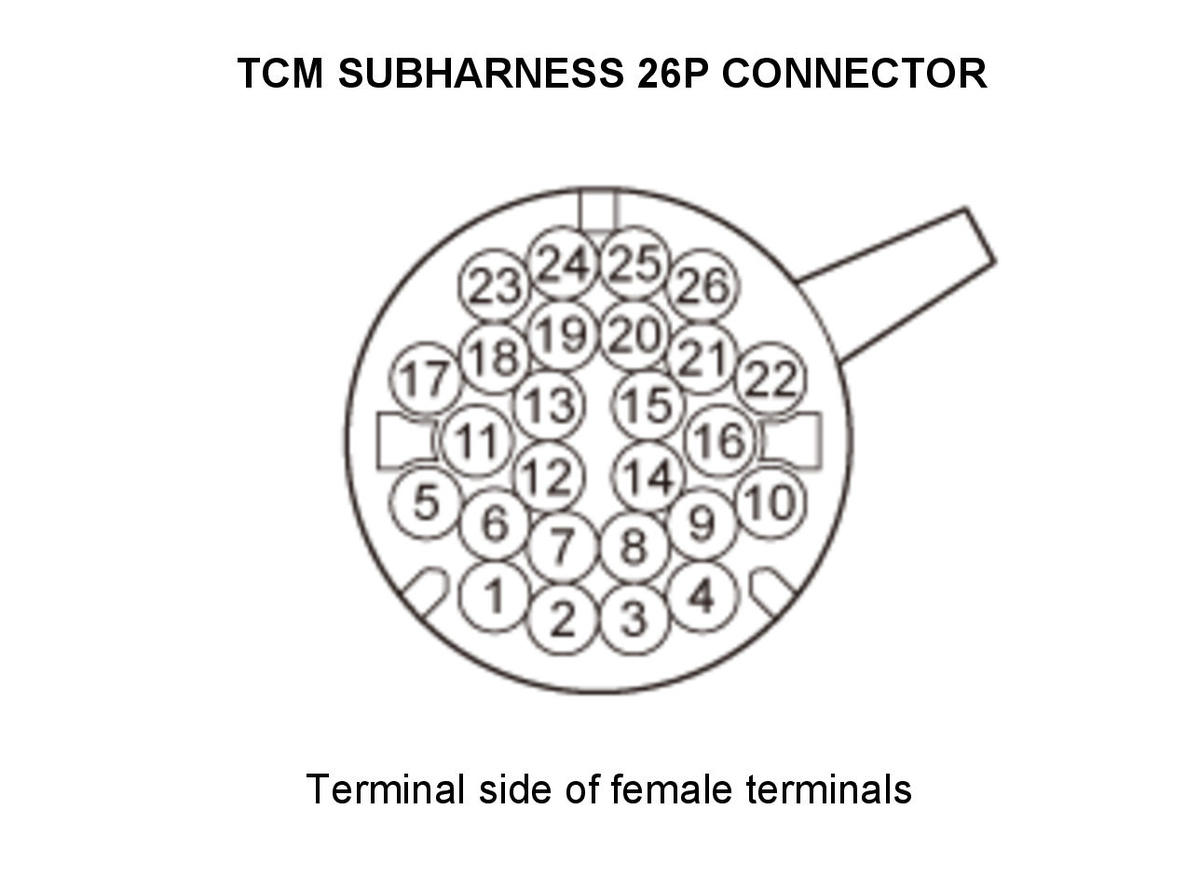

   Test point 1	TCM subharness 26P connector No. 1
   Test point 2	TCM 58P connector No. 3 - Refer to: A/T Control System Connector for Inputs and Outputs (2016 2017 2018), or A/T Control System Connector for Inputs and Outputs (2019), or A/T Control System Connector for Inputs and Outputs (2020 2021) .

   Test point 1	TCM subharness 26P connector No. 9
   Test point 2	TCM 58P connector No. 52 - Refer to: A/T Control System Connector for Inputs and Outputs (2016 2017 2018), or A/T Control System Connector for Inputs and Outputs (2019), or A/T Control System Connector for Inputs and Outputs (2020 2021) .

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The PLA and VBSOL wires are not open. Go to step 3.

   NO

   Repair an open in the PLA and/or VBSOL wire between the sensor unit and the TCM.

3. Shorted wire check (PLA, VBSOL lines)

   - 1. Check for continuity between the following test points and body ground individually.

   Test condition	Vehicle OFF (LOCK) mode
   	TCM subharness 26P connector: disconnected
   	TCM 58P connector: disconnected

   Connector	Terminal
   TCM 58P connector - Refer to: A/T Control System Connector for Inputs and Outputs (2016 2017 2018), or A/T Control System Connector for Inputs and Outputs (2019), or A/T Control System Connector for Inputs and Outputs (2020 2021) .	No. 3
   	No. 52

   Is there continuity?

   YES

   Repair a short to ground in the PLA and/or VBSOL wire between the sensor unit and the TCM.

   NO

   The PLA and VBSOL wires are OK. Replace the hydraulic control unit .
