Steering System - Service, Testing And Troubleshooting
›
Description
›
EPS System Description - System Diagram
EPS System Description - System Diagram

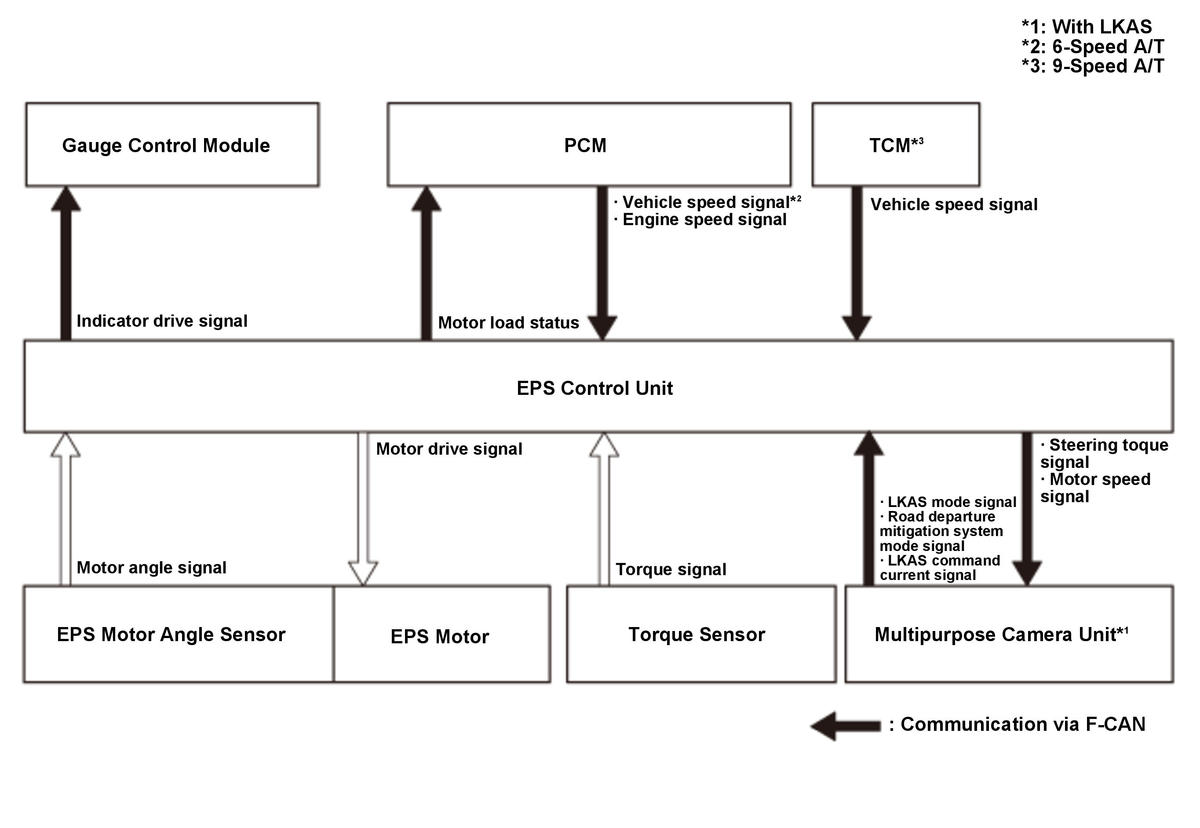

The system diagram of the EPS system is shown below.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
