DTC B1664

DTC B1664  : Rear interior LF antenna circuit open

DTC (Keyless Access Control Unit)

NOTE:  If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A .

1. Problem verification

   -1. Clear the DTCs with the HDS.

   Clear DTCs

   -2. Select the KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START system select menu with the HDS, and enter the SELF CHECK.

   One-Push - KEYLESS ACCESS CONTROL UNIT - SELF CHECK

   -3. Do the SELF CHECK.

   -4. Check for DTCs with the HDS.

   DTC Description	DTC
   B1664 Rear interior LF antenna circuit open

   Is DTC B1664 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for loose or poor connections.

2. Keyless access/TPMS control unit RR INT LF+, RR INT LF- line output check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Rear interior LF antenna 2P connector

   -3. Turn the vehicle to the ON mode.

   -4. Select KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START system select menu with the HDS, and enter FUNCTIONAL TESTS.

   One-Push - KEYLESS ACCESS CONTROL UNIT - FUNCTIONAL TESTS

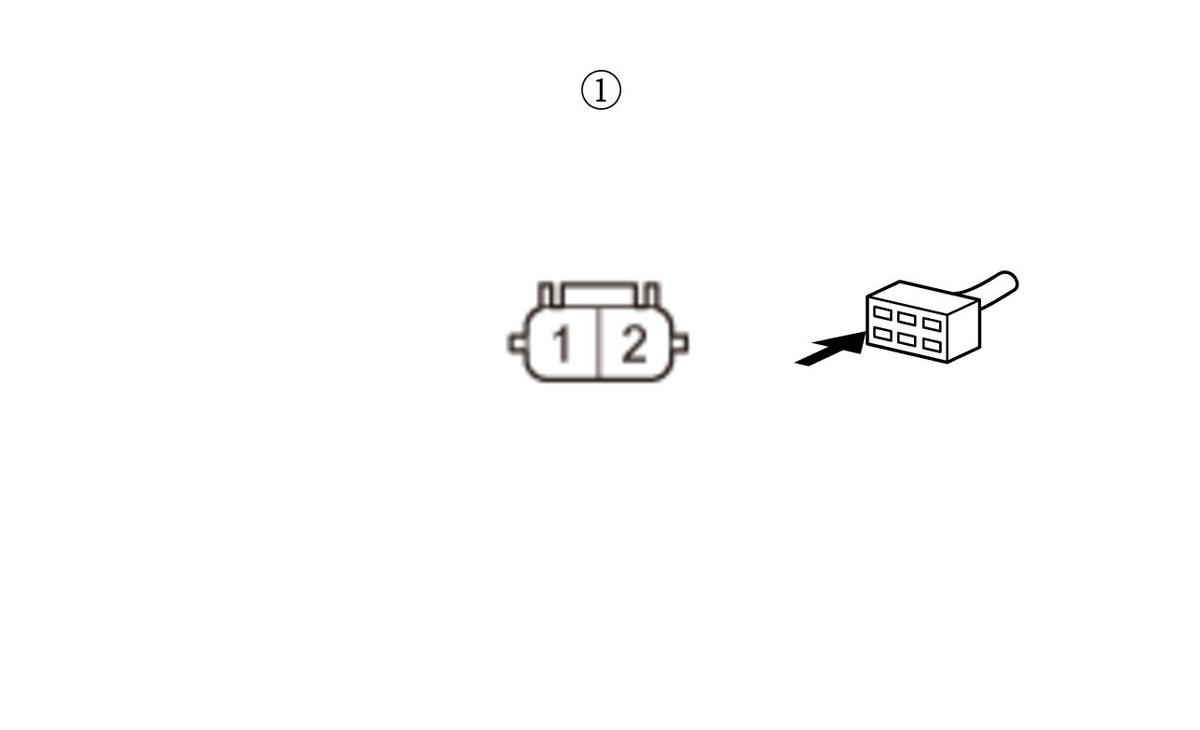

   -5. Connect the voltmeter to test points 1 and 2.

   Test condition	Vehicle ON mode Rear interior LF antenna 2P connector: disconnected
   Test point 1	Rear interior LF antenna 2P connector (female terminals) No. 2:
   Test point 2	Rear interior LF antenna 2P connector (female terminals) No. 1:

   Courtesy of HONDA, U.S.A., INC.

   -6. Select CABIN REAR ANTENNA L DC OUTPUT with the HDS.

   Is there voltage?

   YES

   Faulty rear interior LF antenna; replace the rear interior LF antenna .

   NO

   Go to step 3.

3. Open wire check (RR INT LF+, RR INT LF- lines)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Connect terminals A and B with a jumper wire.

   Terminal A	Rear interior LF antenna 2P connector (female terminals) No. 2:
   Terminal B	Rear interior LF antenna 2P connector (female terminals) No. 1:

   Courtesy of HONDA, U.S.A., INC.

   -3. Disconnect the following connector.

   Keyless access/TPMS control unit connector A (32P)

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Keyless access/TPMS control unit connector A (32P): disconnected Rear interior LF antenna 2P connector: disconnected
   Test point 1	Keyless access/TPMS control unit connector A (32P) No. 11
   Test point 2	Keyless access/TPMS control unit connector A (32P) No. 27

   Is there continuity?

   YES

   The RR INT LF+ and RR INT LF- wires are OK. Replace the keyless access/TPMS control unit .

   NO

   Repair an open or high resistance in the wire.
