Engine Oil Pan Removal and Installation: Installation

NOTE:

Where icon is shown, further information shown below.

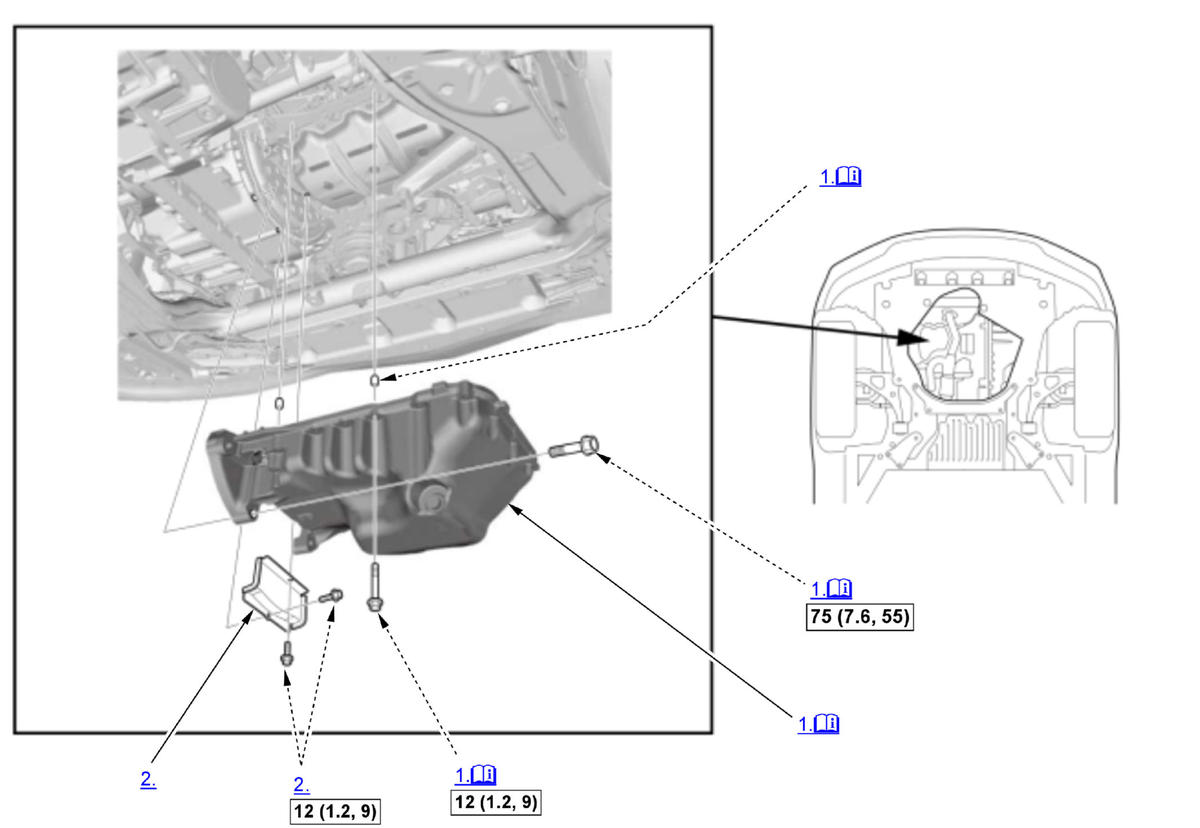

Fig 1: Engine Oil Pan Replacement Components With Torque Specifications
GHH455065Courtesy of HONDA, U.S.A., INC.
Detailed information, notes, and precautions
Torque: N.m (kgf.m, lbf.ft)
  1. Oil Pan - Install

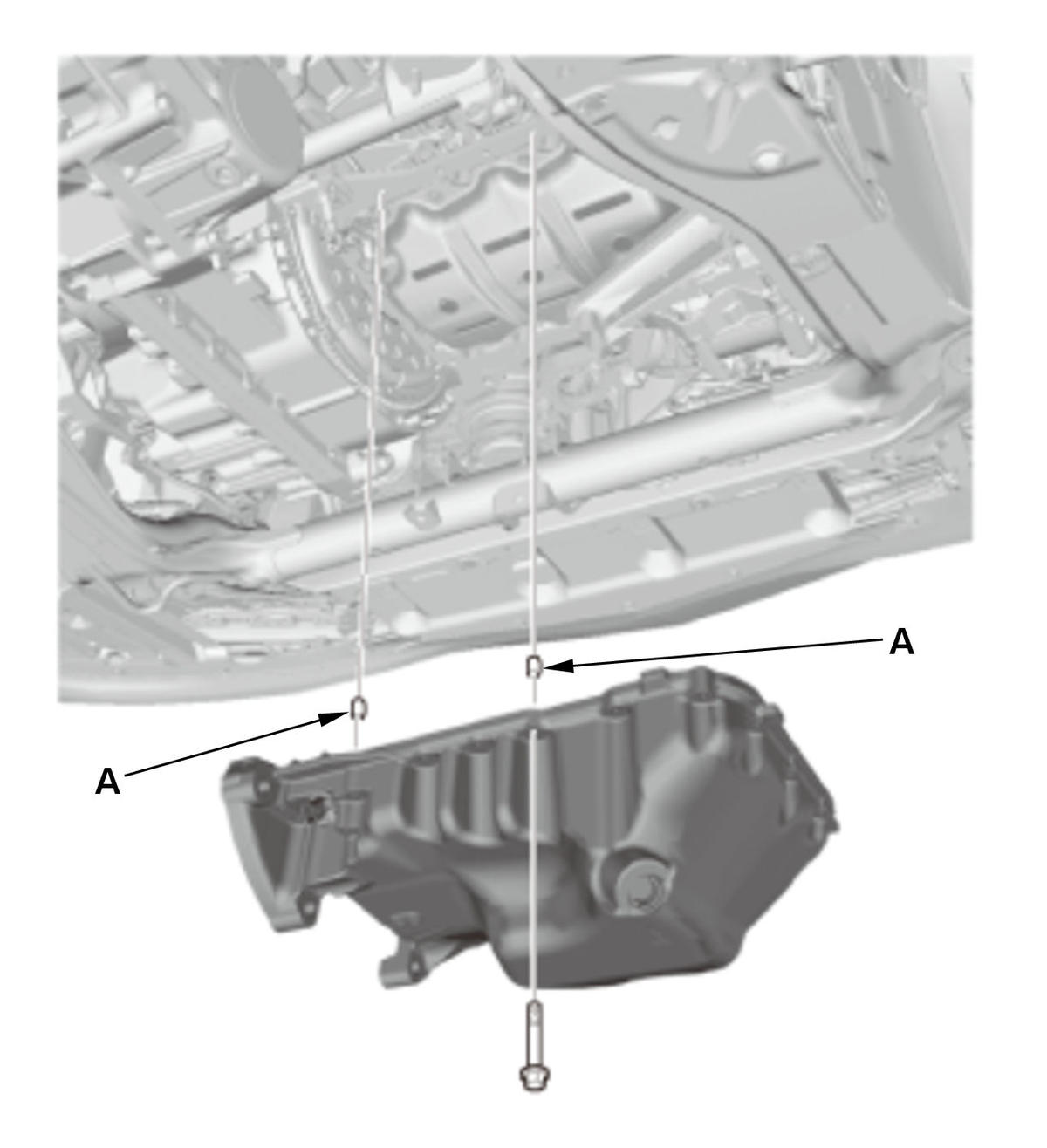

    GHH455066Courtesy of HONDA, U.S.A., INC.
    		 1. Apply liquid gasket

    to the oil pan mating surface of the engine block and to the inside edge of the threaded bolt holes.

    2. Install the dowel pins (A).

    3. Install the oil pan.

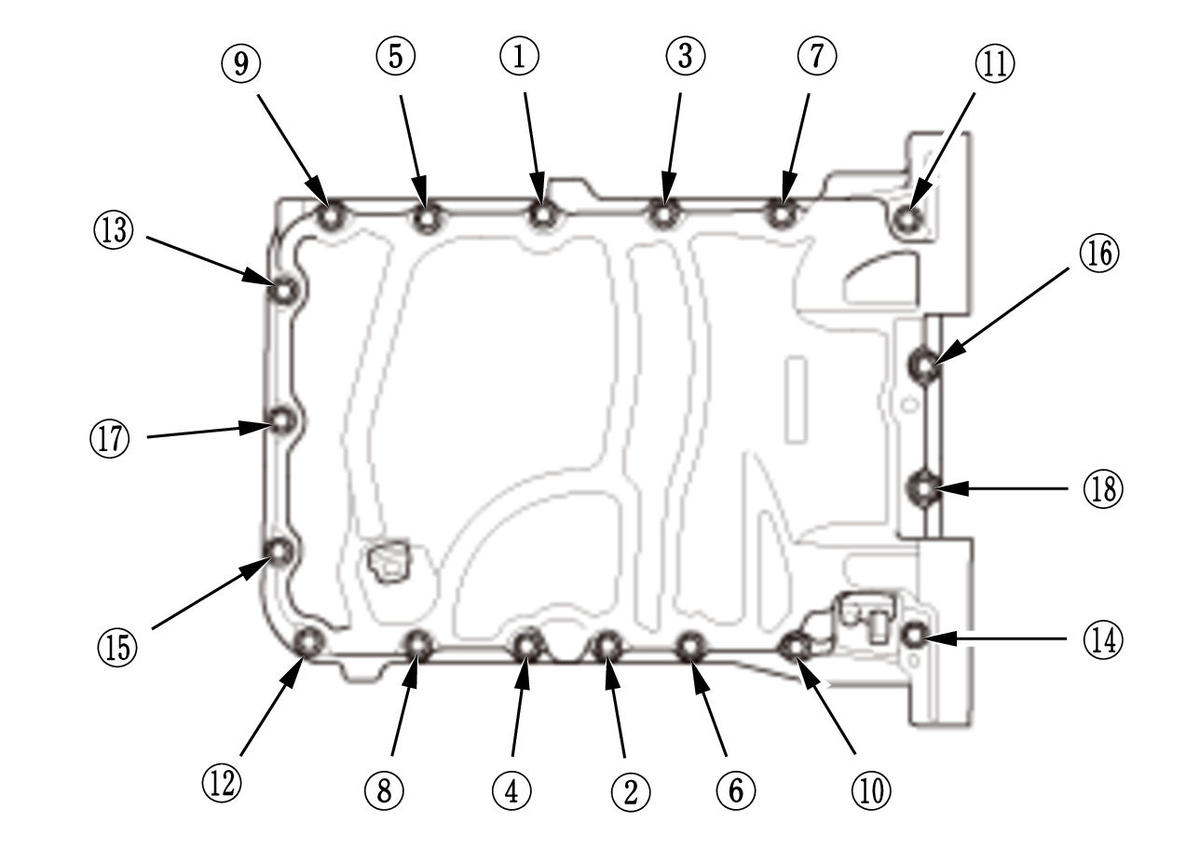

    GHH455067Courtesy of HONDA, U.S.A., INC.
    		 4. Tighten the bolts in three steps; tighten the bolts until the bolts sit on the oil pan, tighten the bolts until the gasket is compressed, tighten the bolts to specified torque.

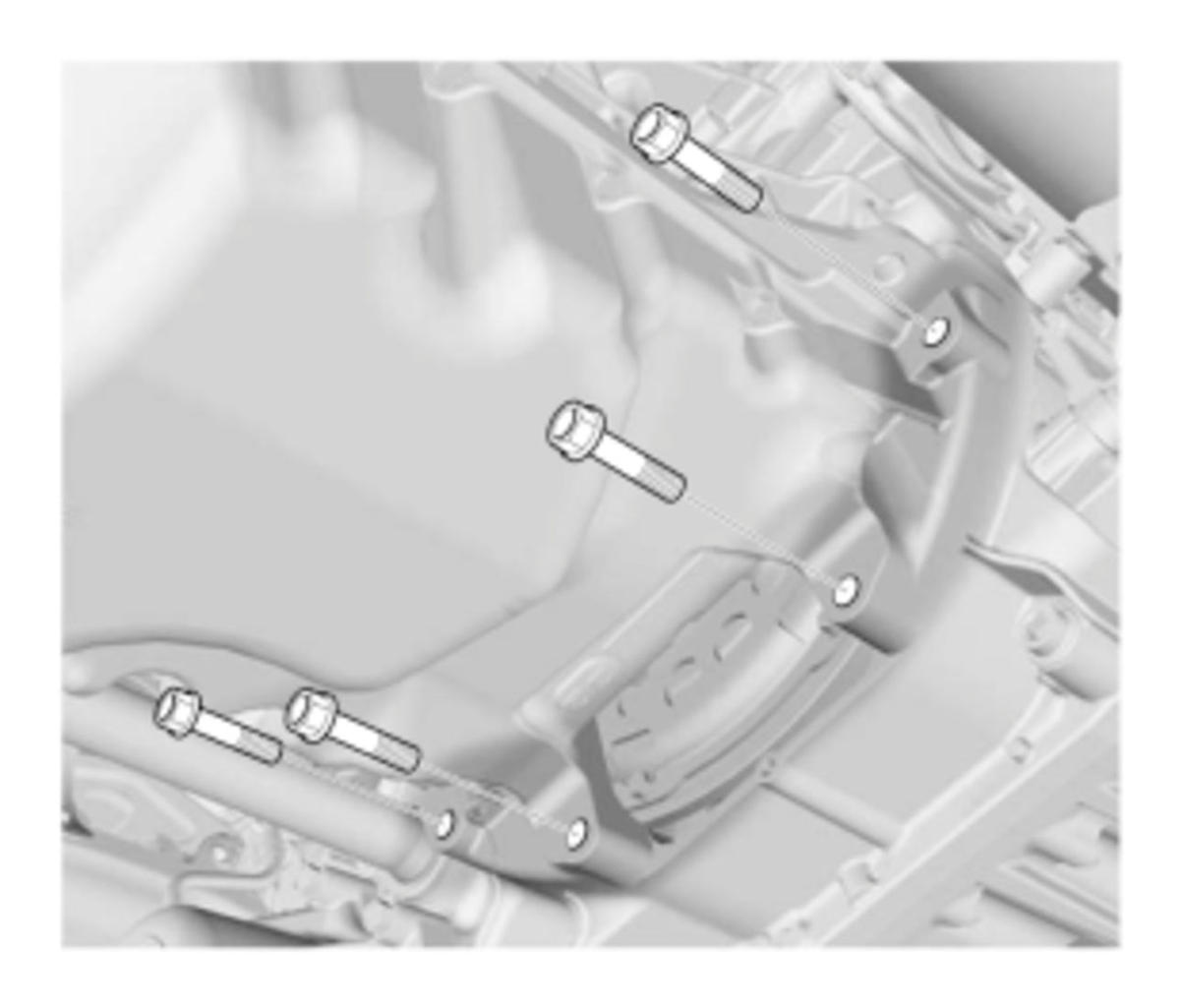

    GHH455068Courtesy of HONDA, U.S.A., INC.
    		 5. Tighten the transmission assembly mounting bolts.
  2. Torque Converter Cover - Install
  3. Connector (CKP Sensor) - Connect
  4. Under-Floor TWC - Install
  5. Engine Oil - Refill
