Integrated Control Systems - Testing & Troubleshooting
›
Component Location Index
›
Driving Position Memory System (DPMS) Component Location Index (Driving Position Memory System (DPMS)) (2017 2018 2019)
Driving Position Memory System (DPMS) Component Location Index (Driving Position Memory System (DPMS)) (2017 2018 2019)

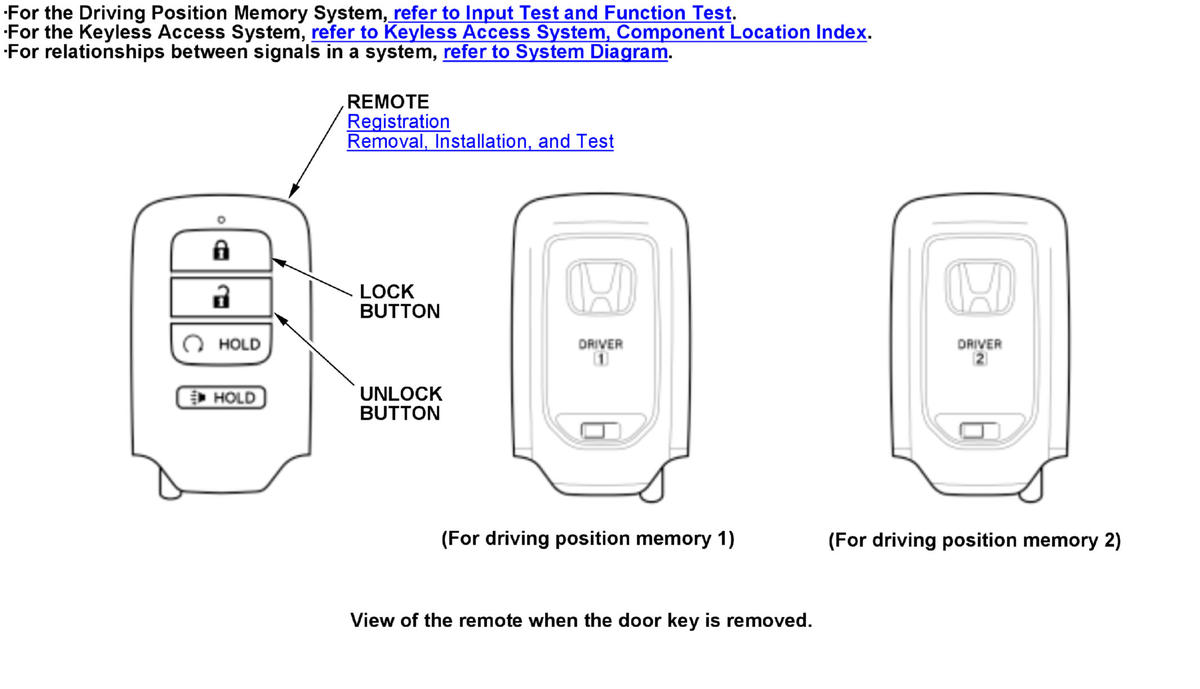

Courtesy of HONDA, U.S.A., INC.

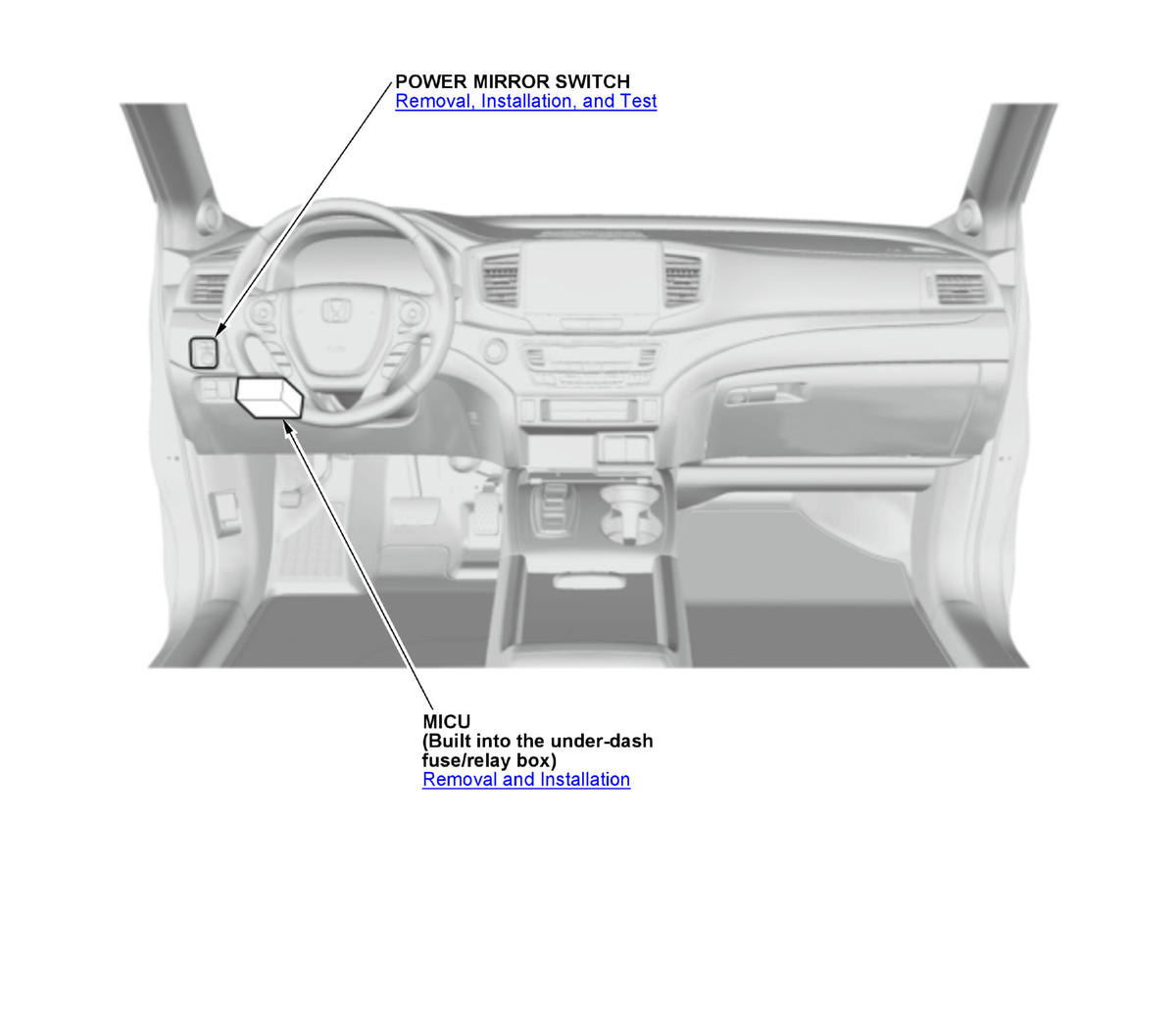

Courtesy of HONDA, U.S.A., INC.

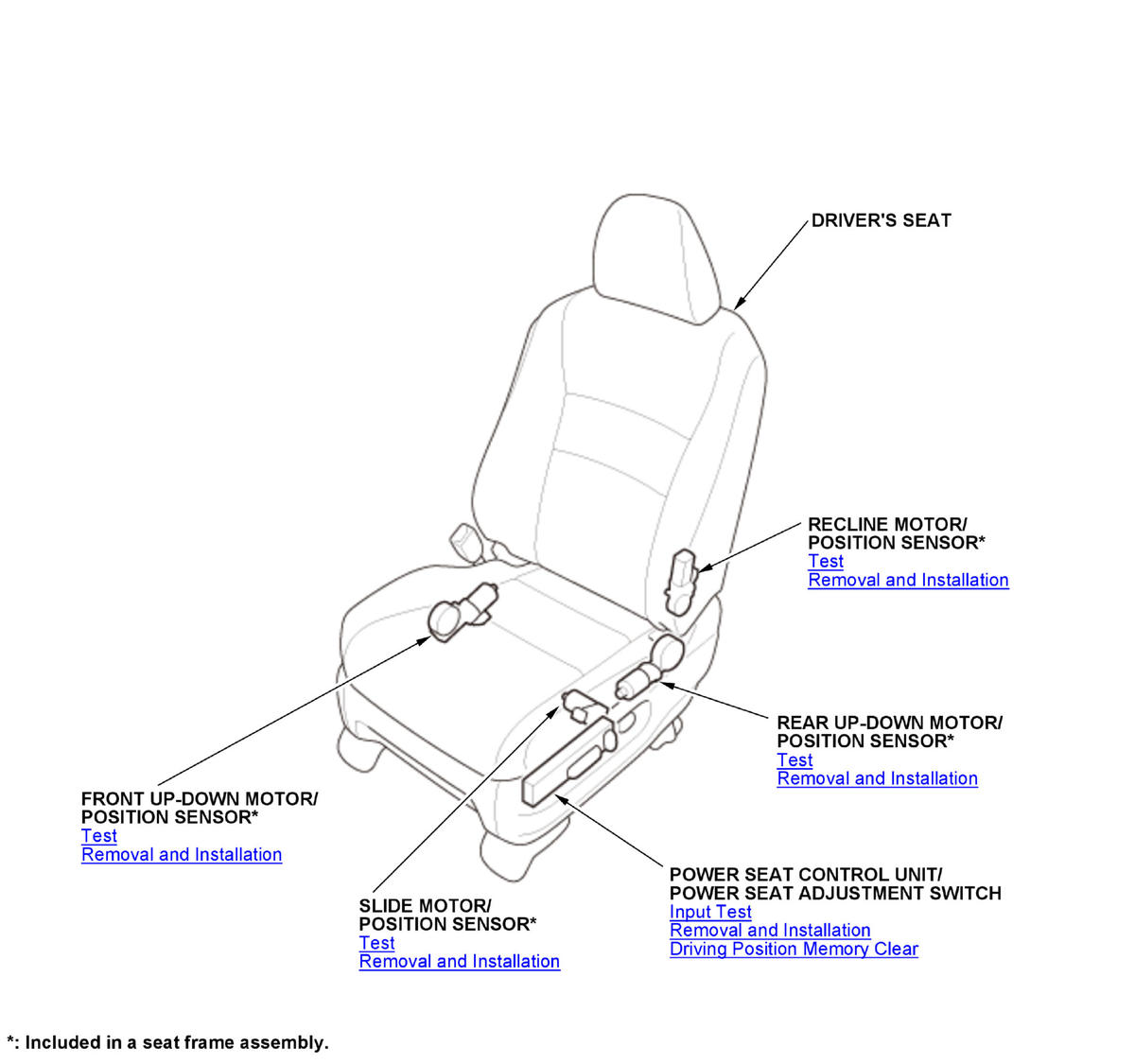

Courtesy of HONDA, U.S.A., INC.

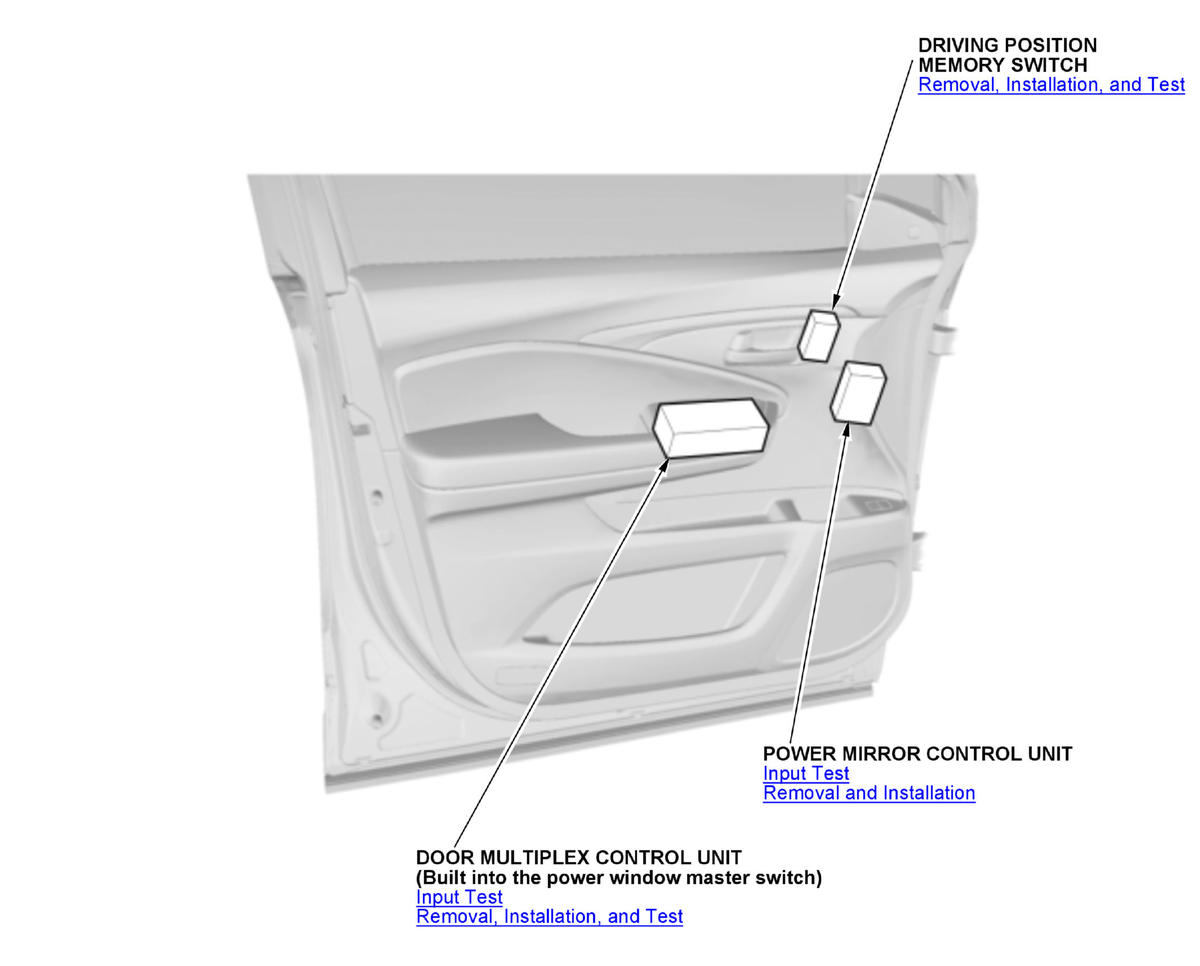

Courtesy of HONDA, U.S.A., INC.

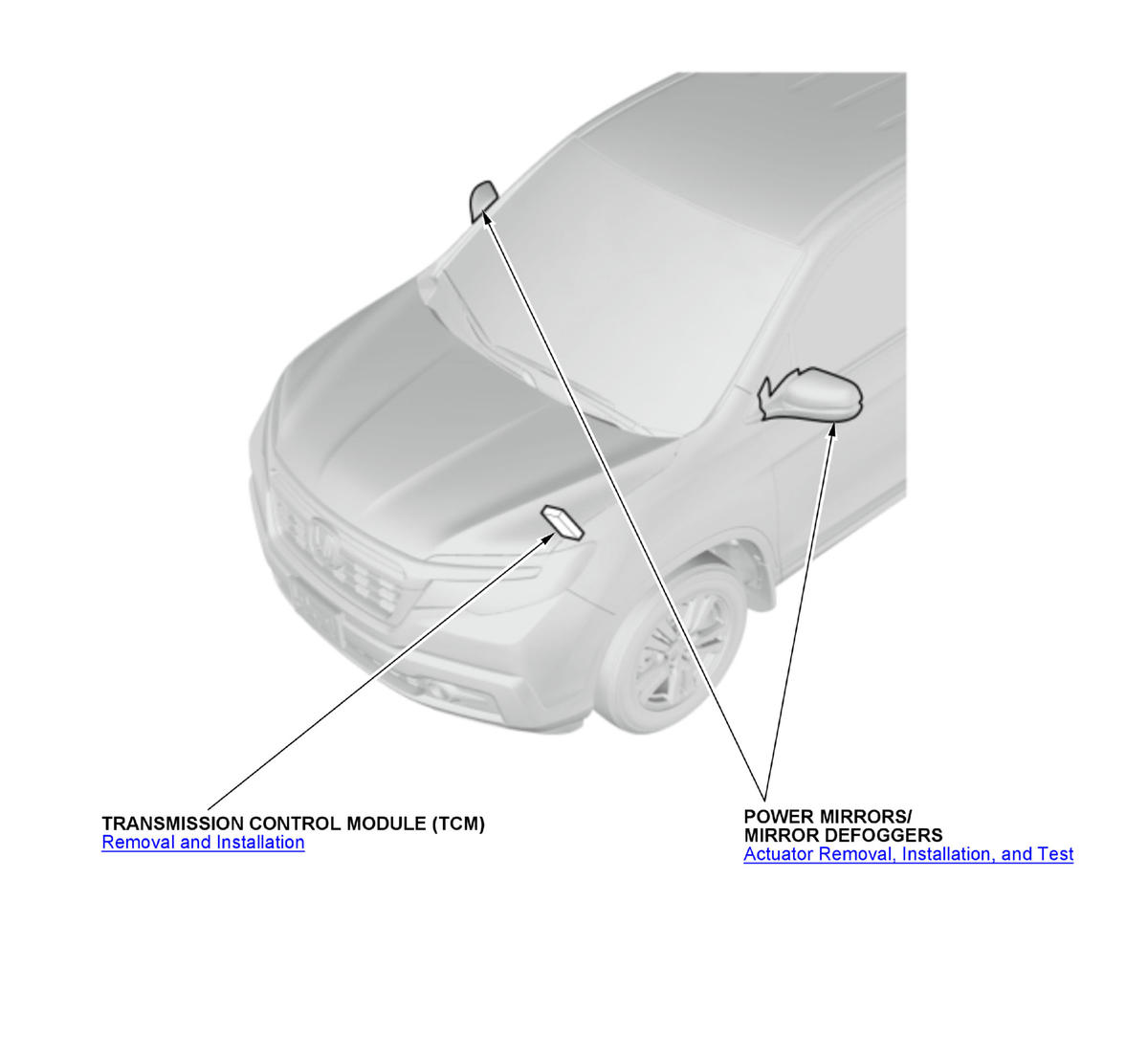

Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
