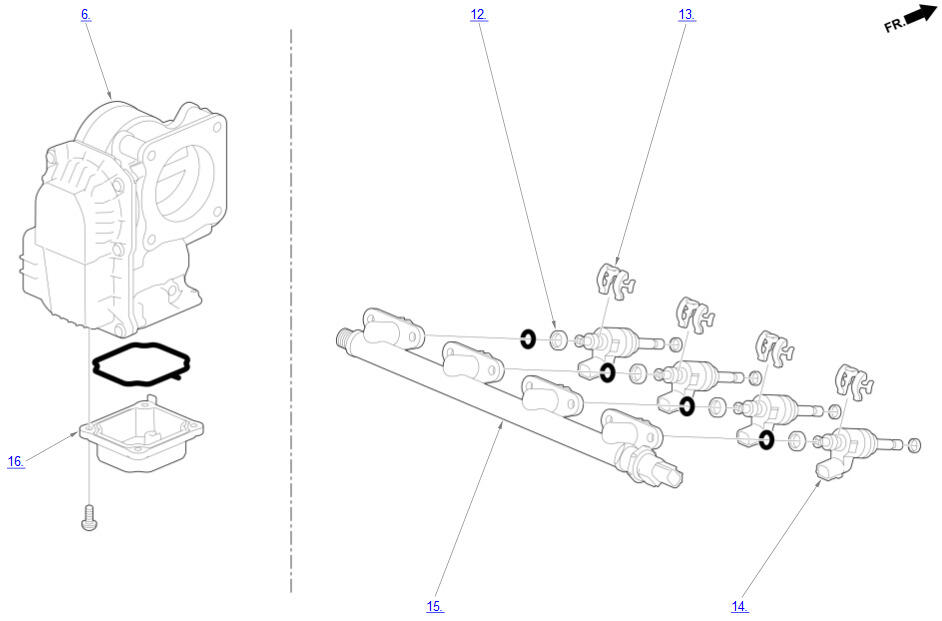

Exploded View: 3
Intake_Manifold_Area (1.5L_Engine) Components
| Component Name | Callout |
|---|---|
| Quick-Connect Fitting Cover | 1 |
| Fuel Hose Cover | 2 |
| Fuel Feed Hose | 3 |
| Manifold Absolute Pressure (MAP) Sensor | 4 |
| Turbocharger Bypass Control Solenoid Valve | 5 |
| Throttle Body | 6 |
| PCV Hose | 7 |
| Intake Manifold | 8 |
| Fuel Rail/Injector | 9 |
| Fuel Rail Bracket | 10 |
| Fuel Rail Insulator | 11 |
| Back-Up Ring | 12 |
| Injector Clip | 13 |
| Injector | 14 |
| Fuel Rail | 15 |
| Throttle Body Lower Case | 16 |
