Torque Specifications (KA/KC): Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 Honda HR-V, 2020 Honda HR-V, 2019 Honda HR-V, 2018 Honda HR-V, and 2017 Honda HR-V. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Refer to the appropriate portion of the service information for the precautions and complete procedures.
- Refer to the appropriate portion of the service information for the bolts/nuts not indicated here.
-
- -
1: Parts to be tightened in a particular order.
- -
2: Follow the appropriate service information procedures closely for torque, sequence, and special steps.
- -
- Power tools must be used appropriately.
-
- -
Follow instructions and precautions carefully per the tool's manufacturer.
- -
Do not use power tools for tightening. Only use them during removals of fasteners.
- -
- When using some special tools or crowfoot-type wrenches, the torque value changes due to the added leverage. The actual torque applied will be greater than the torque reading shown.
-
- -
The torque specification given is the actual torque, not the reading on the torque wrench.
- -

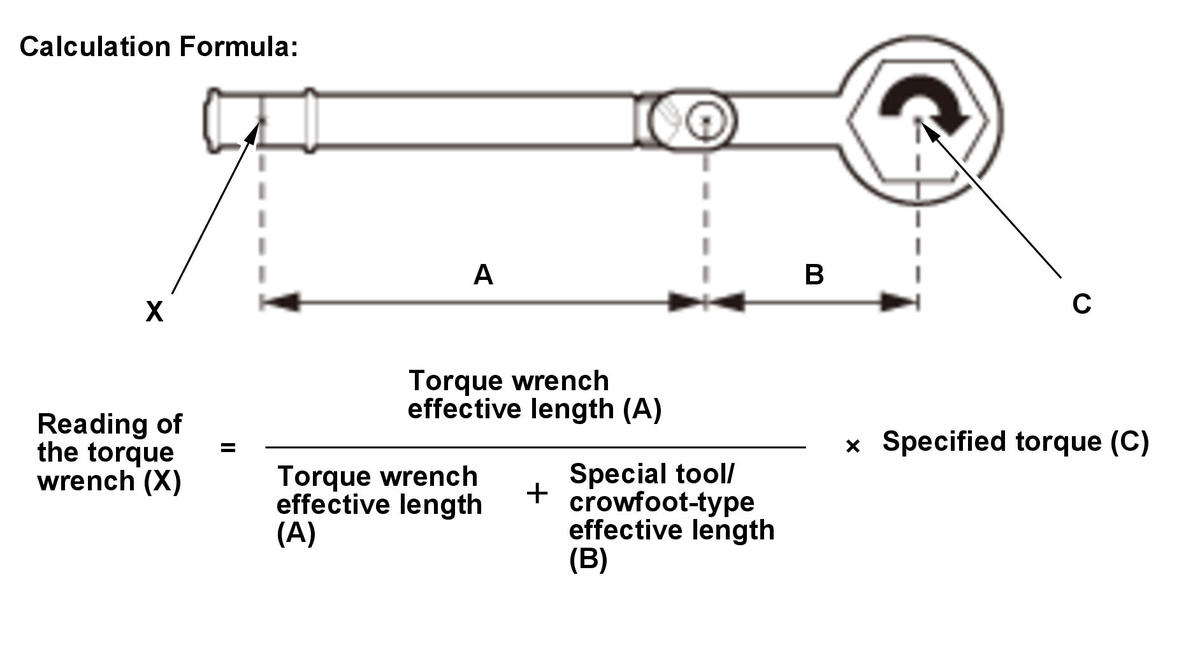

To compensate for this additional leverage, use the formula below to calculate the torque value reading on the torque wrench.
- -
Always use the special tool or crowfoot-type wrench in a straight line with the torque wrench, or you will apply improper torque.
- -
