Removal and Installation
WARNING:
Flammable - Keep Fire Away
How to use this service information .
NOTE:
Refer to the Fuel and Emissions Systems Service Precautions before doing the procedure.
NOTE:
Where icon is shown, for further information see below.
| Detailed information, notes, and precautions |
| Detailed information, notes, and precautions |
- Fuel Pressure - Relieve - Refer to: Fuel Pressure Test () or Fuel Pressure Relieving ()
- 12 Volt Battery Terminal - Disconnect

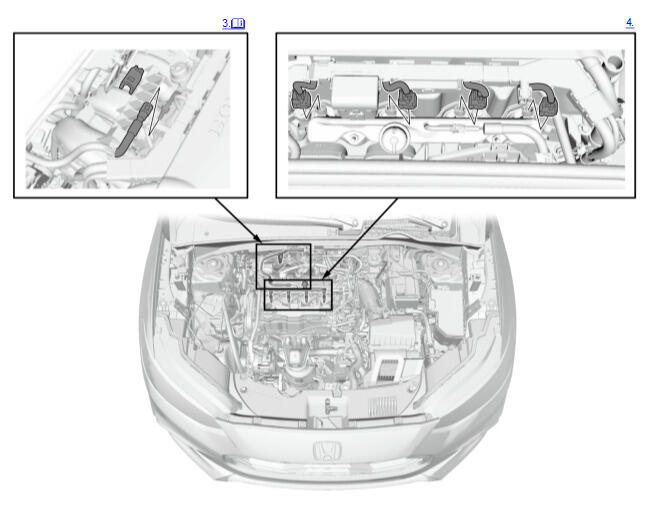

- Fuel Line/Quick-Connect Fitting - Disconnect
NOTICE:
Refer to the Fuel Line/Quick-Connect Fitting Precautions before doing the procedure.
- Connector - Disconnect

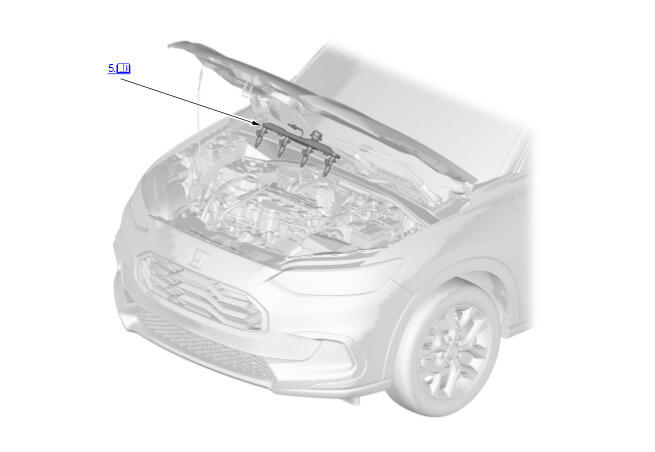

- Fuel Rail/Injector - Remove
- All Removed Parts - Install
- Install the parts in the reverse order of removal.
- 12 Volt Battery Terminal - Reconnect
- Fuel Leak - Check
