DTC B1032 (Body Control Module)
›
Inspection Outline
Inspection Outline

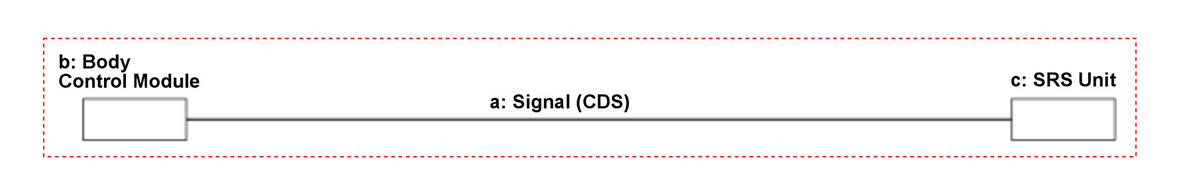

The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
External Circuit
CDS Circuit Inspection
b
Body Control Module
Body Control Module Inspection
c
SRS unit
SRS Unit Inspection
Courtesy of HONDA, U.S.A., INC.
