DTC B1042 (Body Control Module)
›
Inspection Outline
Inspection Outline

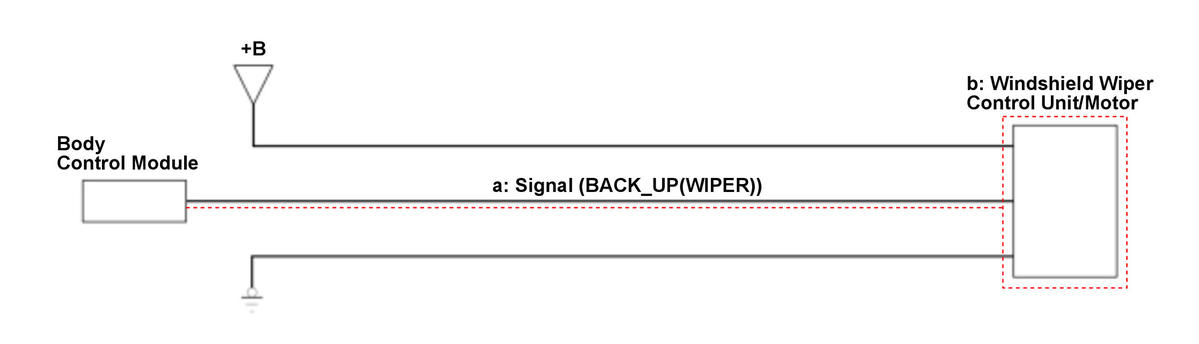

The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
External Circuit
BACK_UP(WIPER) Circuit Inspection
b
Windshield Wiper Control Unit/Motor
Courtesy of HONDA, U.S.A., INC.
