DTC B1659 (Keyless Access Control Unit)
›
Inspection Outline

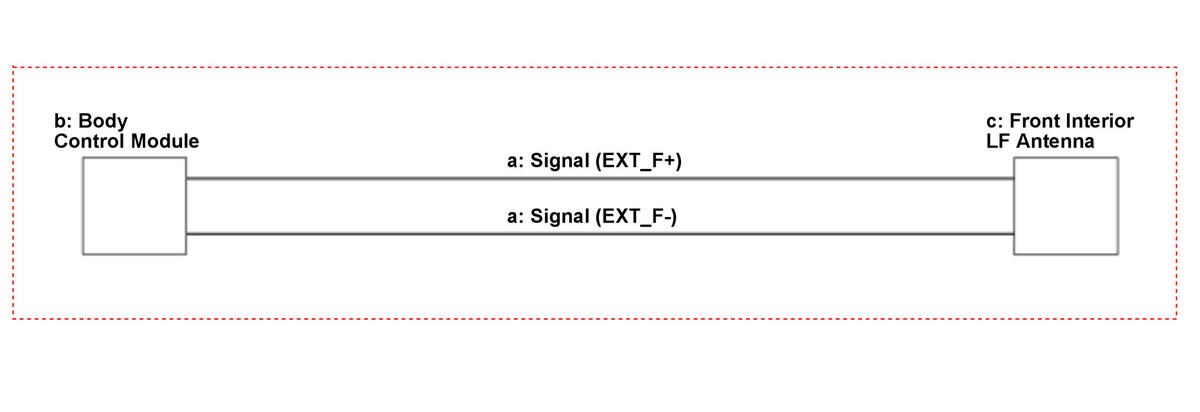

Inspection Outline
The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
External Circuit
EXT_F+, EXT_F- Shorted Wire Inspection
b
Body Control Module
Body Control Module Inspection
c
Front Interior LF Antenna
Front Interior LF Antenna Inspection
