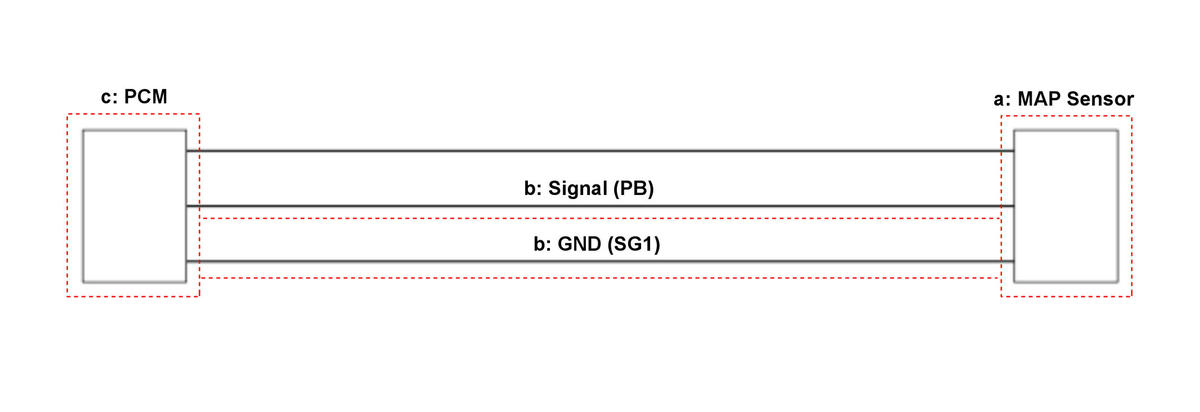

Inspection Outline

The components to be tested are indicated by a dotted line.

GHH576792

Courtesy of HONDA, U.S.A., INC.

Inspection Items		Work Items
a	MAP Sensor	MAP Sensor Inspection
b	External Circuit	PB, SG1 Open Wire Inspection
c	PCM	PCM Inspection
