DTC P0642: Inspection

VCC1, VCC2, VCC3, VCC4 Shorted Wire Inspection

NOTICE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

• Preparation
  • PCM connector B (72P): disconnected
  • PCM connector E (114P): disconnected
  • CKP sensor connector (3P): disconnected
  • MAP sensor connector (3P): disconnected
  • Fuel rail pressure sensor connector (3P): disconnected
  • Engine oil pressure sensor connector (3P): disconnected
  • Throttle body connector (6P): disconnected
  • APP sensor connector (6P): disconnected
• Procedure
  • Perform the inspection according to the following chart.

    Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.

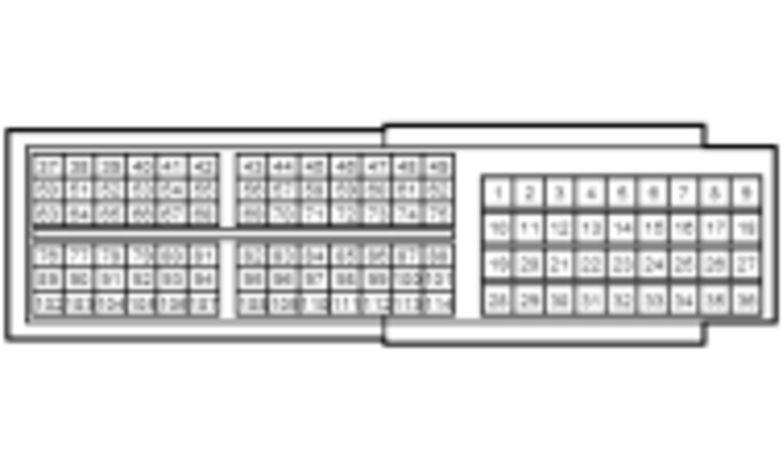

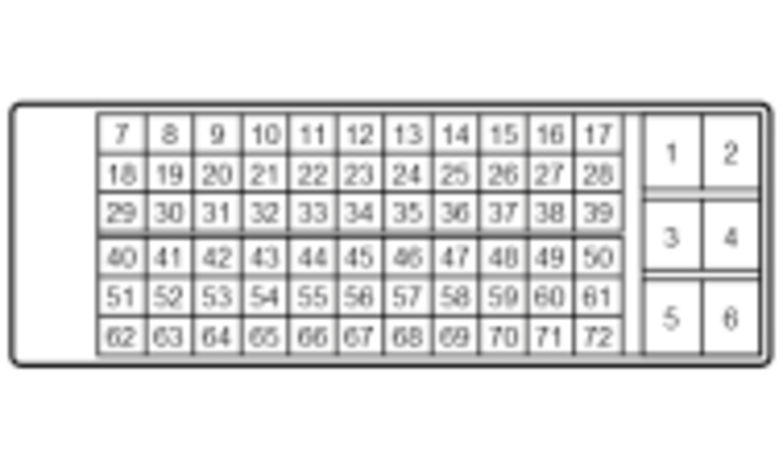

			(Disconnected) PCM connector B (72P) female terminals	(Disconnected) PCM connector E (114P) female terminals

		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	VCC1 shorted to ground inspection	OFF			There is more than 1 MΩ
	VCC2 shorted to ground inspection	OFF			There is more than 1 MΩ
	VCC3 shorted to ground inspection	OFF			There is more than 1 MΩ
	VCC4 shorted to ground inspection	OFF			There is more than 1 MΩ

Results

• If abnormal, there is a problem in the circuit.

PCM Inspection

Preconditions

NOTE:  This procedure can be done before any other inspections are completed because this test procedure includes all of the following inspection items. However, if this test fails, it will be necessary to continue with each inspection item individually to determine which item failed.

• External circuit is normal

Test Procedure

• Preparation
  • CKP sensor connector (3P): disconnected
  • MAP sensor connector (3P): disconnected
  • Fuel rail pressure sensor connector (3P): disconnected
  • Engine oil pressure sensor connector (3P): disconnected
  • Throttle body connector (6P): disconnected
  • APP sensor connector (6P): disconnected

• Procedure
  • Perform the confirmation procedure.

• Normal Conditions
  • DTC P0642 is not indicated.

Results

• If it is abnormal, there is a problem with the PCM.

Components Connected to VCC1, VCC2, VCC3, VCC1 Circuit Inspection

Preconditions

NOTE:  This procedure can be done before any other inspections are completed because this test procedure includes all of the following inspection items. However, if this test fails, it will be necessary to continue with each inspection item individually to determine which item failed.

• External circuit is normal
• PCM is normal

Test Procedure

• Preparation
  • CKP sensor connector (3P): disconnected
  • MAP sensor connector (3P): disconnected
  • Fuel rail pressure sensor connector (3P): disconnected
  • Engine oil pressure sensor connector (3P): disconnected
  • Throttle body connector (6P): disconnected
  • APP sensor connector (6P): disconnected

• Procedure
  • Check for Pending or Confirmed DTCs with the HDS while reconnecting these parts, one at a time:

    * CKP sensor

    * MAP sensor

    * Fuel rail pressure sensor

    * Engine oil pressure sensor

    * Throttle body

    * APP sensor

• Normal Conditions
  • DTC P0642 is not indicated.

Results

• If it is abnormal, there is a problem with the component that caused the DTC when it was reconnected.
