Exploded View

For Replacement of components listed below, see Repair Procedure

Fig 1: Drive Belt Routing & Pulley Bolt

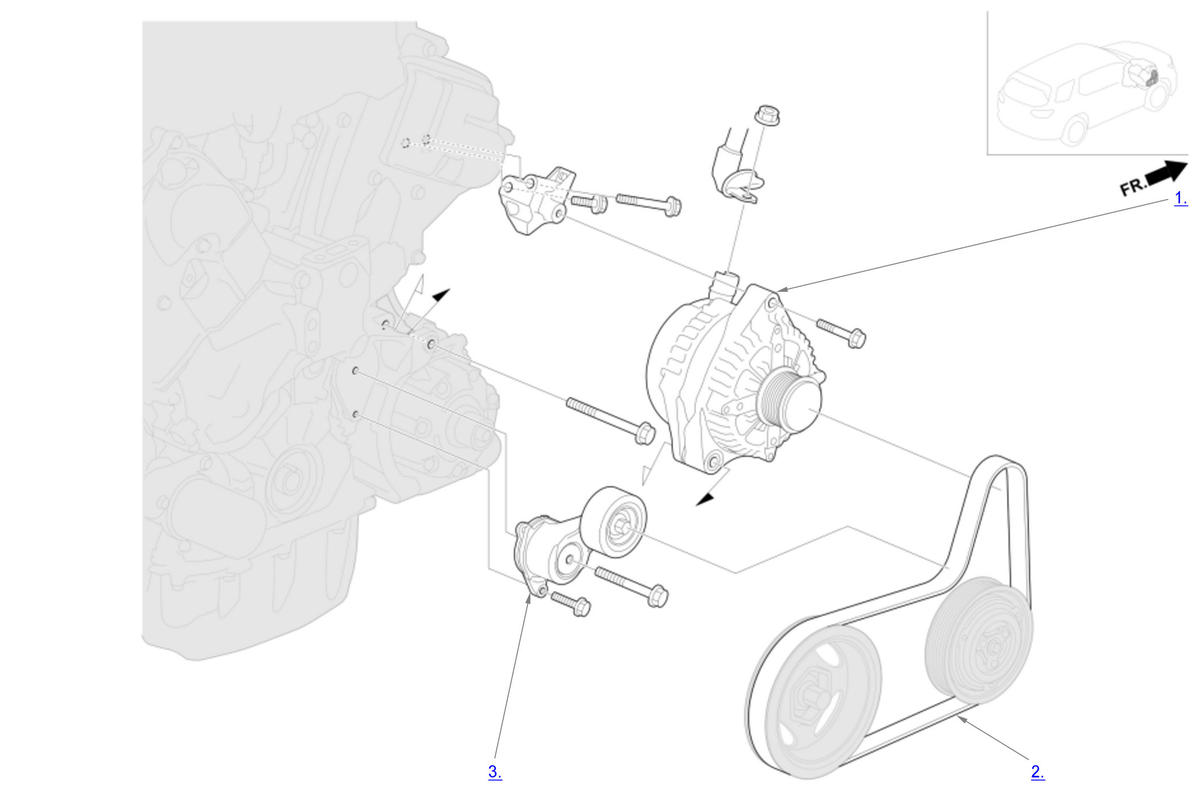

GHH573725Courtesy of HONDA, U.S.A., INC.

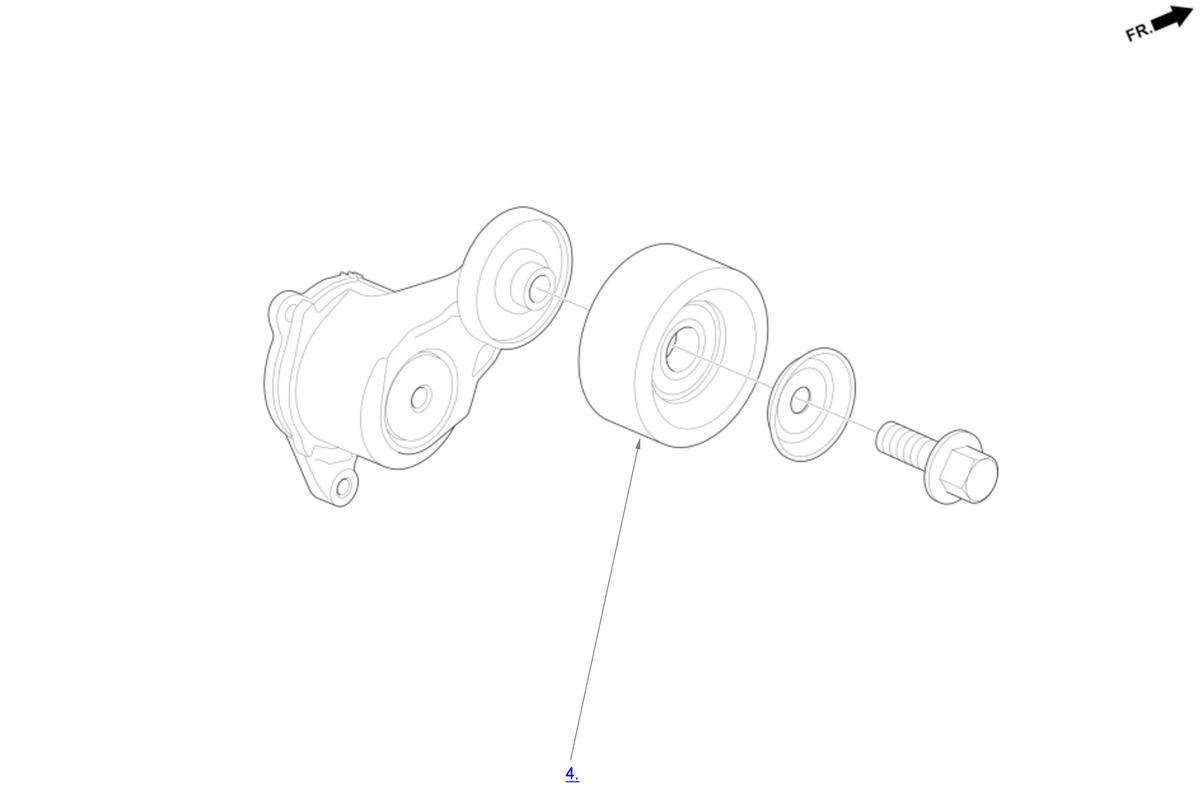

GHH573726Courtesy of HONDA, U.S.A., INC.
Alternator Area

Component Name Callout
Alternator 1
Drive Belt 2
Drive Belt Auto-Tensioner 3
Drive Belt Auto-Tensioner Pulley 4
