1. VSA OFF Switch - Test

   Preconditions

   • VSA OFF Switch Removed

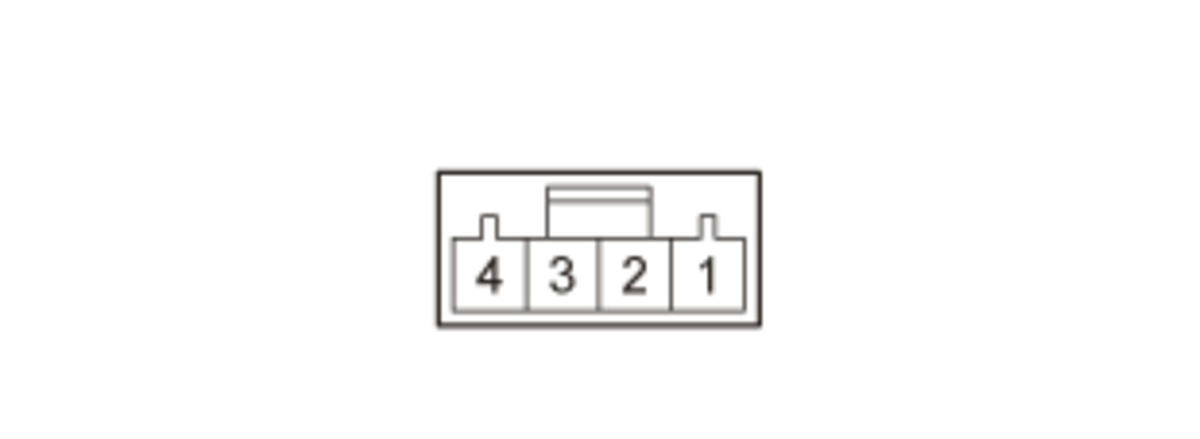

   Figure 1 (VSA OFF switch type)

   Courtesy of HONDA, U.S.A., INC.

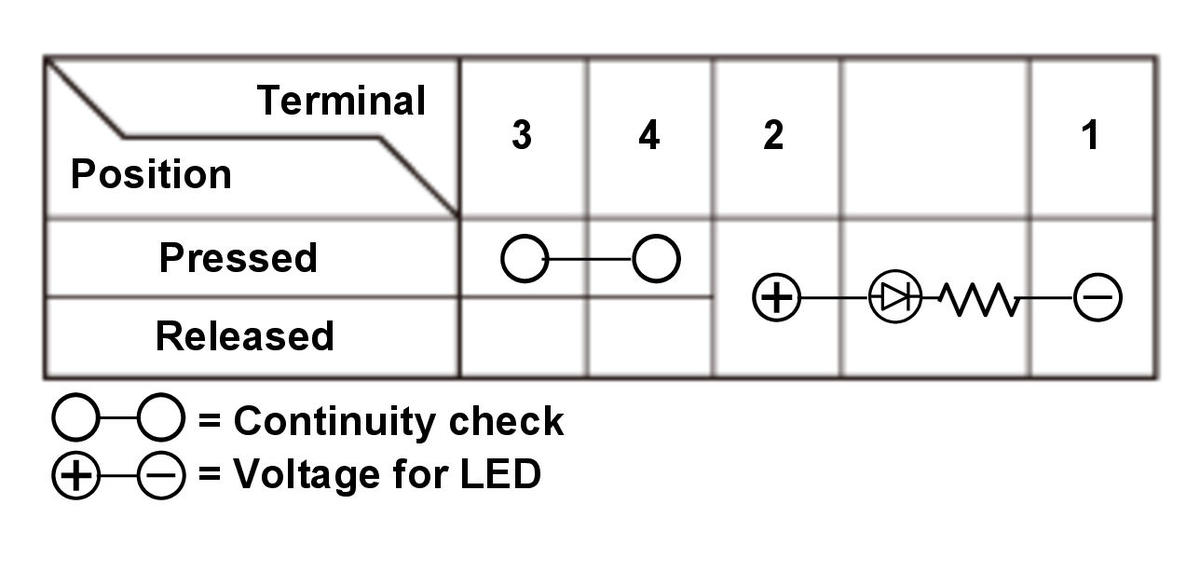

   Figure 2 (VSA OFF switch type)

   Courtesy of HONDA, U.S.A., INC.

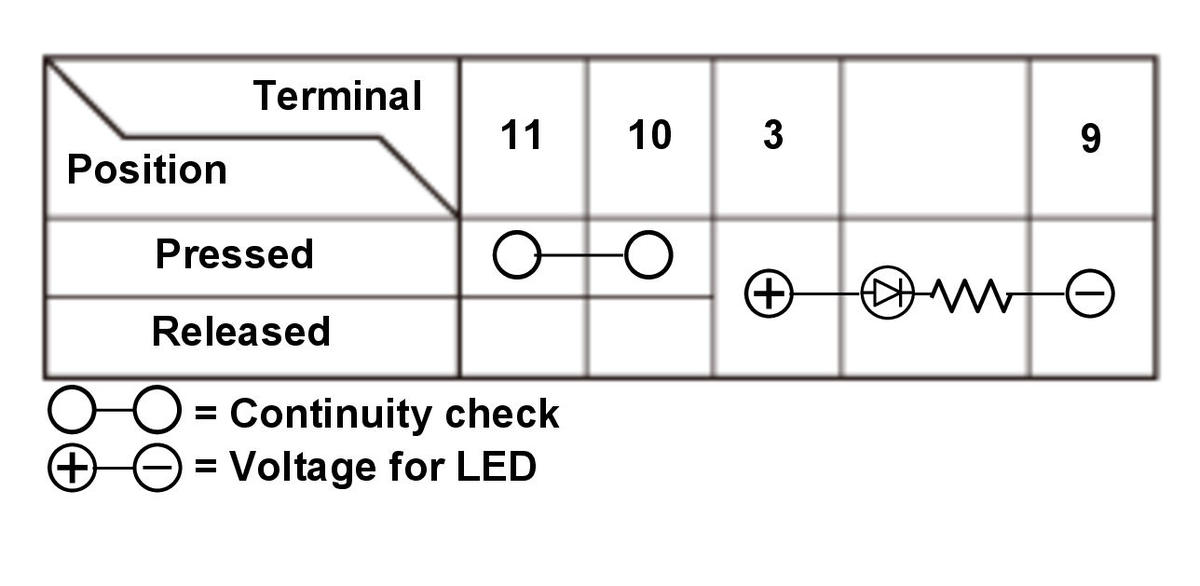

   Figure 3 (VSA OFF/heated windshield wiper area switch type)

   Courtesy of HONDA, U.S.A., INC.

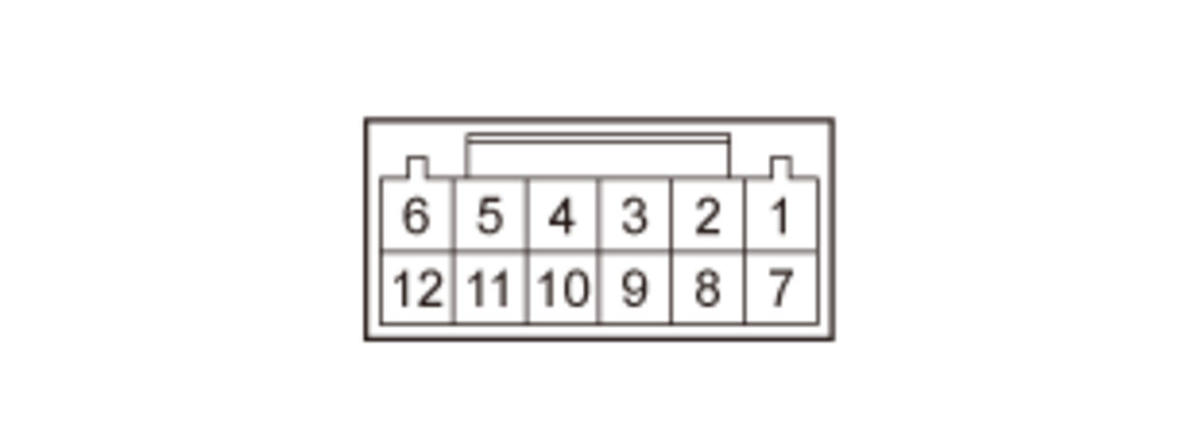

   Figure 4 (VSA OFF/heated windshield wiper area switch type)

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   • Check the switch according to the table. (Figure 1, 2, 3, and 4)

     NOTICE:

     Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

     NOTE:  When an LED is located between terminals, check if the LED lights by connecting power and ground to the LED.

   Result

   • If the result is not as specified, replace the VSA OFF switch.
